JST-SH 2-Pin Right-Angle Connector - 1mm Pitch
· MPN: PRT-25271
This compact 2-position JST-SH connector is a surface-mount part for adding a small cable connection to your PCB.It uses a right-angle layout, helping route ...
Get notified when back in stock

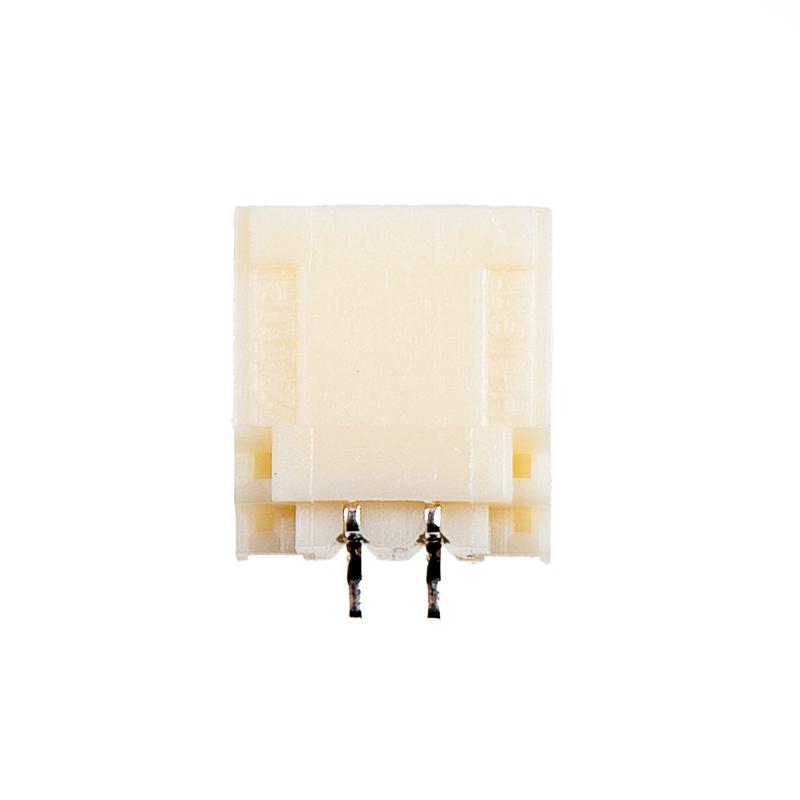

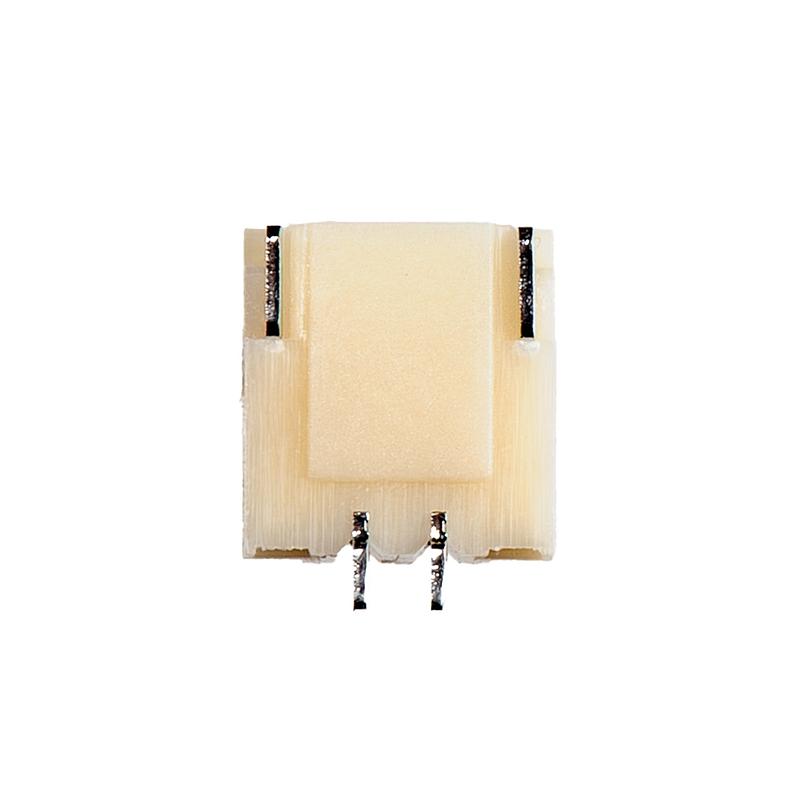

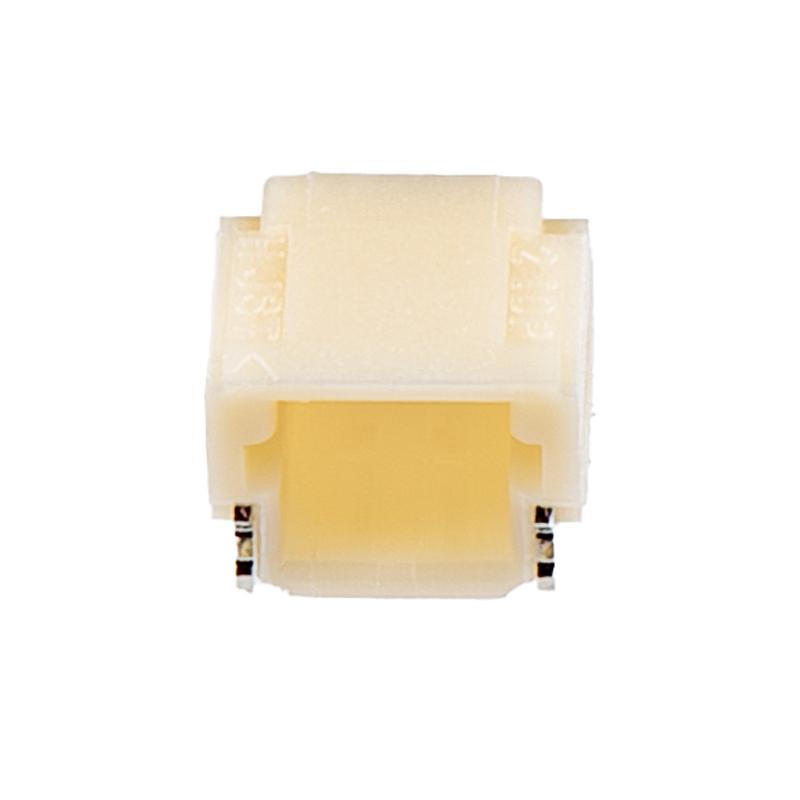

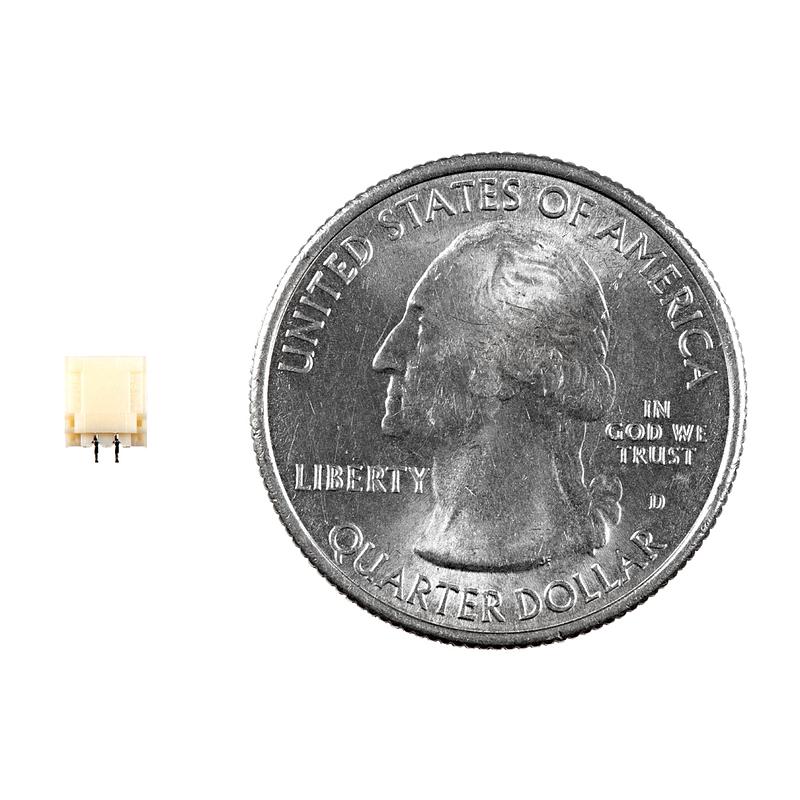

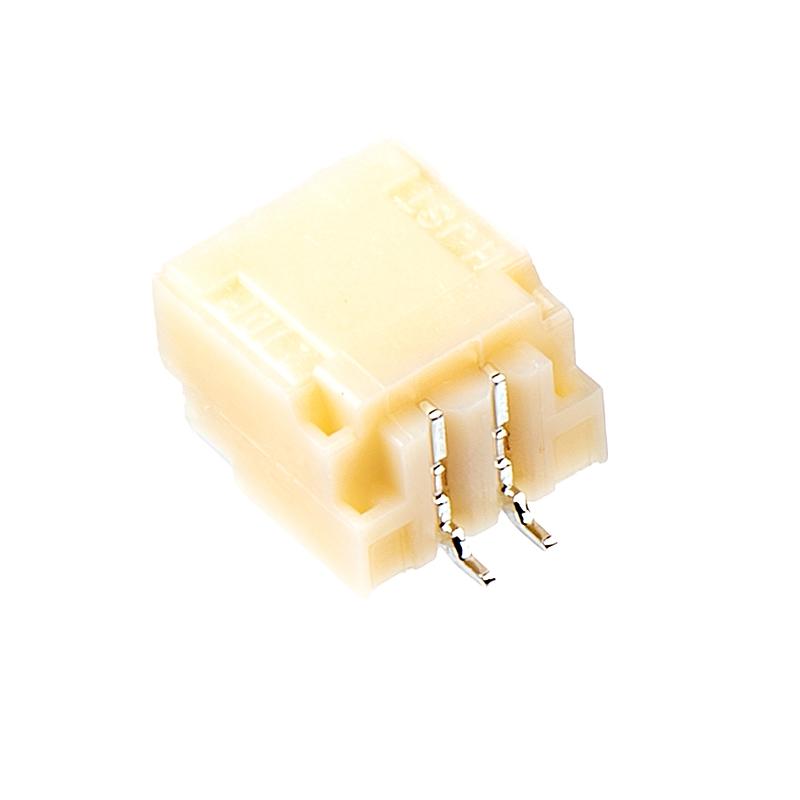

This compact 2-position JST-SH connector is a surface-mount part for adding a small cable connection to your PCB.
It uses a right-angle layout, helping route the mating cable parallel to the board where vertical clearance is limited. The 1mm pitch suits tight electronics builds and compact maker projects.
A datasheet is available from the manufacturer for footprint and mechanical reference when designing it into your board.
Specifications:
- Number of positions: 2
- Pitch - Mating: 1mm (0.039")
- Mounting Type: Surface Mount, Right Angle
- Contact Finish - Mating: Tin
- Contact Finish - Post: Tin
- Contact Material: Copper
- Insulation Material: Polyamide (PA), Nylon
- Operating Temperature: -25°C ~ 85°C
- Material Flammability Rating: UL94 V-0
- Current Rating: 1A
- Voltage Rating: 50V
Useful for custom PCBs, repairs, and compact interconnect designs using JST-SH 2-pin cabling.
Jargon buster
Plain-language definitions for the technical terms used above.
- PCB
- A printed circuit board (PCB) is a board, usually rigid, with etched copper tracks that connect electronic components together without loose wiring. Components are mounted on the board and signals route between them through the copper layout.
