JST Right-Angle SMD Connector - 2 Pin, Black
· MPN: PRT-11641

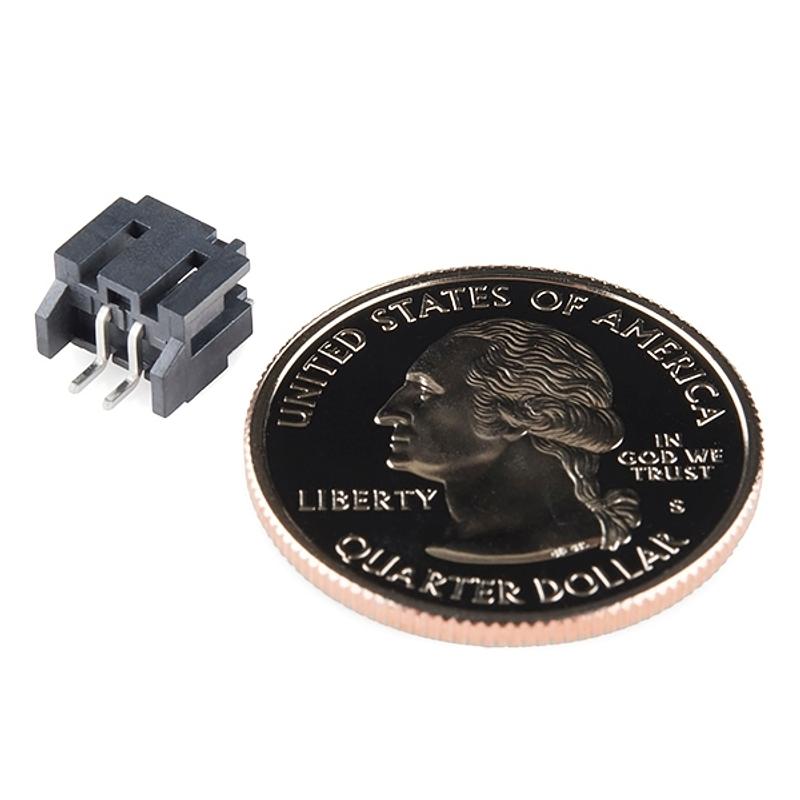

This compact two-pin connector is designed for surface-mount PCB layouts where you need a low-profile, right-angle connection. Its small footprint makes it w...
Get notified when back in stock
This compact two-pin connector is designed for surface-mount PCB layouts where you need a low-profile, right-angle connection. Its small footprint makes it well suited to tight electronics builds and embedded projects.
The connector has a solid locking feel and is noted for its high current rating for its size. SparkFun commonly uses these as battery connectors, making them a handy choice for portable projects and custom power connections.
Documentation is available from the supplier, including a datasheet reference.
This is a useful part for makers designing PCBs that need a compact, board-mounted two-pin battery or power connector.
