Interface Cable - SMA Female to SMA Male (25cm)
This is a basic SMA (Sub-Miniature A) male to female connector cable. Each cable is 25cm (9.8") long and has a 50Ω impedance that can handle frequencies u...

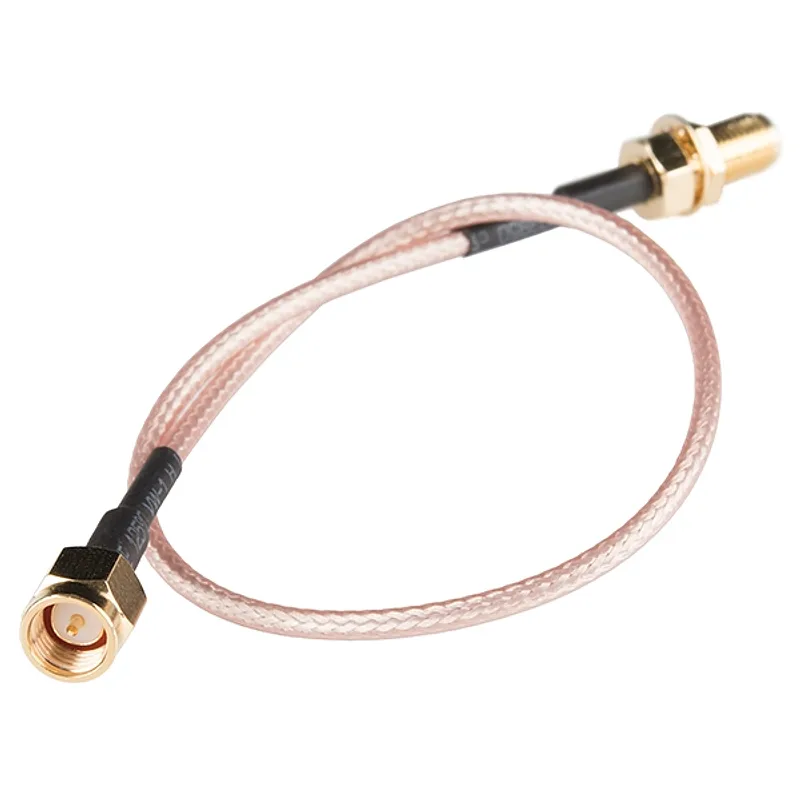

This is a basic SMA (Sub-Miniature A) male to female connector cable. Each cable is 25cm (9.8") long and has a 50Ω impedance that can handle frequencies up to 17 GHz. The SMA connectors at each end are small enough for most consumer GPS, cellular, and other RF applications and they use a threaded housing to create strong mechanical connections.
These work well for mounting an antenna to the outside of an enclosure, while keeping the electronics neatly inside.
Note: If you are looking for an RPSMA interface cable, it can be found here.
Documents:
Jargon buster
Plain-language definitions for the technical terms used above.
- GPS
- The US satellite navigation system used by GNSS receivers to calculate position and time. Support for GPS is important because it is widely available and often used together with other constellations for more reliable positioning.
- RF
- RF means radio frequency, referring to signals used for wireless communication and other high-frequency electronics. A low-noise, stable power supply is important for RF circuits because power noise can affect signal quality and measurements.
- SMA
- A threaded coaxial connector commonly used for antennas. It matters because you need antennas with matching SMA connectors, or suitable adapters, for the LTE and GNSS antenna ports.
Find this product in
Brands
Interface Cable SMA Female to SMA Male Dimensional Drawing
Mechanical Drawings · 97.5 KB · Click any page to view full size
Supplier page — sparkfun.com
Supplier Description · 408.9 KB · Click any page to view full size
