Interface Cable - SMA Female to SMA Male (25cm)
This is a basic SMA (Sub-Miniature A) male to female connector cable. Each cable is 25cm (9.8") long and has a 50Ω impedance that can handle frequencies u...
Get notified when back in stock

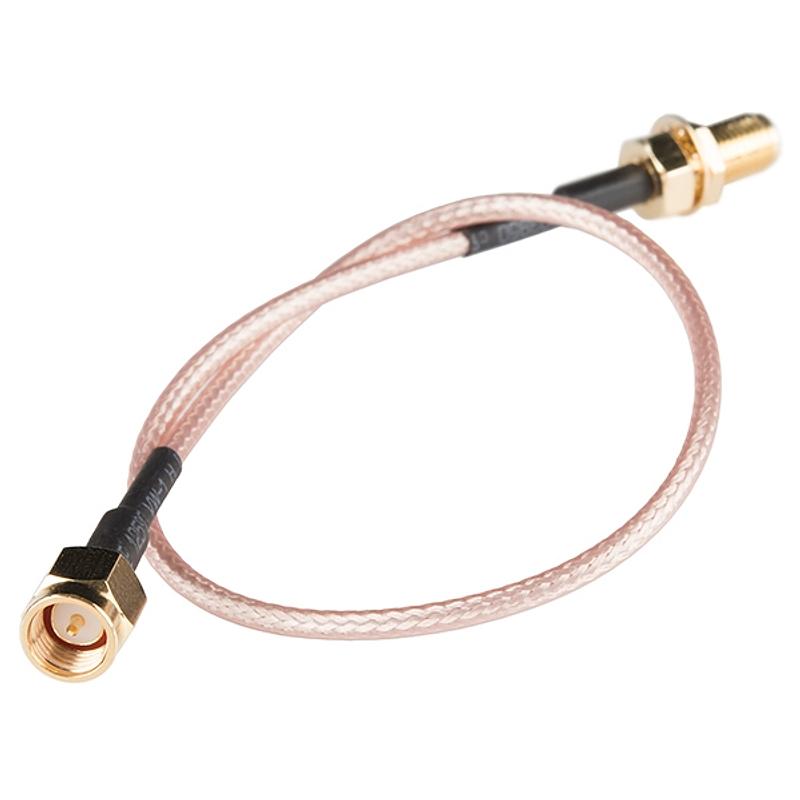

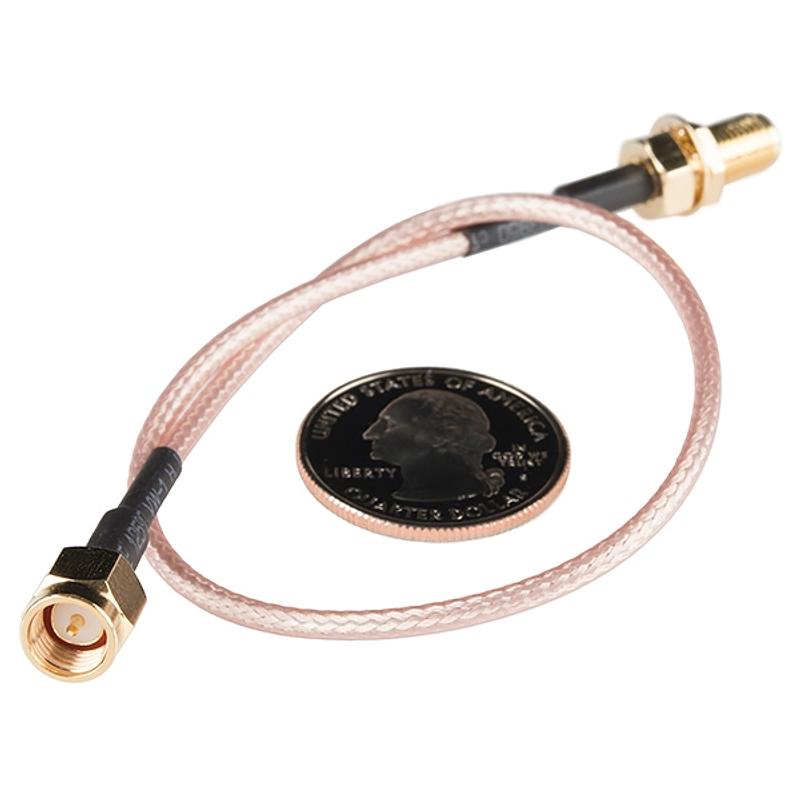

This is a basic SMA (Sub-Miniature A) male to female connector cable. Each cable is 25cm (9.8") long and has a 50Ω impedance that can handle frequencies up to 17 GHz. The SMA connectors at each end are small enough for most consumer GPS, cellular, and other RF applications and they use a threaded housing to create strong mechanical connections.
These work well for mounting an antenna to the outside of an enclosure, while keeping the electronics neatly inside.
Note: If you are looking for an RPSMA interface cable, it can be found here.
Documents:
Jargon buster
Plain-language definitions for the technical terms used above.
- GPS
- The US satellite navigation system used by GNSS receivers to calculate position and time. Support for GPS is important because it is widely available and often used together with other constellations for more reliable positioning.
- Impedance
- Impedance is the total opposition a component or circuit presents to alternating current, measured in ohms, combining resistance with frequency-dependent reactance. It appears in many contexts, such as matching a speaker's impedance (for example 4 ohm or 8 ohm) to an amplifier or the input and output impedance of signal circuits, and a correct match helps avoid weak signals, distortion or damage.
- RF
- RF means radio frequency, referring to signals used for wireless communication and other high-frequency electronics. A low-noise, stable power supply is important for RF circuits because power noise can affect signal quality and measurements.
- SMA
- SMA is a small threaded coaxial (RF) connector widely used to attach antennas and other radio-frequency cables. A device with SMA antenna ports needs antennas or pigtails with matching SMA connectors, or a suitable adapter, to connect to them.
