Molex Molded PCB Mount Helix GPS Antenna

Name: Molex Molded PCB Mount Helix GPS Antenna
Brand: SparkFun
SKU: SF-GPS-29206
Price: 3.85 AUD
Availability: InStock

· MPN: GPS-29206

Wireless & Connectivity

$3.85 |

In stock at supplier

No reviews yet

This compact Molex molded GPS antenna is a surface-mount option for adding satellite reception to space-constrained PCB designs. It measures just 3 x 5 x 4mm...

Add to Wishlist

Compare

Estimated Delivery

Arrives

Disclaimer

View Markdown

Secure checkout

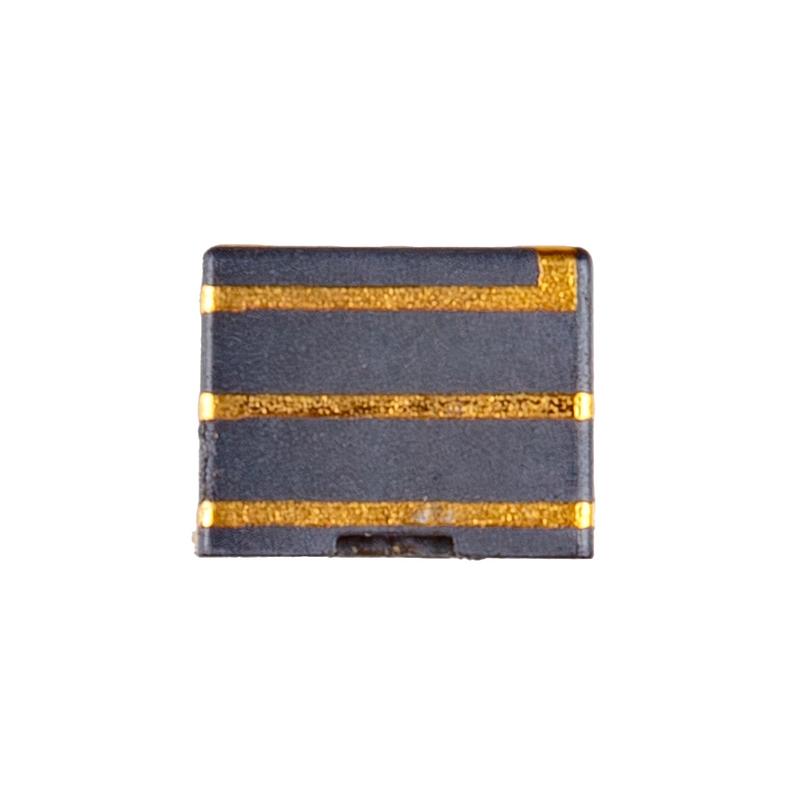

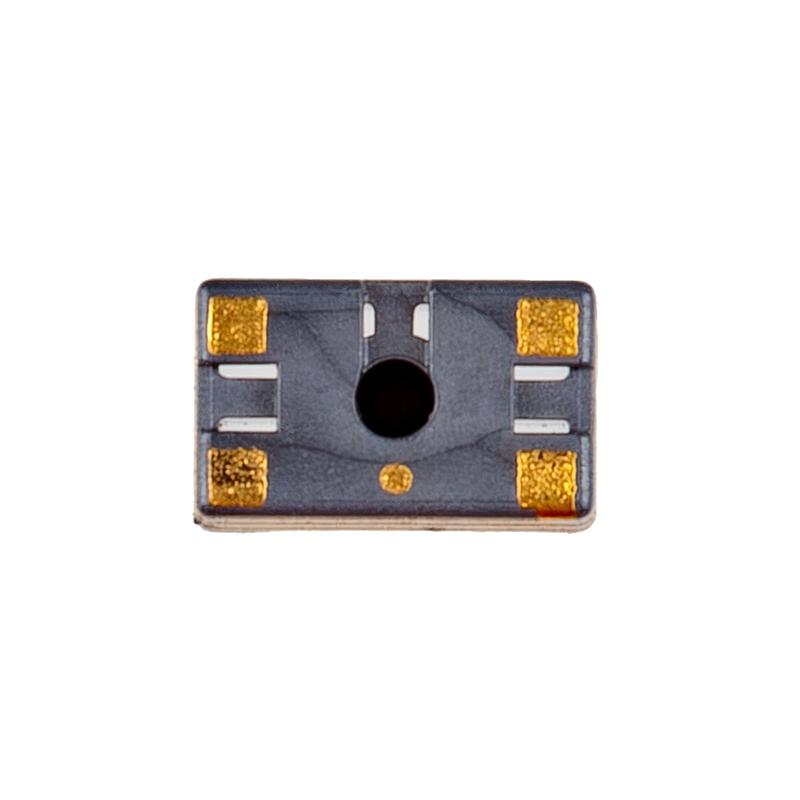

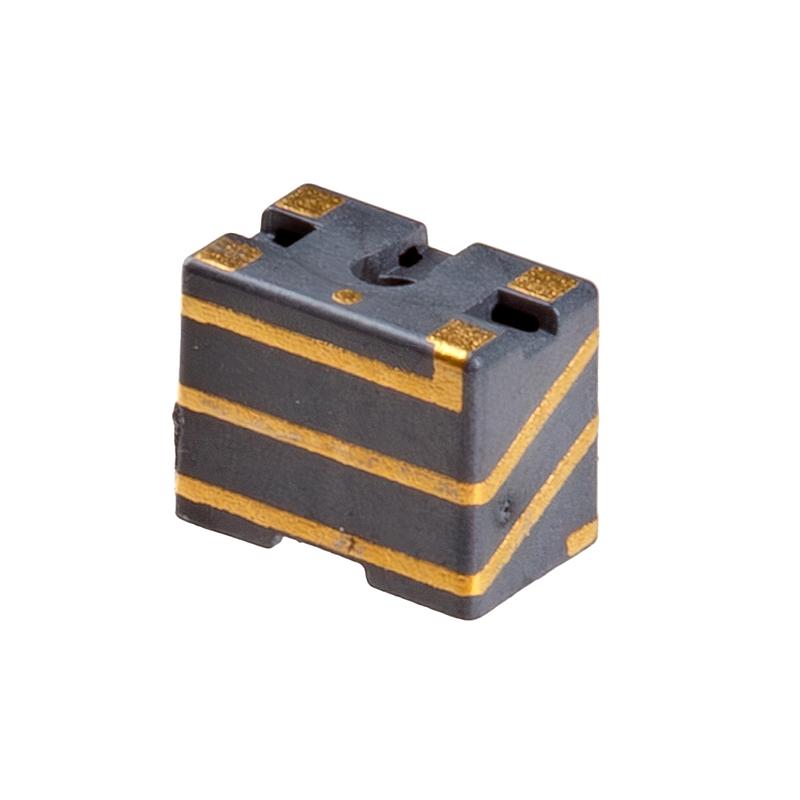

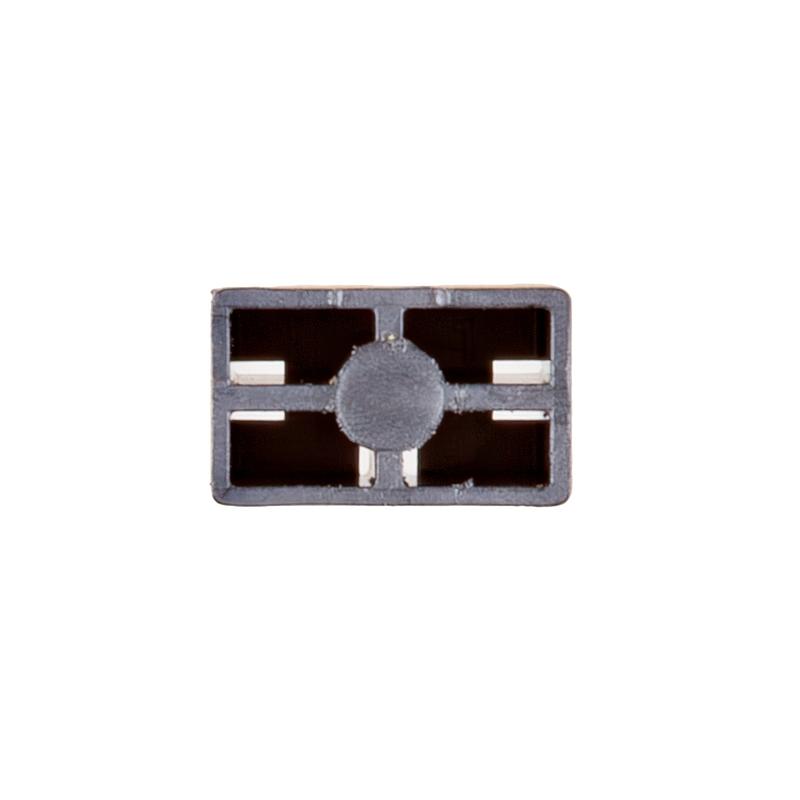

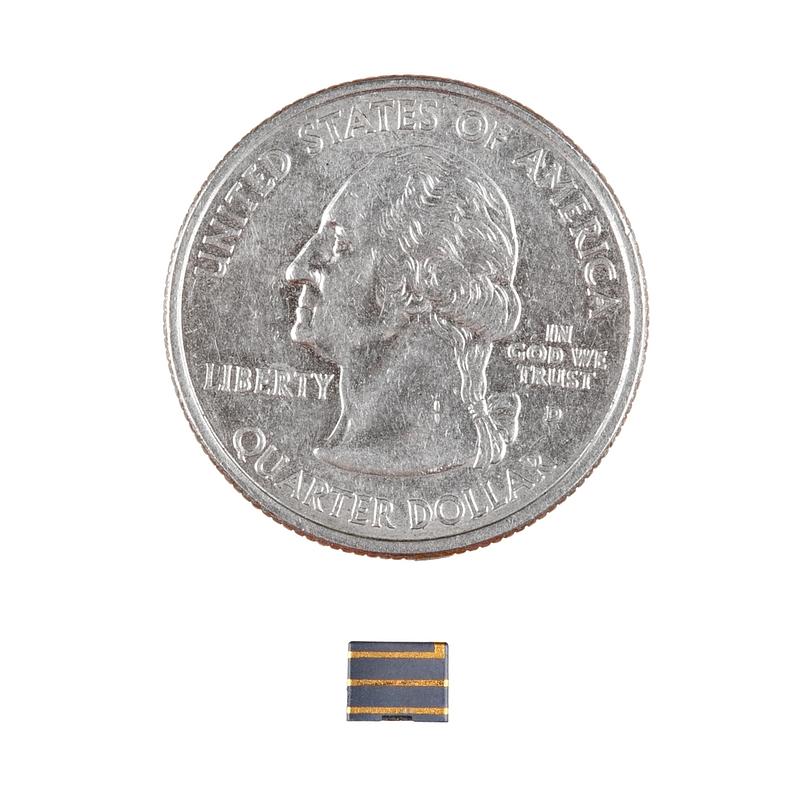

This compact Molex molded GPS antenna is a surface-mount option for adding satellite reception to space-constrained PCB designs. It measures just 3 x 5 x 4mm and is designed for operation across a 1561 - 1602 MHz frequency range.

The antenna is a monopole type made from LDS material, with a 4x6mm PCB clearance requirement. It is suited to designs where a tiny board-mounted GPS antenna is preferred over a cabled or external antenna.

Documentation for this part includes a datasheet and mechanical drawing to help with PCB layout and integration.

Specifications:

Dimensions: 3 x 5 x 4mm
PCB Clearance: 4x6mm
Material: LDS
Antenna Type: Monopole
Frequency Range: 1561 - 1602 MHz
Return Loss: <-8dB
Peak Gain: 1.1dBi
Total Efficiency: >50%
Polarization: Elliptic
Axial Ratio: <6.0
