2x3-pin 2mm PTH Header Pins and Socket for Teensy 4.1 Ethernet
· MPN: PRT-28387
$1.10
|
In stock at supplier
This header pin and socket set is intended for connecting the Ethernet pins on a Teensy 4.1 to a custom circuit board.The socket is designed to be soldered t...
Get notified when back in stock
Estimated Delivery
Arrives
Disclaimer
Secure checkout

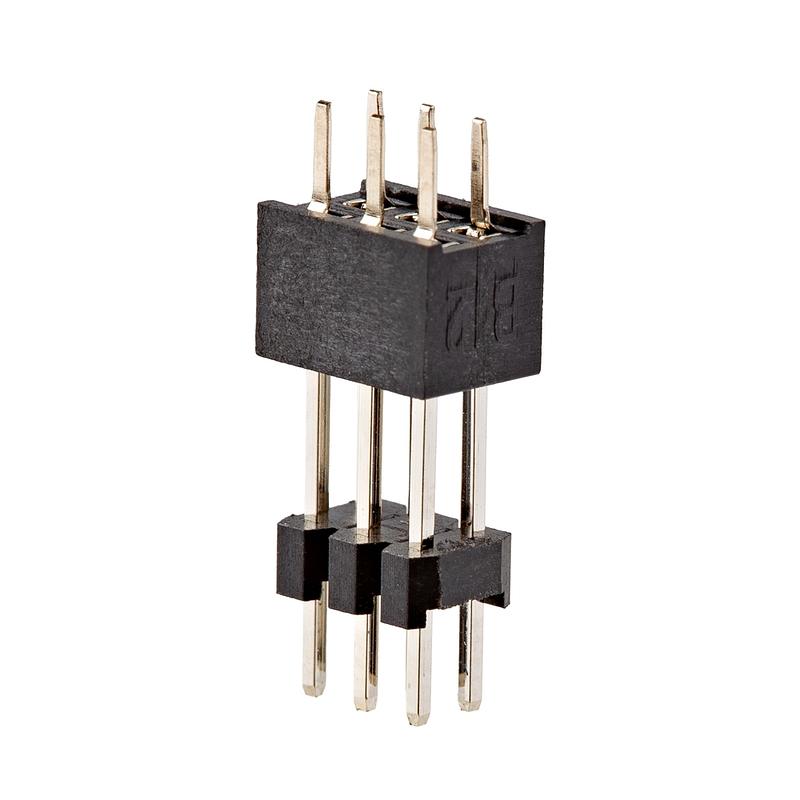

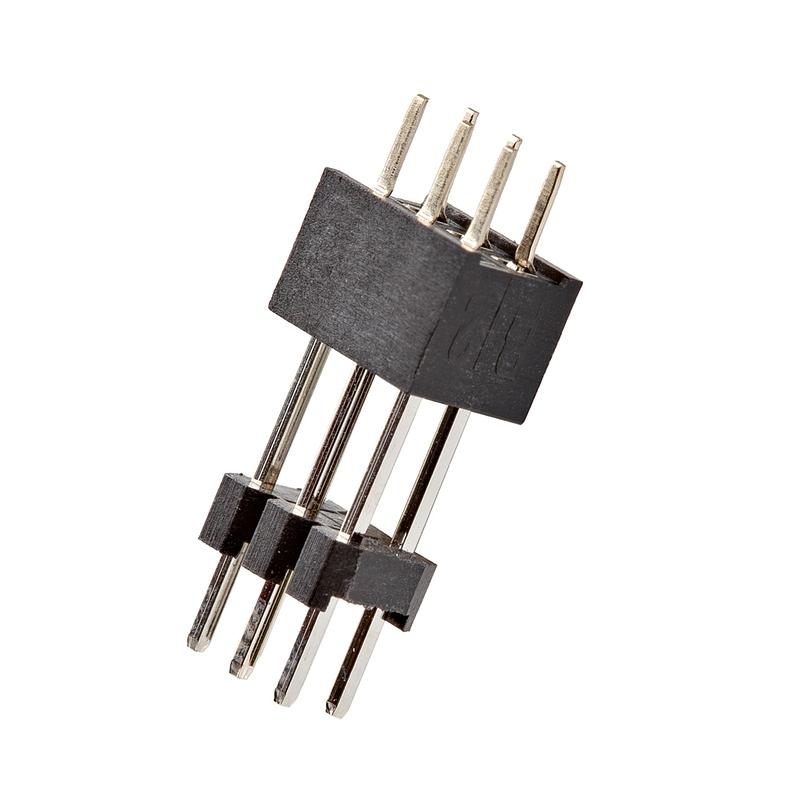

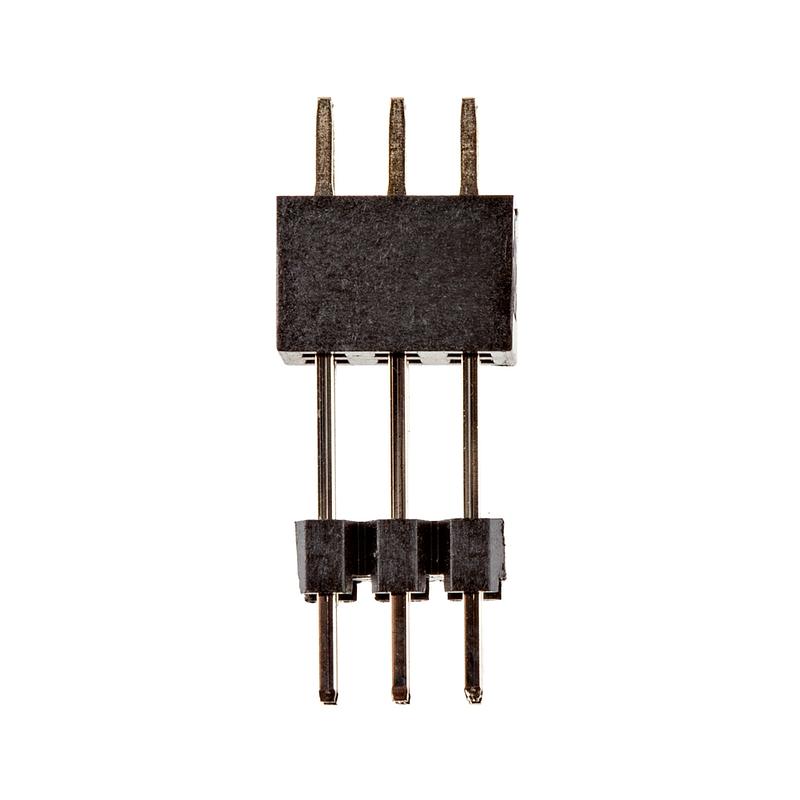

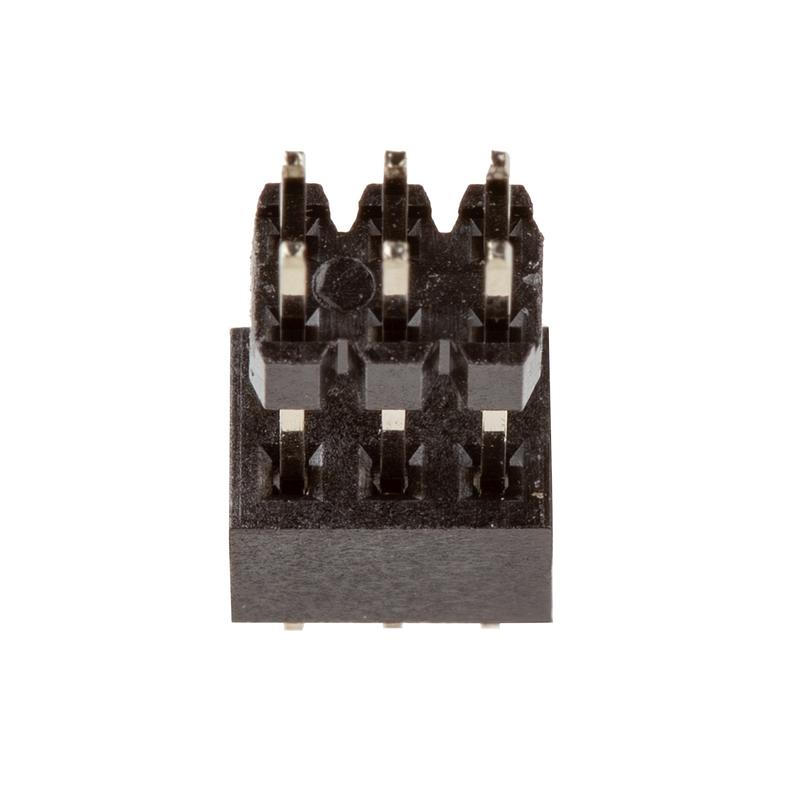

This header pin and socket set is intended for connecting the Ethernet pins on a Teensy 4.1 to a custom circuit board.
The socket is designed to be soldered to the bottom side of the Teensy 4.1, making it useful when you need a neat board-to-board connection for a custom PCB design.
Specifications:
- Mounting style: PTH
- Pitch: 2mm
- Pin layout: 2x3-pin
- Compatibility: Teensy 4.1 ethernet
Jargon buster
Plain-language definitions for the technical terms used above.
- PCB
- A printed circuit board (PCB) is a board, usually rigid, with etched copper tracks that connect electronic components together without loose wiring. Components are mounted on the board and signals route between them through the copper layout.
- PTH
- Plated through-hole means the pin holes are metal-lined so solder connects the pad on both sides of the board. It is useful for connectors and headers that need a strong mechanical and electrical connection.
