Gravity LED Switch Module - White

This compact illuminated push-button module combines a tactile switch with a built-in white LED indicator, making it handy for interactive electronics, prototypes and embedded control panels.

The switch outputs a digital HIGH/LOW signal and runs from +3.3-5V, so it suits common development boards including Arduino-compatible boards and micro:bit projects. It uses a self-locking toggle action: press once and the output switches HIGH while the LED turns on; press again and the output returns LOW while the LED turns off.

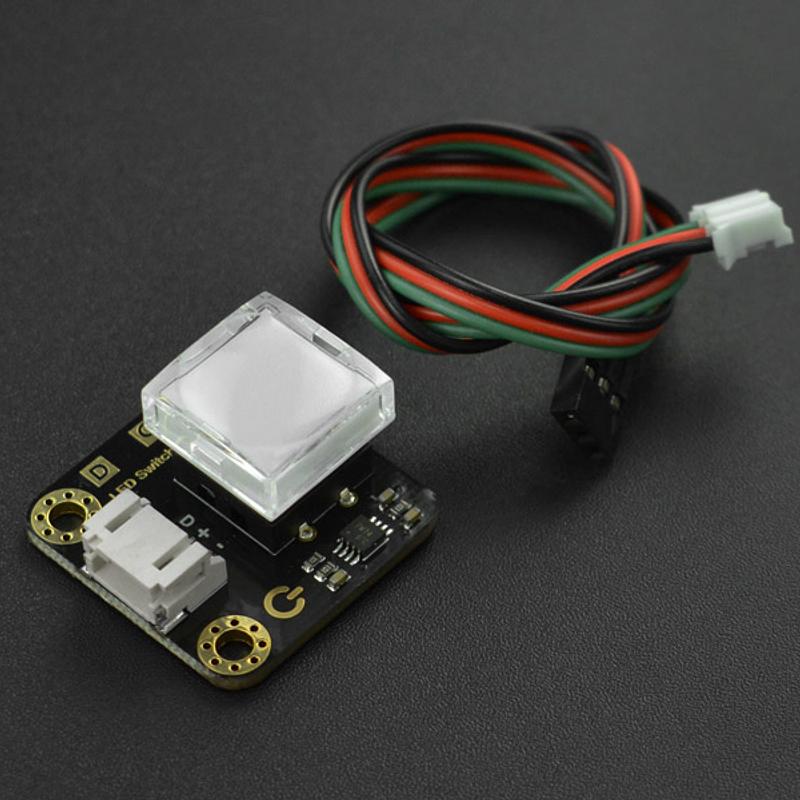

A PH2.0-3P connector supports simple Gravity-style plug-and-play wiring, helping keep classroom builds, robotics interfaces and project panels tidy. The pack includes 1 x Gravity: LED Switch and 1 x Digital Sensor Connector.

Features:

• Self-locking push-button mechanism with digital output
• Integrated LED indicator lights when the button is pressed
• Provides clear visual feedback for interactive electronics projects
• PH2.0-3P connector for easy plug-and-play wiring
• Available in multiple LED colors: red, yellow, green, blue, and white

Specifications:

• Operating Voltage: +3.3-5V (3.3V is recommended)
• Output: digital
• Connector: PH2.0-3P

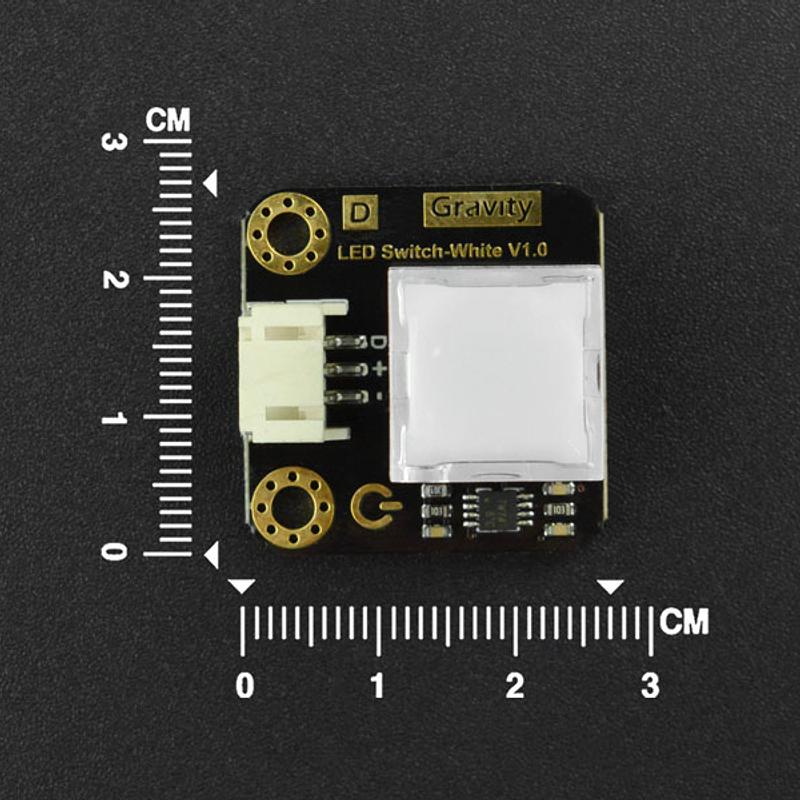

• Dimension: 27×26.5mm
• Colors Available: red, yellow, green, blue, white

Use it as a clear on/off input for robotics control panels, backlit button interfaces, multimedia controls, event triggers and STEM demonstrations.
