Gravity LED Self-Locking Switch - Red
· MPN: DFR0789-R

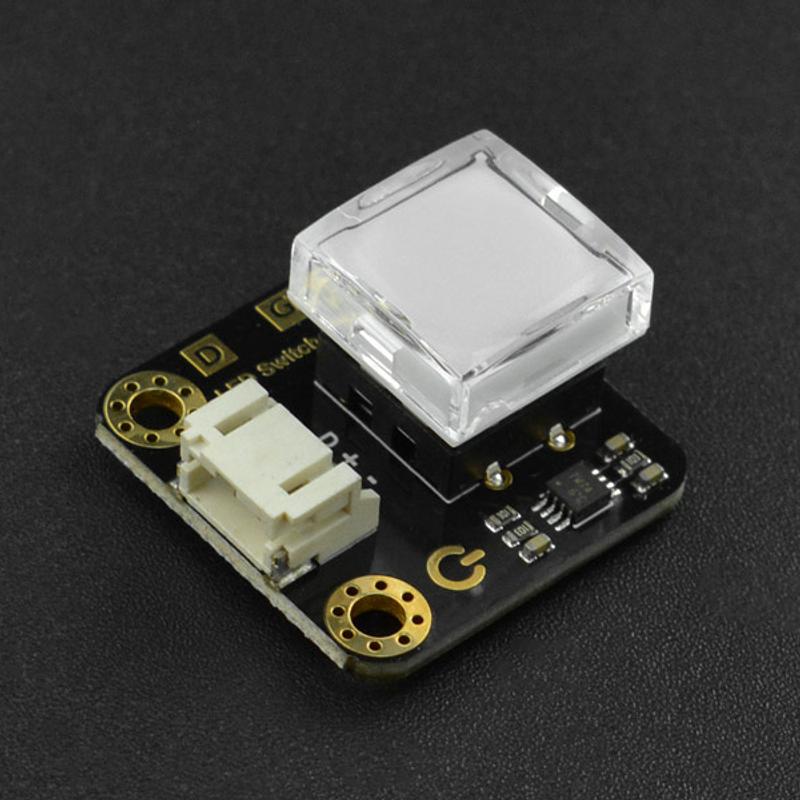

This illuminated pushbutton module is a simple self-locking switch with a built-in red LED for clear visual feedback. Press it once and the module outputs Hi...
Get notified when back in stock

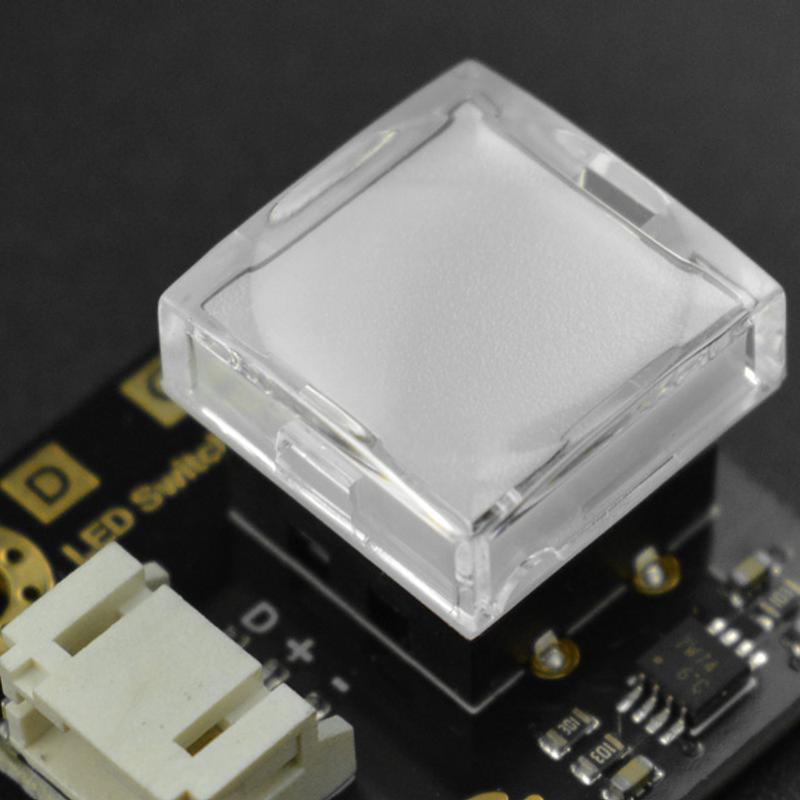

This illuminated pushbutton module is a simple self-locking switch with a built-in red LED for clear visual feedback. Press it once and the module outputs High while the LED turns on; press it again and the output goes Low while the LED turns off.
It is designed for easy use in Arduino, micro:bit and Gravity-style digital input projects. Use it for interactive controls such as a switch, backlit keyboard key, music player panel or recording control panel.
The module uses a PH2.0-3P connector and includes a digital sensor connector cable, so it is straightforward to plug into compatible boards and sensor expansion shields. DFRobot also provides a product wiki for setup guidance.
Features:
- Internal LED turns On when the button is pressed down
Specifications:
- Operating Voltage: +3.3-5V (3.3V is recommended)
- Output: digital
- Connector: PH2.0-3P
- Dimension: 27×26.5mm
- Colors Available: red, yellow, green, blue, white
Included in the pack: Gravity: LED Switch x1 and Digital Sensor Connector x1.
Jargon buster
Plain-language definitions for the technical terms used above.
- Gravity
- Gravity is DFRobot’s plug-in connector system for sensors, motors and modules, using standard cables to reduce loose jumper wiring. It matters because Gravity-compatible parts can connect directly to these ports, while non-Gravity parts may need adapters or manual wiring.
- LED
- A light-emitting diode (LED) is a small electronic component that emits light when current flows through it in the correct direction. Because it only conducts one way, its polarity matters, and a through-hole LED must be soldered the correct way around to light up.
