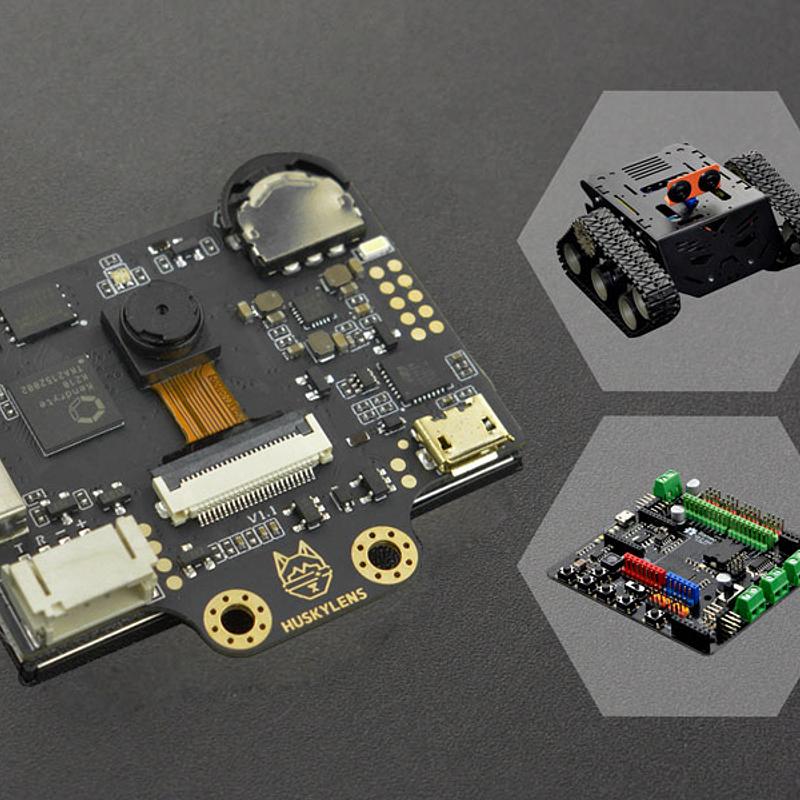

HUSKYLENS AI Vision Sensor Robot Kit with Devastator & Romeo V2
· MPN: SEN0305-2
This kit combines the HUSKYLENS AI machine vision sensor with DFRobot's Devastator Tank Mobile Robot Platform and the Romeo V2 Arduino robot board. It is des...
This kit combines the HUSKYLENS AI machine vision sensor with DFRobot's Devastator Tank Mobile Robot Platform and the Romeo V2 Arduino robot board. It is designed for building vision-enabled robots without needing to write complex image-processing algorithms from scratch.

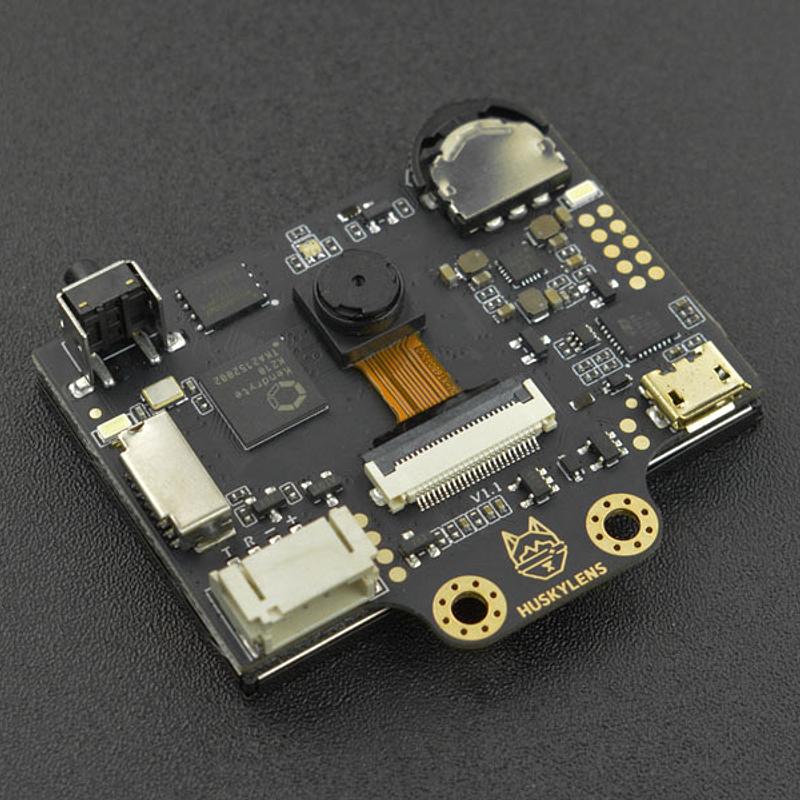

HUSKYLENS can recognise faces, objects, colours, tags and lines, then report results over UART or I2C to popular controllers including Arduino, micro:bit, Raspberry Pi and LattePanda. A 2.0-inch IPS screen lets you tune and test directly on the module, while the function and learning buttons make it straightforward to switch algorithms and teach new targets.

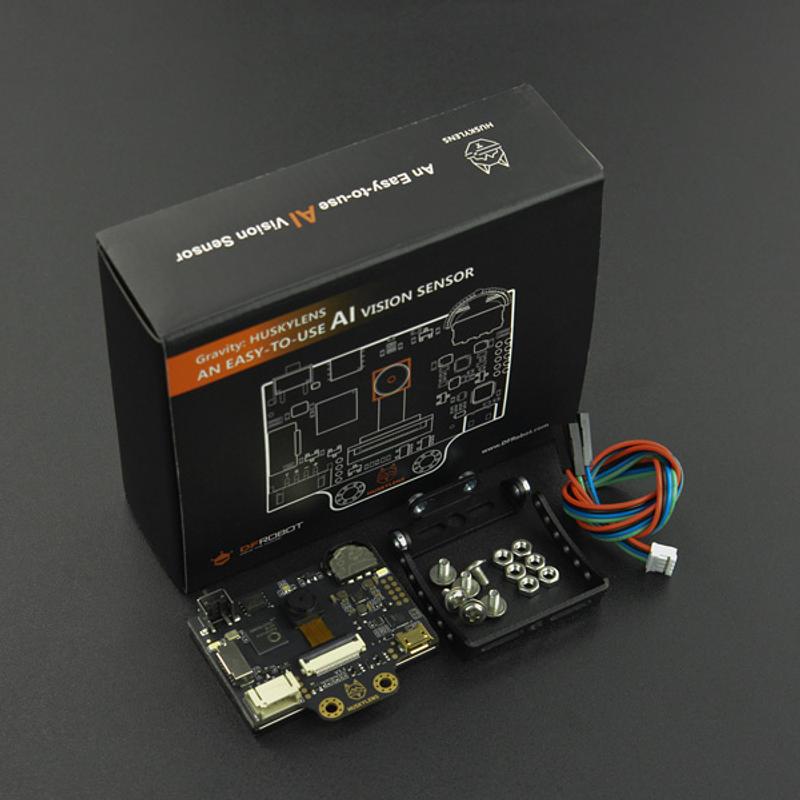

The shipping list includes HuskyLens Mainboard x1, Devastator Tank Mobile Robot Platform x1, Romeo V2- an Arduino Robot Board (Arduino Leonardo) with Motor Driver x1, M3 Screws x6, M3 Nuts x6, Small Mounting Bracket x1, Heightening Bracket x1 and Gravity 4-Pin Sensor Cable x1.
DFRobot provides supporting documentation including the HuskyLens wiki, tutorials for Devastator Tank, Romeo and HUSKYLENS, tutorials for micro:Macqueen Plus and HUSKYLENS, Mind+ Scratch3.0 based offline editor downloads, certification files and project examples.
Features:
- AI vision sensor: Easy-to-use HUSKYLENS module for machine vision projects.
- Face recognition: Can learn and recognise faces.
- Object tracking: Can track learned objects and feed their positions.
- Object recognition: Supports recognition of learned objects.
- Line tracking: Can learn and follow lines for robot line-following projects.
- Colour recognition: Supports colour recognition.
- Tag recognition: Supports tag(QR code) recognition.
- UART / I2C port: Connects to popular main control boards such as Arduino, micro: bit, Raspberry Pi and LattePanda.
- Function button: Change algorithms by pressing the function button.
- Learning button: Click the learning button for HUSKYLENS to start learning new things.
- Continual learning: Long press the learning button to continually learn new things from different angles and ranges.

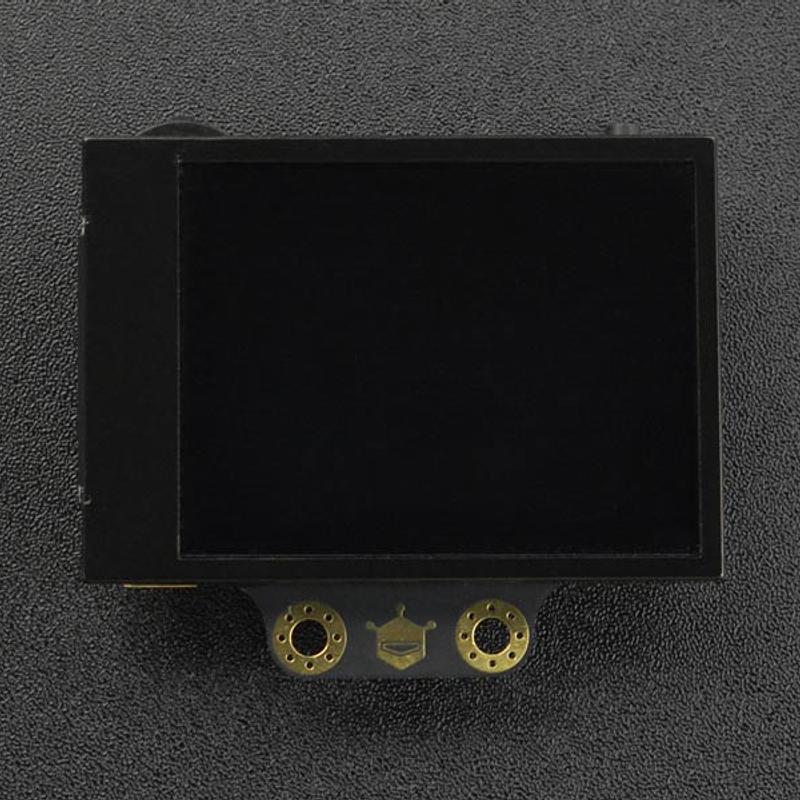

- Built-in display: 2.0 inch IPS screen for parameter tuning without a PC.

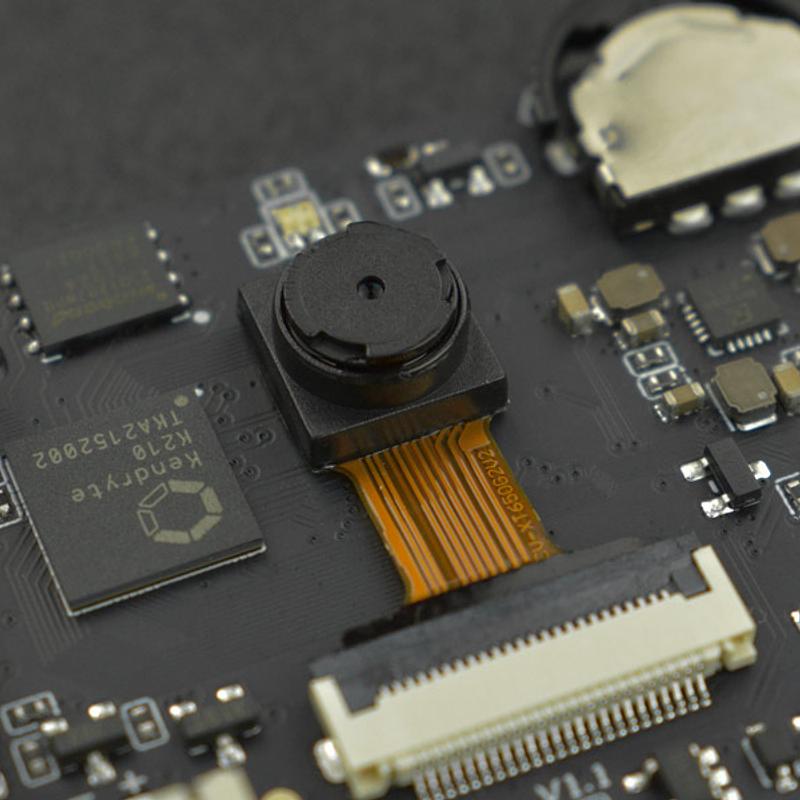

- AI chip: Uses a Kendryte K210 specialised AI chip.
- Robot platform included: Includes Devastator Tank Mobile Robot Platform.
- Robot controller included: Includes Romeo V2- an Arduino Robot Board (Arduino Leonardo) with Motor Driver.
Specifications:
- Processor: Kendryte K210
- Image Sensor: OV2640 (2.0Megapixel Camera)
- Supply Voltage: 3.3~5.0V
- Current Consumption (TYP): 320mA@3.3V, 230mA@5.0V (face recognition mode; 80% backlight brightness; fill light off)
- Connection Interface: UART, I2C
- Display: 2.0-inch IPS screen with 320*240 resolution
- Built-in Algorithms: Face Recognition, Object Tracking, Object Recognition, Line Tracking, Color Recognition, Tag Recognition

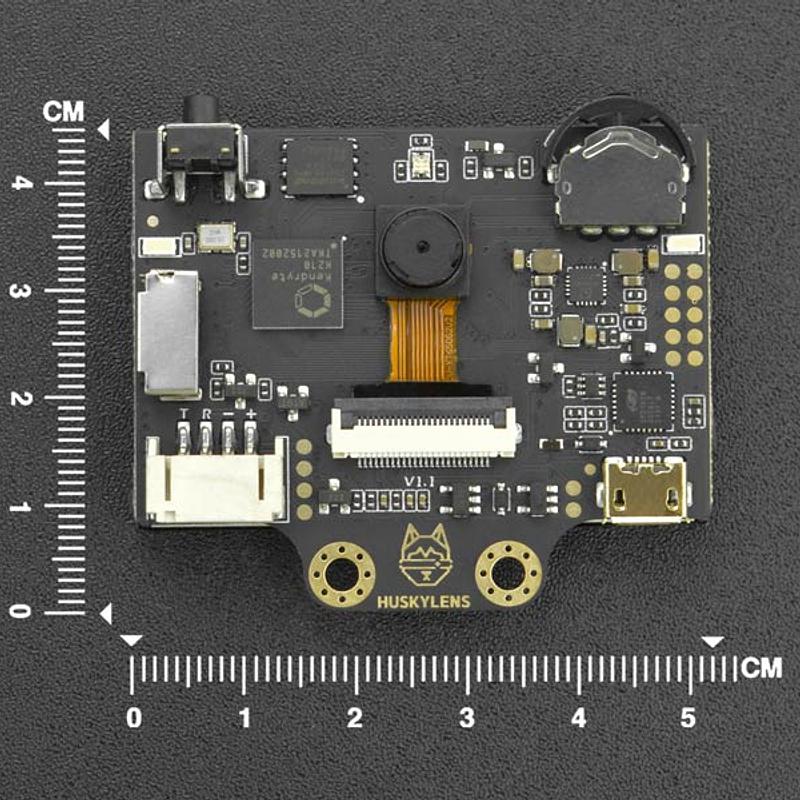

- Dimension: 52mm * 44.5mm / 2.05 x 1.75inch
A strong starting point for autonomous robots, gesture interaction, access-control experiments, interactive toys and other AI vision projects.
Jargon buster
Plain-language definitions for the technical terms used above.
- Gravity
- Gravity is DFRobot’s plug-in connector system for sensors, motors and modules, using standard cables to reduce loose jumper wiring. It matters because Gravity-compatible parts can connect directly to these ports, while non-Gravity parts may need adapters or manual wiring.
- I2C
- I2C is a two-wire communication bus used by many sensors and small modules. It matters because several I2C devices can share the same two wires, but each device needs a compatible address and your controller must support I2C.
- IPS
- IPS is a type of LCD panel that keeps colours and contrast more consistent when viewed from an angle. This matters for small displays that may be mounted in a dashboard, handheld project, or enclosure where the viewer is not always looking straight on.
- motor driver
- An electronic circuit that lets a low-power controller switch and control a motor that needs more current than the controller pins can safely provide. Checking motor driver support matters because pumps and motors usually cannot be connected directly to a microcontroller output.
- UART
- UART is a simple serial connection that sends data over separate transmit and receive wires, often labelled TX and RX. It matters because this module is designed to replace a wired UART cable with a wireless link while keeping the same serial data format.
