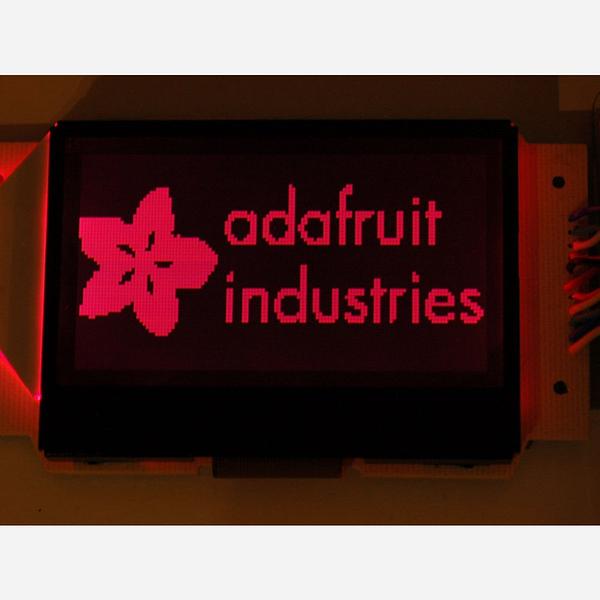

Graphic ST7565 Negative LCD (128x64) with RGB backlight + extras [ST7565]

$28.67

Part Number:  AF-438
Brand:  Adafruit Australia

DescriptionThis graphical display looks fantastic, at a great price! This display will add the ultimate cool to your project, with a black negative display that has a full RGB LED backlight. You can control with PWM to make any color you can imagine, and it will look stunning with the black inverted (negative) background. Four mounting holes and a blank 11 pin 2mm-pitch labeled breakout...
We can dispatch today: - units (delivered by -)
We can dispatch in - days: - units (delivered by -)

Description

This graphical display looks fantastic, at a great price! This display will add the ultimate cool to your project, with a black negative display that has a full RGB LED backlight. You can control with PWM to make any color you can imagine, and it will look stunning with the black inverted (negative) background.

Four mounting holes and a blank 11 pin 2mm-pitch labeled breakout on the side - they just soldered some wire to each hole as shown in the photos, its very easy. (The LCDs have no wires soldered in when they ship them)

Bonus! We're including a free 4050 level shifter chip so that you can safely use it with your favorite 5V microcontroller

Advantages!

  • Lower cost than KS0108 LCDs
  • Serial interface uses only 4 or 5 digital pins
  • Low power, full-color RGB LED backlight
  • Visible in daylight without backlight
  • Works perfectly with 3V logic

Challenges!...

  • 3.3v power and logic means a level converter is needed for 5V Arduinos (we include this part when purchasing from us)
  • Microcontroller must buffer display - uses 1Kb of RAM. This means you must upgrade to a ATmega328 if you are using an Arduino with a '8 or '168

For a more detailed tutorial, including how to wire up the display with a 4050, see Adafruit's writeup at http://www.ladyada.net/learn/lcd/st7565.html

Adafruit have C code and an Arduino library ready to go (we suggest reading the above tutorial too!)
