Graphic LCD 128x64 STN LED Backlight
A framed 128 × 64 pixel graphical LCD with LED backlight. This STN-type display provides clear, high-contrast graphics and text output using the widely suppo...
Get notified when back in stock

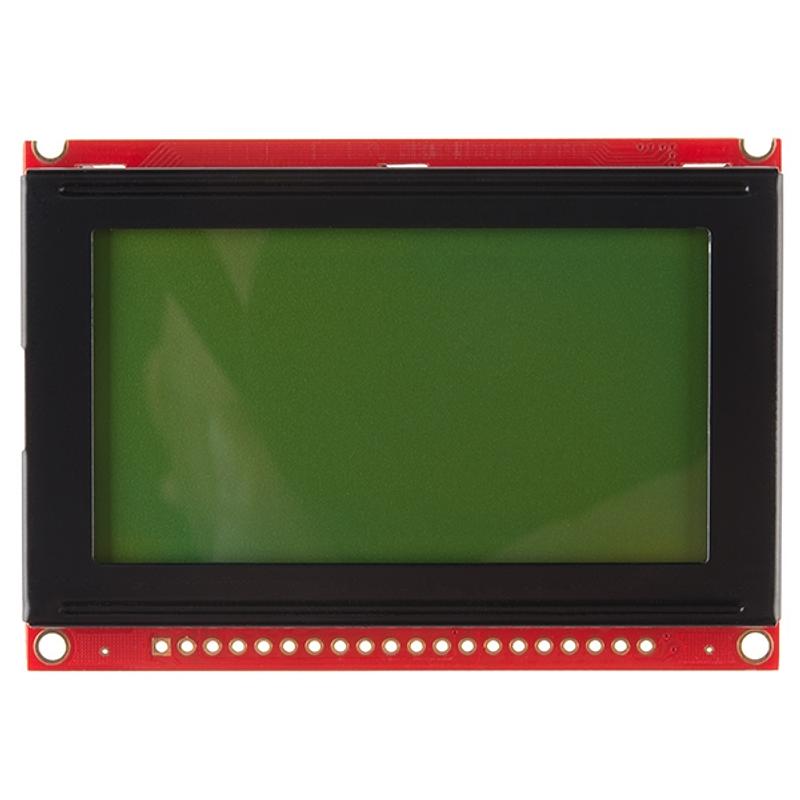

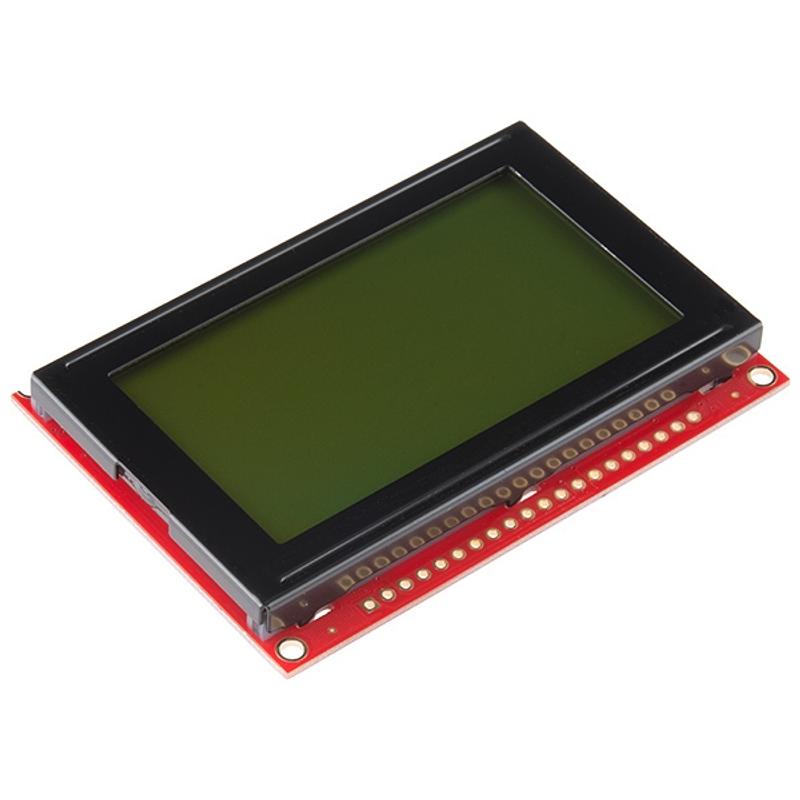

A framed 128 × 64 pixel graphical LCD with LED backlight. This STN-type display provides clear, high-contrast graphics and text output using the widely supported KS0108B parallel interface chipset. The module includes negative voltage generation circuitry onboard, simplifying integration.
Key Features
- 128 × 64 Pixel Resolution – Graphical display for text, icons, and simple graphics
- STN LCD with LED Backlight – Clear, high-contrast display with illumination
- KS0108B Interface – Widely supported parallel chipset with freely available driver code
- Onboard Negative Voltage – Built-in voltage generation simplifies wiring
- Framed Module – Ready to mount in enclosures and panels
Specifications
- Resolution – 128 × 64 pixels
- Display Type – STN LCD
- Backlight – LED
- Controller – KS0108B (parallel interface)
- Overall Dimensions – 75 × 52.7 mm
- Viewable Area – 55 × 27.5 mm
Ideal For
- Arduino graphical display projects
- Custom instrument and meter readouts
- Menu-driven embedded interfaces
- Retro-style clocks and data displays
Package Contents
- 1× Graphic LCD Module 128 × 64 (STN, LED backlight)
Resources
Jargon buster
Plain-language definitions for the technical terms used above.
- LCD
- LCD stands for liquid crystal display, a screen technology that uses a backlight and liquid crystals to show images or text. It matters because LCD modules usually need a display driver and enough controller pins or a bus interface to send image data.
- LED
- A light-emitting diode (LED) is a small electronic component that emits light when current flows through it in the correct direction. Because it only conducts one way, its polarity matters, and a through-hole LED must be soldered the correct way around to light up.
- parallel interface
- A parallel interface sends several bits of data at the same time using multiple wires. It can be faster than simple serial connections, but it uses more microcontroller pins, so it is less convenient for small projects with limited wiring space.
