Georgia Tech ECE3710 Circuits & Electronics Kit
· MPN: KIT-13946
This custom SparkFun kit was assembled for the Georgia Tech ECE3710 Circuits & Electronics class for the Fall 2017 semester. It is intended to support introd...
Get notified when back in stock
This custom SparkFun kit was assembled for the Georgia Tech ECE3710 Circuits & Electronics class for the Fall 2017 semester. It is intended to support introductory work with electric circuit elements, electronic devices, and circuits built from those devices.

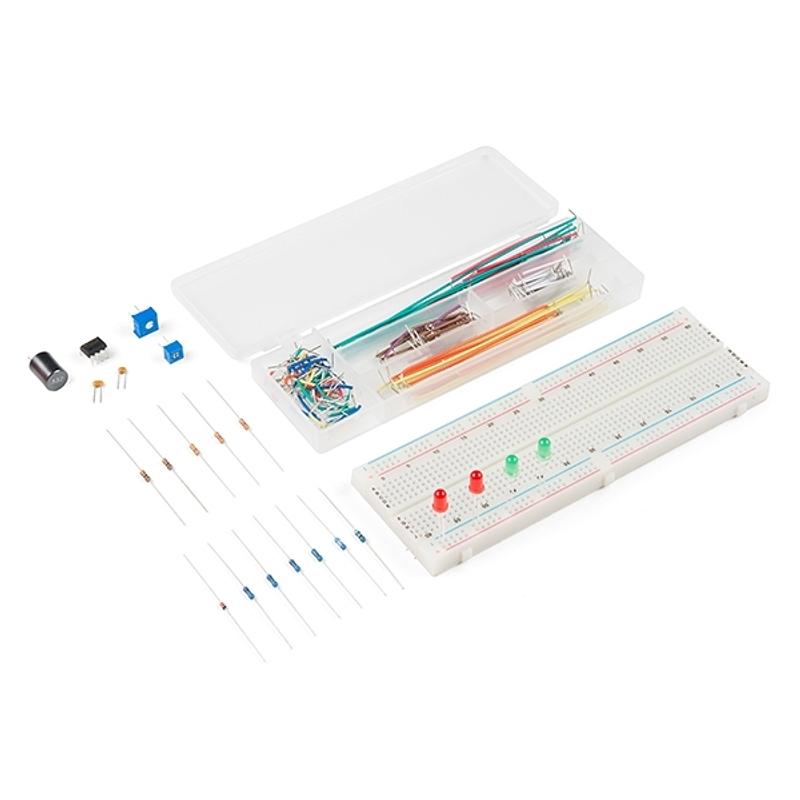

The kit brings together a selection of through-hole components for breadboard-based circuit experiments, including resistors, capacitors, an inductor, LEDs, a diode, trimpots, and a TL082ACP JFET op amp. A breadboard and jumper wires are also included so students can prototype circuits without soldering.
Kit includes:
- Capacitor 0.22uF - 50V (PTH)
- Inductor 3.3mh 50mA 6.1 Ohm (PTH)
- Opamp JFET 3MHz (PTH) - TL082ACP
- Trimpot 100 Ohm 1/2W
- Trimpot 5K Ohm 1/2W
- Resistor 20K Ohm 1/4W 5% (PTH)
- 2x Resistor 2K Ohm 1/4W 5% (PTH)
- Resistor 953 Ohm 1/4W 1% (PTH)
- Resistor 4.9 Ohm 1/4W 1% (PTH)
- 4x Resistor 1K Ohm 1/4W 1% (PTH)
- Breadboard
- Jumper Wires
- 2x Green LED
- 2x Red LED
- Resistor 1K Ohm 1/4W 5% (PTH)
- Diode 1N4148 (PTH)
- Capacitor 0.1uF - 50V - 20% (PTH)
A handy parts bundle for course labs, analogue circuit practice, and breadboard experiments using common through-hole components.
