DFRobot GDI-Line-30CM 18-Pin Reverse FPC Cable - 5 Pack
· MPN: FIT0692
This 30 cm flat flex ribbon cable is made for connecting compatible GDI display modules to controller boards. It uses an 18-pin reverse FPC layout with a 0.5...
Get notified when back in stock

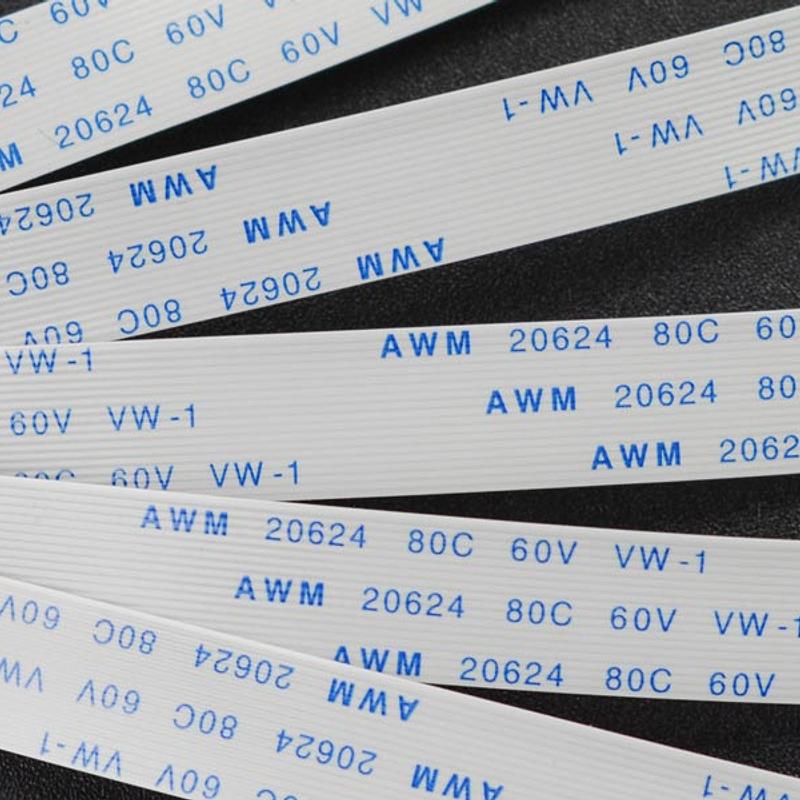

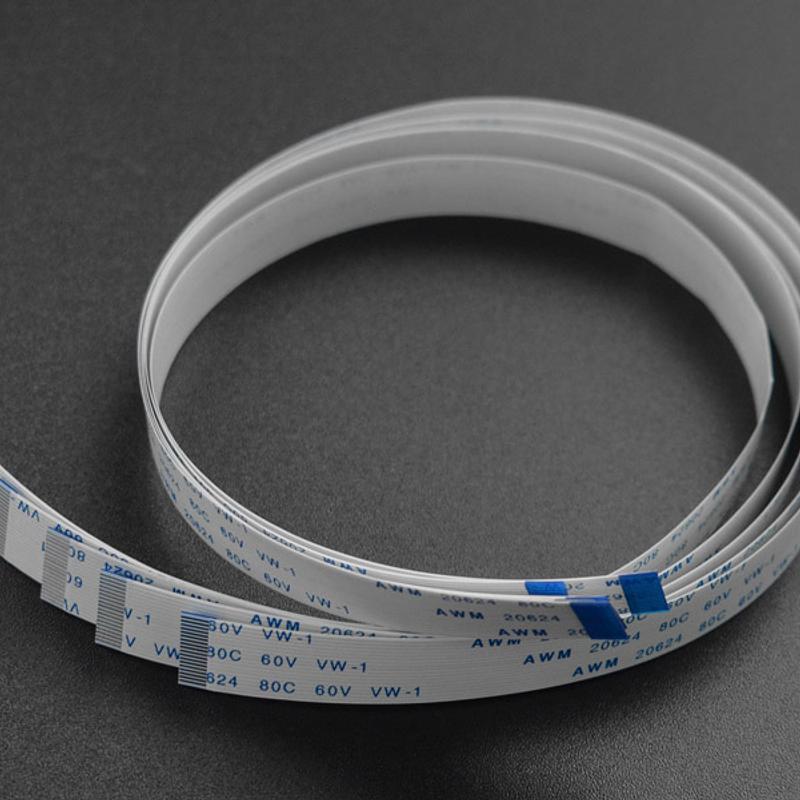

This 30 cm flat flex ribbon cable is made for connecting compatible GDI display modules to controller boards. It uses an 18-pin reverse FPC layout with a 0.5 mm pitch, helping keep display wiring neat in compact electronics builds.
The flexible polyimide construction is designed to handle tight routing and sharp bends during installation, making it useful for prototypes, embedded display assemblies, robotics interfaces, portable devices and control panels.

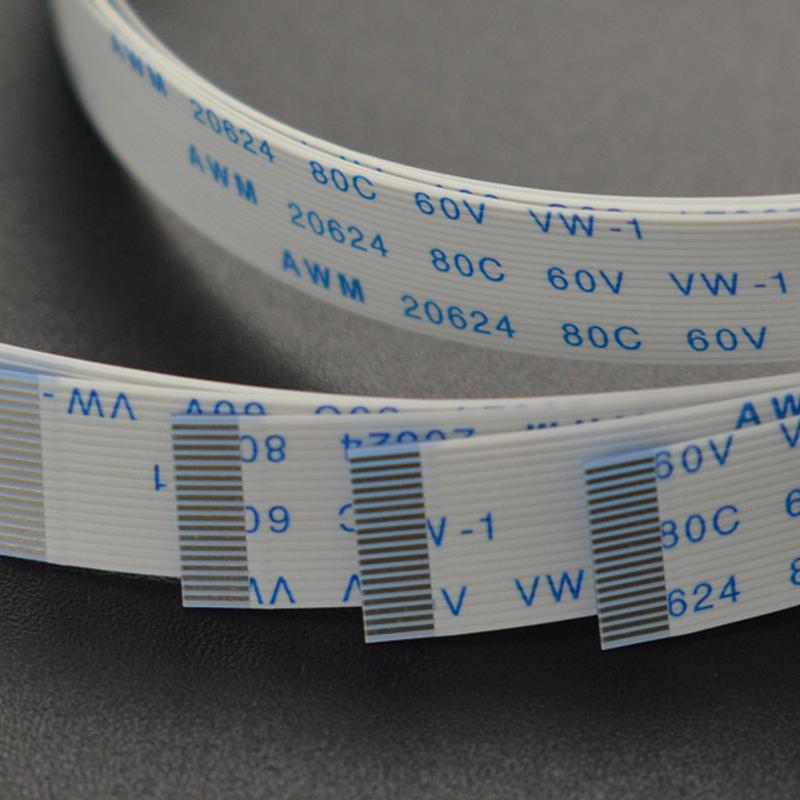

Rear insulated pads help improve contact stability in the connector seat, supporting reliable image and video signal transmission across all 18 pins. The pack includes five GDI-Line-30CM cables.
Features:
- 18-pin reverse FPC ribbon cable designed for GDI display connections
- 0.5mm pin pitch supports high-density compact connectors
- Flexible polyimide flat cable structure allows sharp bending without damage
- Rear insulated pads improve connector contact stability
- 30cm length suitable for display module routing inside enclosures
- Supports stable image and video signal transmission
Specifications:
- Interface: 18PIN (Reverse)
- Pin Pitch: 0.5mm
- Length: 30CM
- Compatibility: GDI only
Suitable for GDI display module connections, embedded display systems and compact projects that need a slim flat-flex interconnect.
Jargon buster
Plain-language definitions for the technical terms used above.
- FPC
- FPC stands for flexible printed circuit, a thin flat flexible cable or connector style often used where space is tight or some movement is needed, commonly for displays, cameras and other high-density connections. Connecting to an FPC connector generally needs a matching cable with the correct pin count, pitch and contact orientation.
