FT231XS USB to Serial UART Module
· MPN: COM-27909
This compact module provides a USB to serial UART interface using the FT231X family, making it a straightforward way to add USB connectivity to UART-based pr...
Get notified when back in stock
This compact module provides a USB to serial UART interface using the FT231X family, making it a straightforward way to add USB connectivity to UART-based projects.
It supports full modem control and works as a USB to UART bridge for embedded boards, prototypes and test setups that need reliable serial communication over USB.

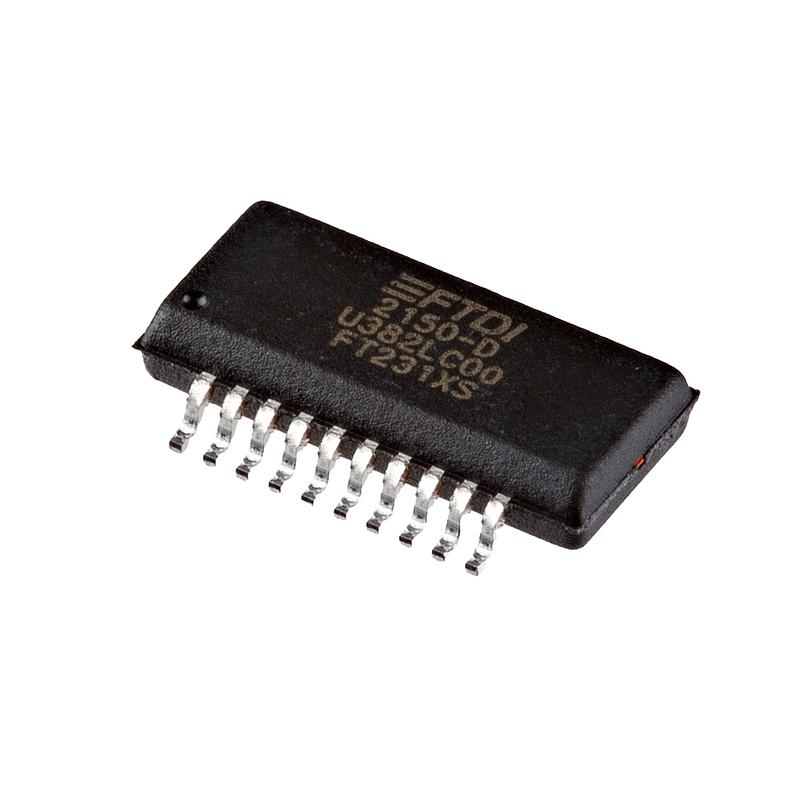

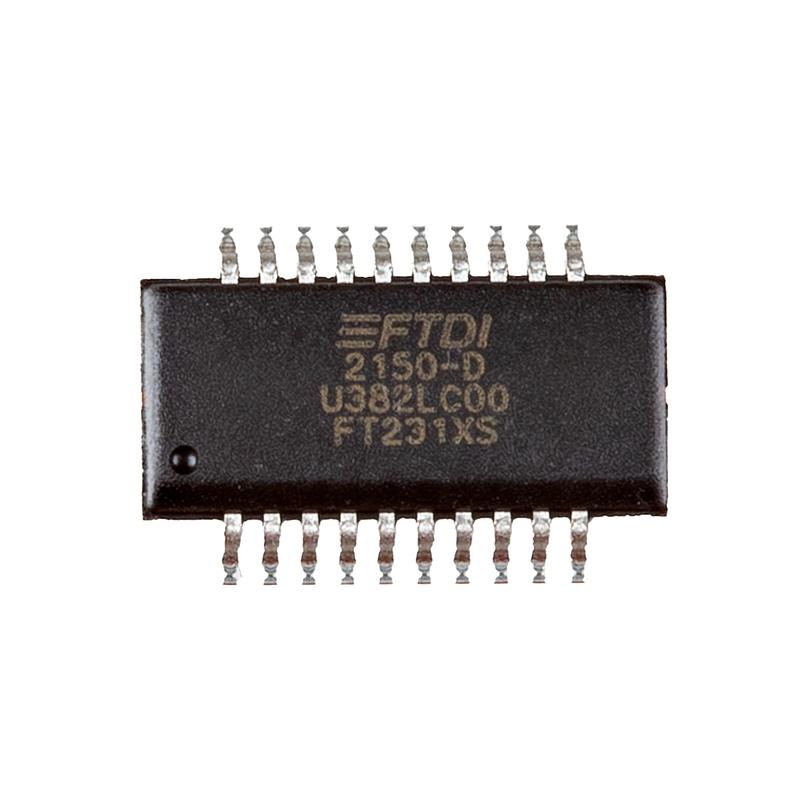

The module is based on FTDI part number FT231XS-R, with USB 2.0 support and a supply voltage range suitable for common 3.3V and 5V systems. A datasheet is available from the manufacturer for detailed integration information.
Specifications:
- Protocol: USB
- Function: Bridge, USB to UART
- Interface: UART
- Standards: USB 2.0
- Voltage - Supply: 3.3V ~ 5V
- Current - Supply: 8mA
- Operating Temperature: -40°C ~ 85°C
- Mfg Part #: FT231XS-R
Jargon buster
Plain-language definitions for the technical terms used above.
- UART
- UART is a simple asynchronous serial interface that sends data over separate transmit and receive wires, usually labelled TX and RX, with both ends set to the same baud rate. It is a common way for microcontrollers and other serial devices to exchange data.
- USB 2.0
- USB 2.0 is a widely used wired standard for carrying both data and power between a device and a computer or other compatible host, with data rates up to 480 Mbps. It indicates the kind of port a device uses and that it should work with most modern and many older computers.
