External Iridium® Certified Compact Magnetic Adhesive Mount Antenna
· MPN: WRL-25068
The 2J7426MPz by 2J Antennas is a high-performance compact antenna certified for use with the Iridium satellite communication system. Manufactured from polyc...

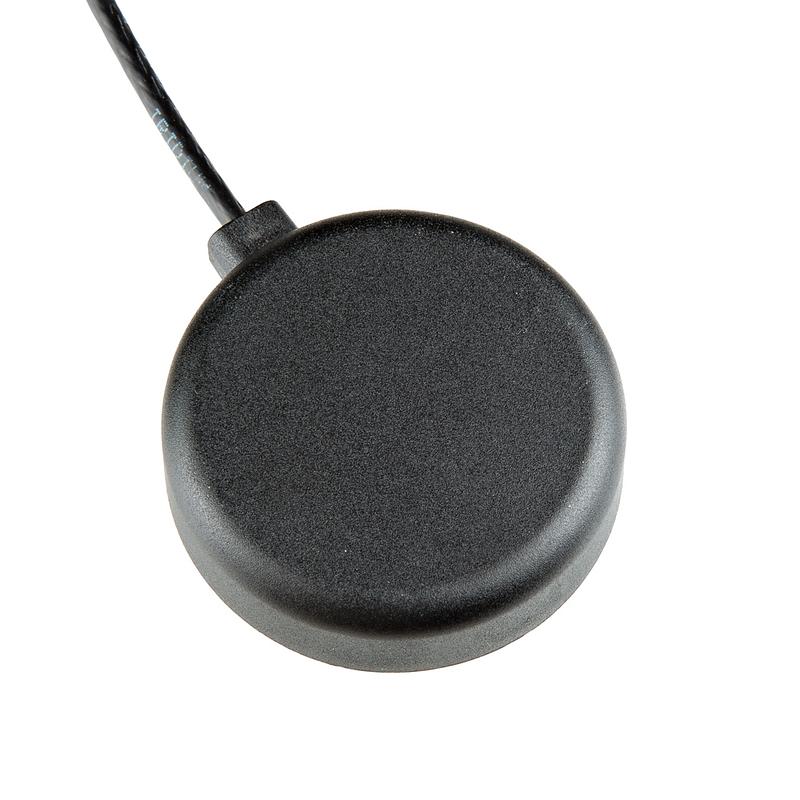

The 2J7426MPz by 2J Antennas is a high-performance compact antenna certified for use with the Iridium satellite communication system. Manufactured from polycarbonate (PC) and acrylic-styrene-acrylate terpolymer (ASA), it offers strong resistance to UV, moisture, and heat for reliable outdoor operation.

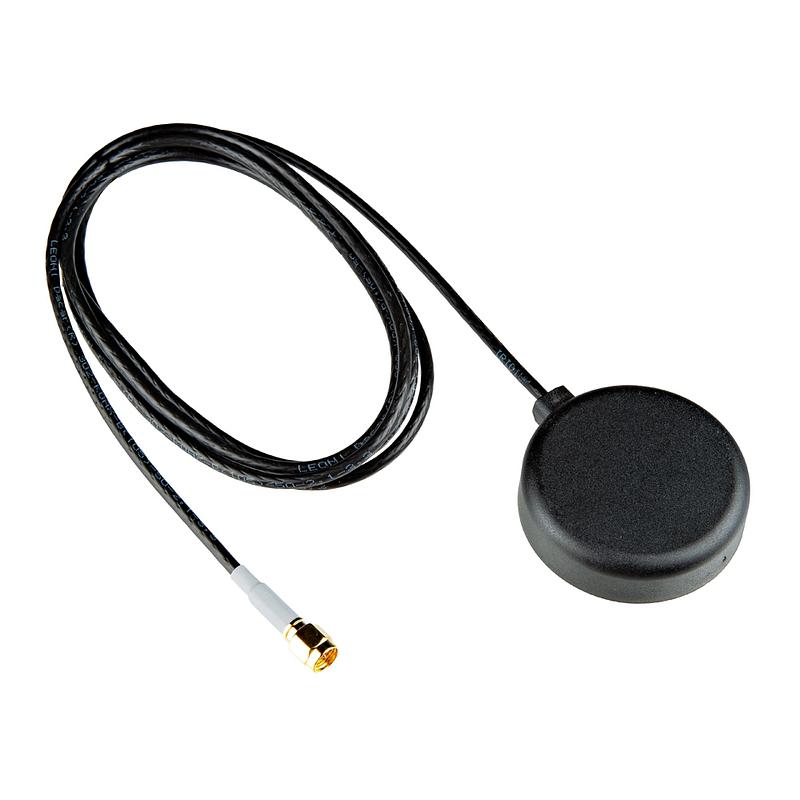

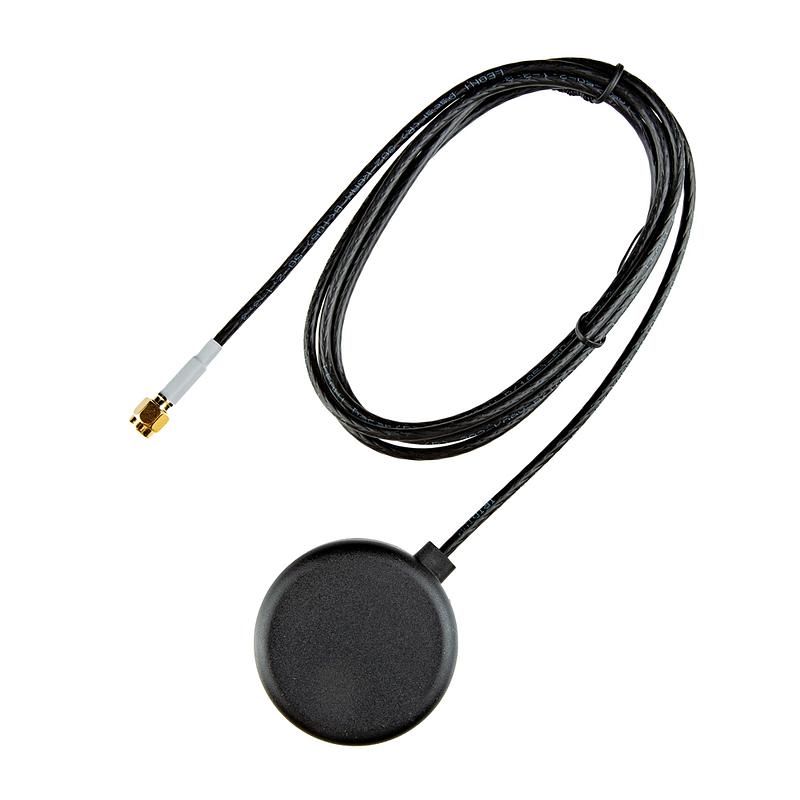

Waterproof to IP69, the antenna is designed for harsh environments with frequent exposure to water, dust, and debris. The magnetic mount allows easy installation and removal between vehicles or assets, and can be converted to adhesive mounting for permanent installations. Delivered with a 3 m LL100 coaxial cable and SMA-male connector.
Key Features
- Iridium Certified – Approved for commercial use with the Iridium Communications System
- IP67 / IP69 Rated – Waterproof and dustproof for harsh environments

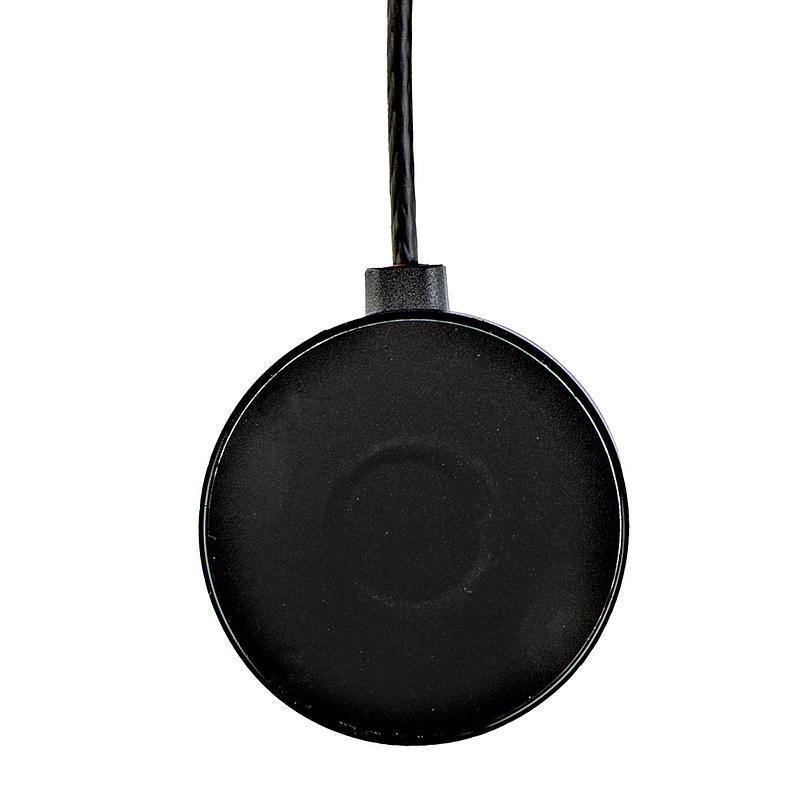

- Magnetic / Adhesive Mount – Dual mounting options for flexible installation
- High Efficiency – ~82.3% efficiency with ~5.1 dBi peak gain
- Wide Temperature Range – −40 °C to +85 °C operating and storage
- RHCP Polarisation – Right-hand circular polarisation for satellite communication
Specifications
- Standard – Iridium
- Frequency – 1616–1627 MHz
- VSWR – ~1.1:1
- Efficiency – ~82.3%
- Peak Gain – ~5.1 dBi
- Impedance – 50 Ω
- Radiation Pattern – Hemispherical
- Polarisation – RHCP

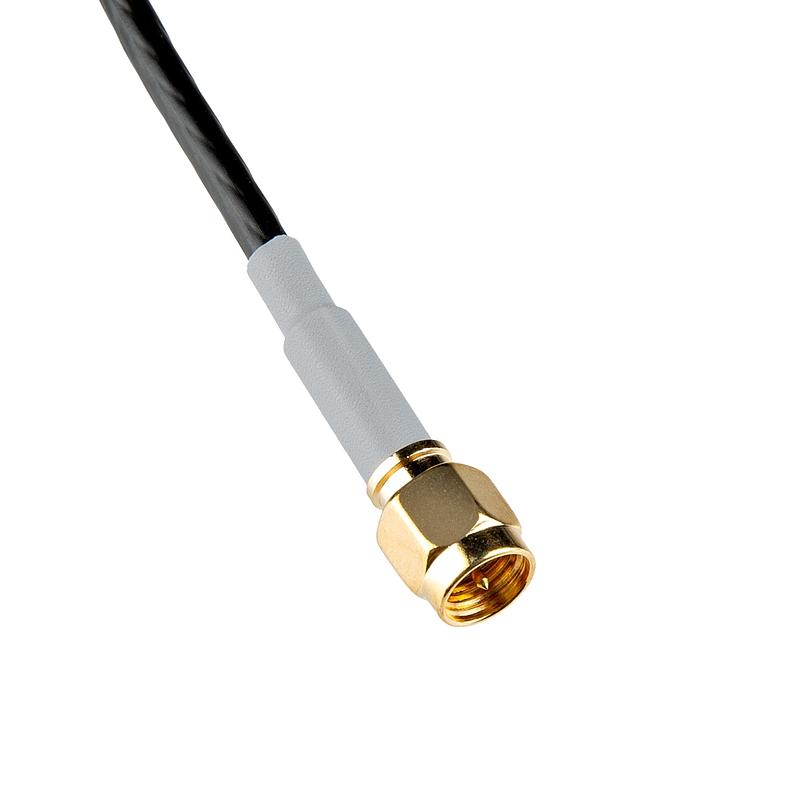

- Connector – SMA-male
- Cable – 3 m LL100 coaxial
- Mounting – Magnetic / adhesive
- Dimensions – Ø 54 × 14.7 mm
- Operating Temperature – −40 °C to +85 °C
- Certifications – IP67, IP69, Iridium Certified
Ideal For
- Iridium satellite communication systems
- Remote asset tracking and telemetry
- Maritime and vehicle-mounted satellite links
- Field-deployed IoT and M2M devices
Package Contents
- 1× 2J7426MPz Iridium antenna with magnetic mount
- 1× 3 m LL100 coaxial cable (SMA-male connector)
Resources
Jargon buster
Plain-language definitions for the technical terms used above.
- IoT
- Short for Internet of Things, meaning physical devices that connect to networks or the internet to send data or be controlled remotely. It matters if you want projects such as connected sensors, remote controls or classroom data-logging activities.
- IP67
- An ingress protection rating meaning the enclosure is dust-tight and can survive temporary immersion in water under specified test conditions. This matters when choosing a sensor for outdoor, wet, or wash-down environments.
- SMA
- A threaded coaxial connector commonly used for antennas. It matters because you need antennas with matching SMA connectors, or suitable adapters, for the LTE and GNSS antenna ports.
