SparkFun

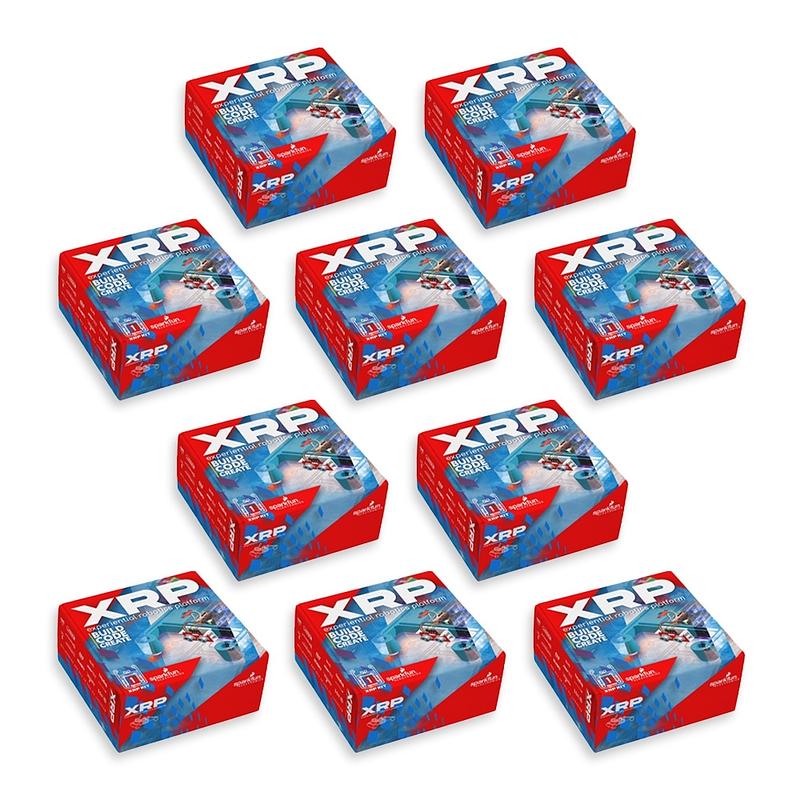

XRP Robotics Platform Kit - Set of 10
· MPN: KIT-28010
This set of 10 XRP kits is designed for classrooms, robotics clubs and teams that need multiple hands-on robots for learning, coding and experimentation. The...
This set of 10 XRP kits is designed for classrooms, robotics clubs and teams that need multiple hands-on robots for learning, coding and experimentation. The platform supports beginner through advanced activities, helping students build skills in science, engineering and problem-solving.
Each kit centres on the SparkFun XRP Controller, which uses a Raspberry Pi® RP2350B dual-core processor and adds onboard motion sensing, motor control, servo headers, Qwiic expansion and wireless connectivity. The robot chassis uses improved snap-fit plastics for tool-free assembly, with more durable parts, a redesigned battery holder and flexible mounting options.
The kit includes the parts needed to build a mobile robot, including distance and line sensors, encoded motors, a servo, wheels, casters and sensor cables. Programming is via USB-C, and the XRP ecosystem supports Blockly, Python and WPILib, with online modules, coding tools, assembly guides, 3D-printable designs and community support available through the XRP resources.
Features:
- Hardware Kit: Easily assemble a robust and expandable robot platform with tool-free construction and versatile integration for sensors and actuators.
- Programming Environment: Utilise a multi-language coding experience with Blockly, Python and WPILib, providing a user-friendly interface for all skill levels.
- Online Modules and Projects: Follow a structured learning path with engaging challenges and comprehensive resources to master robotics concepts.
- Technical Forum: Access community-driven support, expert assistance and collaborative opportunities within a dedicated technical forum.
- Controller: SparkFun XRP Controller is significantly improved over the Beta XRP Controller.
- IMU: Low-power accelerometer + gyroscope 6-DoF IMU for motion sensing.
- Qwiic expansion: Two Qwiic® connectors for easy integration of sensors and accessories.
- Motor control: Two dual-channel motor drivers for controlling four motors total.
- Servo control: Four servo headers for actuator expansion.
- User feedback: Includes a user button and a full-colour RGB LED.
- Electrical expansion: 0.1in. headers provide extra electrical expansion possibilities.
- Wireless connectivity: Raspberry Pi® RM2 radio module enables 2.4GHz WiFi and Bluetooth for remote control and IoT projects.
- Chassis: Improved snap-fit components and optimised 3D-printing compatibility make assembly easier.
- Durability: Improved durability, a redesigned battery holder and versatile mounting options make the XRP more robust and user-friendly.
Specifications:
- Kit quantity: Set of 10
- Processor: Raspberry Pi® RP2350B dual-core processor
- Flash: 16MB
- PSRAM: 8MB
- IMU: Low-power accelerometer + gyroscope 6-DoF IMU (LSM6DSOX from STMicroelectronics®)
- Qwiic® connectors: Two
- Motor drivers: Two dual-channel motor drivers
- Motor capacity: Four motors total
- Servo headers: Four
- User button: One
- RGB LED: Full-colour RGB LED
- Electrical expansion headers: 0.1in.
- Wireless module: Raspberry Pi® RM2 radio module
- Wireless connectivity: 2.4GHz WiFi and Bluetooth
- Ultrasonic distance sensor: Included
- Line sensor: Included
- Motors with encoders: Two
- Servo motor: One
- Sensor cables: Included
- Wheels: Two
- Casters: Two
- Typical power: 4xAA batteries (not included in the kit)
- Barrel connector supply: Any supply up to 11V
- Programming connector: USB-C connector (cable not included)
USB-C cables and AA batteries are not included, so add them separately if you are preparing a classroom or workshop set.
Jargon buster
Plain-language definitions for the technical terms used above.
- 2.4GHz WiFi
- 2.4GHz WiFi is the common wireless network band used by many routers and embedded devices. It matters here because the module can use WiFi for firmware updates, separate from its Bluetooth serial function.
- Gyroscope
- A gyroscope measures rotation, such as how fast a board is turning around its X, Y, and Z axes. This matters for projects like gesture controls, balancing robots, and motion tracking where tilt or rotation changes need to be detected.
- Headers
- Rows of metal pins used to plug a module into a breadboard or connect it with jumper wires. Pre-soldered headers make the module easier to use straight away without needing to solder the pins yourself.
- IMU
- An Inertial Measurement Unit combines motion sensors to measure movement and orientation. It matters for asset tracking because it can detect movement, tilt, vibration, or changes in direction.
- IoT
- Short for Internet of Things, meaning physical devices that connect to networks or the internet to send data or be controlled remotely. It matters if you want projects such as connected sensors, remote controls or classroom data-logging activities.
- LED
- A light-emitting diode is a small electronic component that lights up when current flows through it in the correct direction. In this kit, LEDs create the flashing effect, so polarity and correct soldering matter for the project to work.
- Qwiic
- Qwiic is a plug-in connector system for I2C devices that uses small 4-pin cables, so you can connect compatible sensors without soldering. It matters because your controller or adapter also needs Qwiic, or you will need a cable or breakout to wire it up.
- RGB
- Short for red, green and blue, usually referring to an LED that can mix those three colours. It matters because controlling an RGB LED teaches how separate outputs combine to create different colours.
- servo
- A servo is a motor with built-in position control, usually told to move to a specific angle by a control signal. It matters when you need repeatable movement, such as steering, arms, flaps, or linkages, rather than continuous spinning.
- servo motor
- A motor module that moves to a commanded angle rather than simply spinning freely. It matters for robotics and mechanisms because it is useful for steering, arms, gates and other parts that need controlled position.
- USB-C
- A modern reversible USB connector used for power and data connections. On this product it matters because it can connect directly to a computer as well as to a microcontroller project.
