Espressif Module Prog-1 ESP32 WROOM Programmer
· MPN: PGM-25003
The Espressif Module Prog-1 is a dedicated programmer for flashing ESP32 modules without soldering. It uses spring pins to make a secure, swappable connectio...
Get notified when back in stock

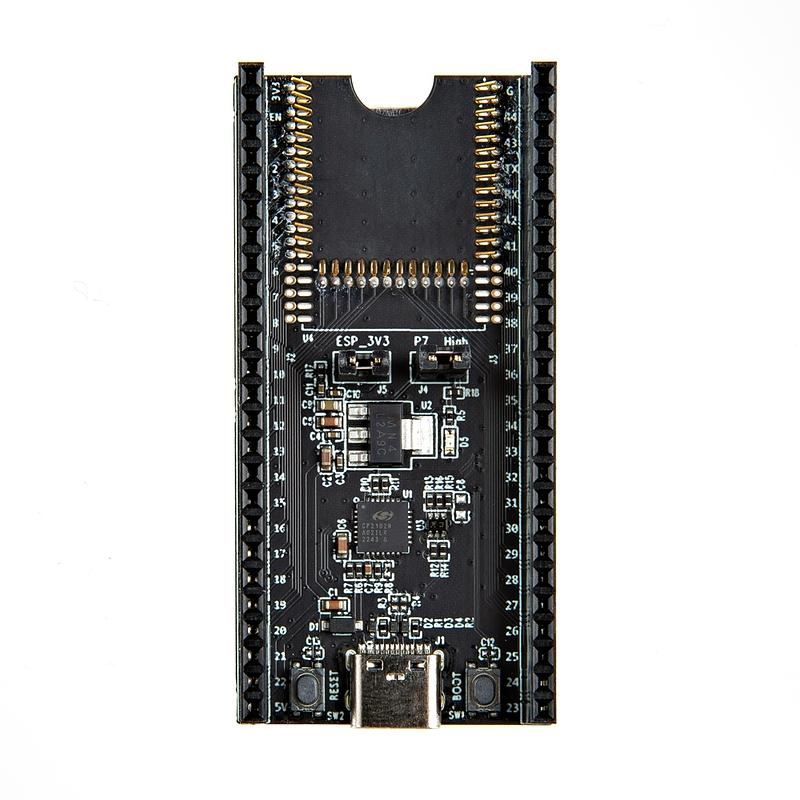

The Espressif Module Prog-1 is a dedicated programmer for flashing ESP32 modules without soldering. It uses spring pins to make a secure, swappable connection to supported modules, making it handy for development, testing or small production runs.

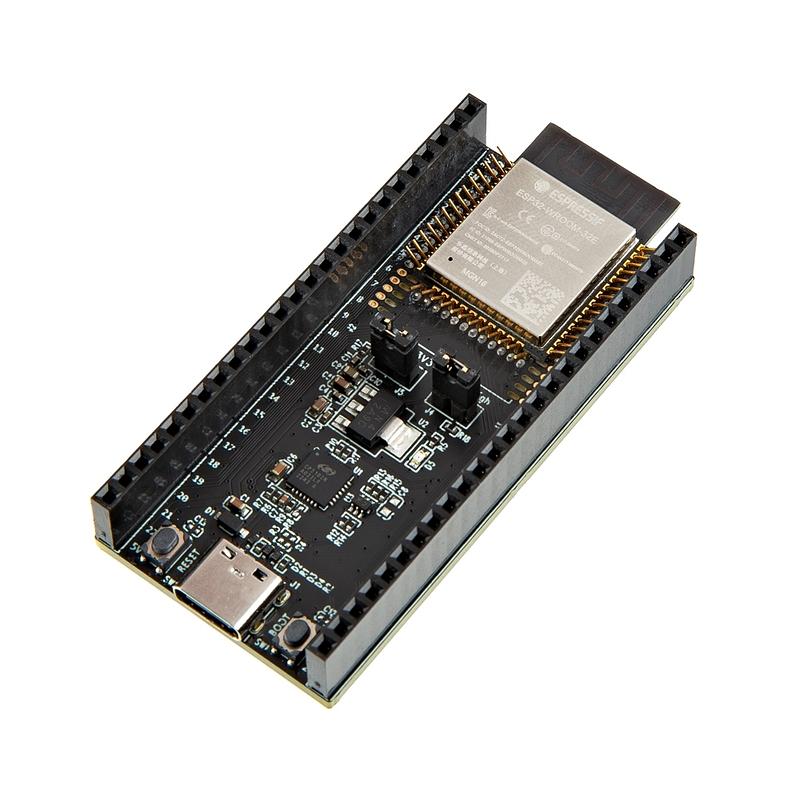

To use it, place a compatible ESP32 module onto the spring-pin contacts, connect a USB-C cable, and flash your code. It supports ESP32-WROOM-32, ESP32-S2, ESP32-S3 and ESP32-C6 module variants listed below.
Features:
- USB: USB Type C Connector

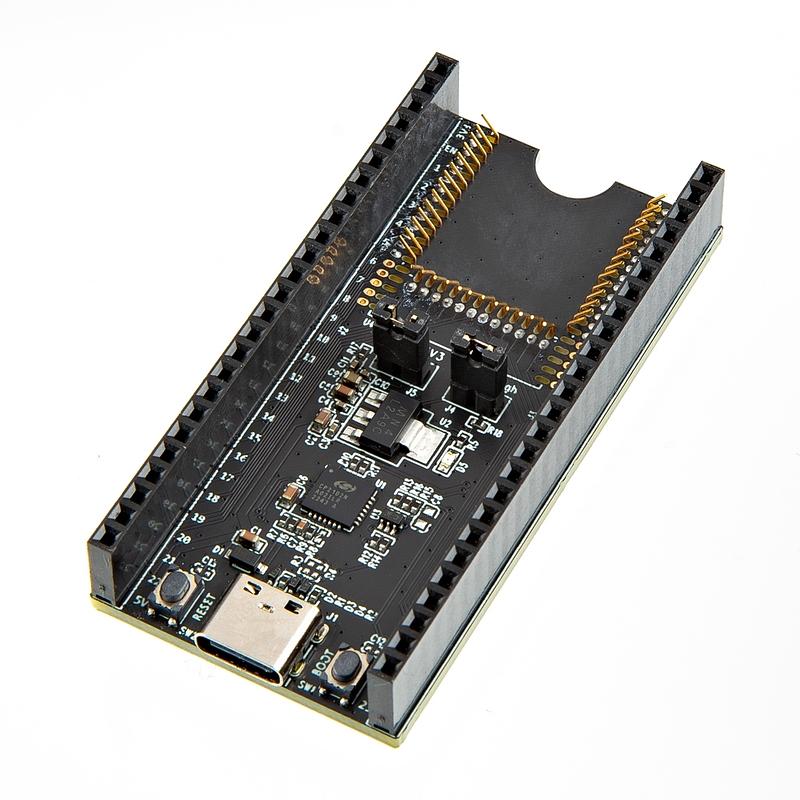

- Spring pins: Spring Pins allows for the module to be quickly swapped without soldering or any permanent connection
- Compatibility: Works with the following Modules
- Compatible module: ESP-Module-Prog-1
- Compatible module: ESP32-WROOM-32
- Compatible module: ESP32-WROOM-32D
- Compatible module: ESP32-WROOM-32U
- Compatible module: ESP32-SOLO-1
- Compatible module: ESP32-WROOM-32E
- Compatible module: ESP32-WROOM-32UE
- Compatible module: ESP32-S2-SOLO
- Compatible module: ESP32-S2-SOLO-U
- Compatible module: ESP32-S2-SOLO-2
- Compatible module: ESP32-S2-SOLO-2U
- Compatible module: ESP32-S3-WROOM-1
- Compatible module: ESP32-S3-WROOM-1U
- Compatible module: ESP32-S3-WROOM-2
- Compatible module: ESP32-C6-WROOM-1
- Compatible module: ESP32-C6-WROOM-1U
A useful tool for anyone regularly programming bare ESP32 modules, especially where a temporary, solder-free connection is preferred.
Jargon buster
Plain-language definitions for the technical terms used above.
- ESP32
- ESP32 is a family of low-cost microcontroller chips and modules from Espressif with built-in WiFi and Bluetooth. They support programmable firmware and over-the-air updates, and are commonly programmed with toolchains such as the Arduino core and ESP-IDF.
- USB-C
- USB-C is a small, reversible USB connector that can carry power, data and, on some devices, video over a single cable. The same connector can range from charging only to high-speed data, so the functions a given port actually supports vary.
