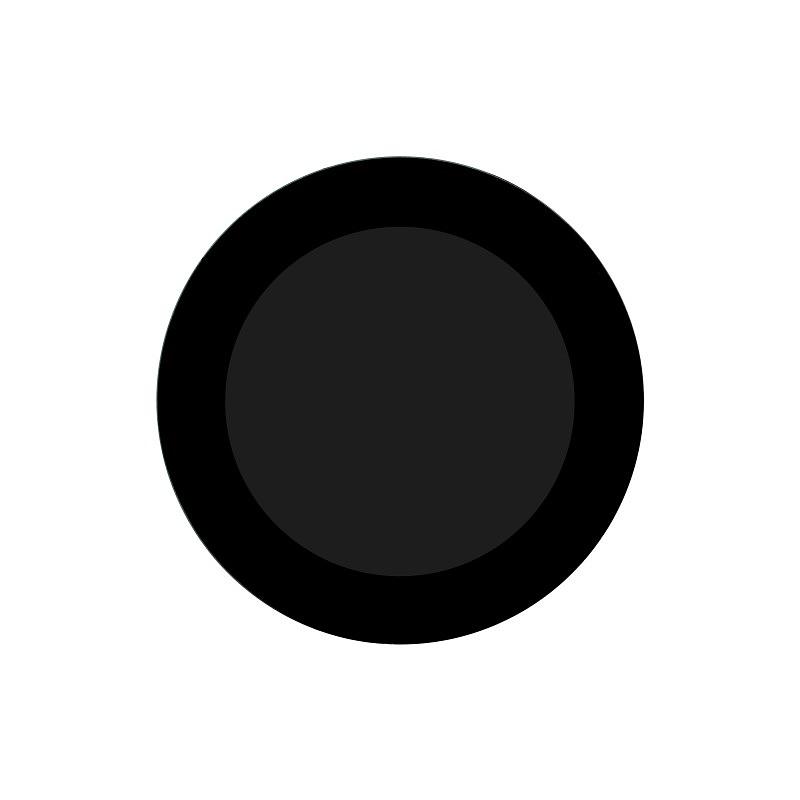

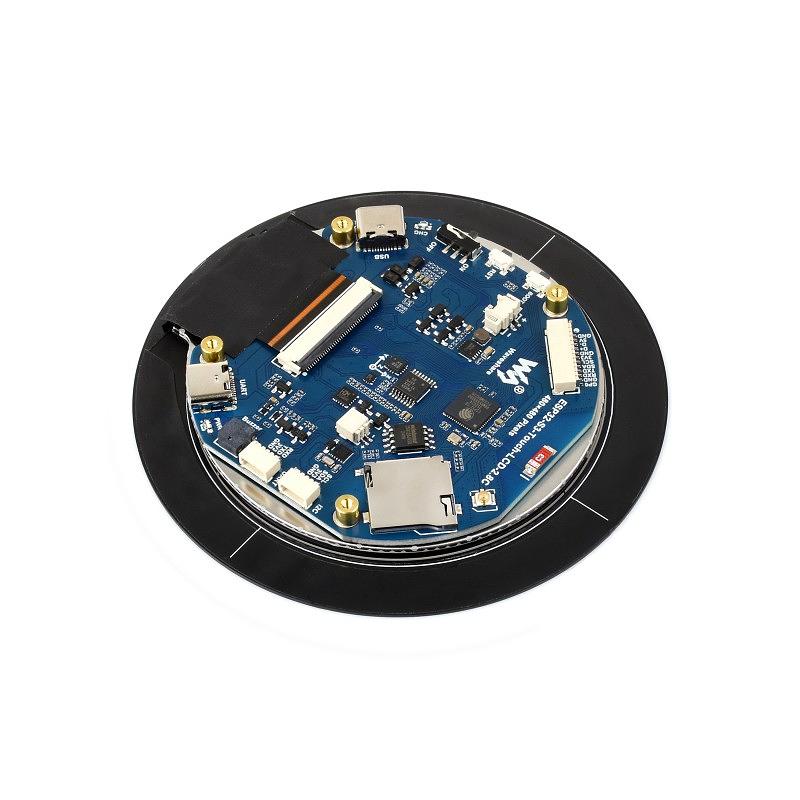

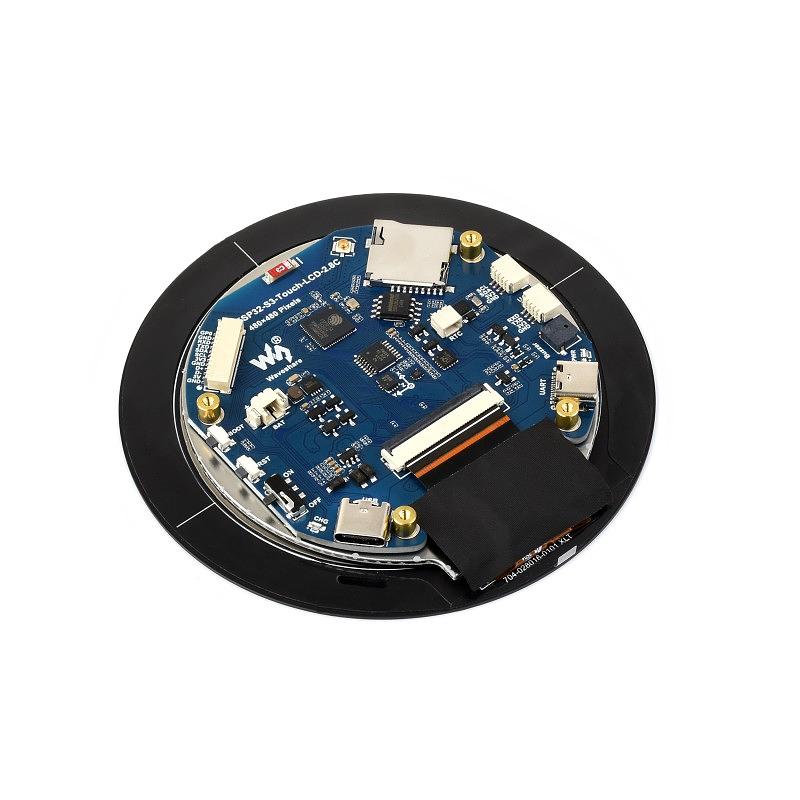

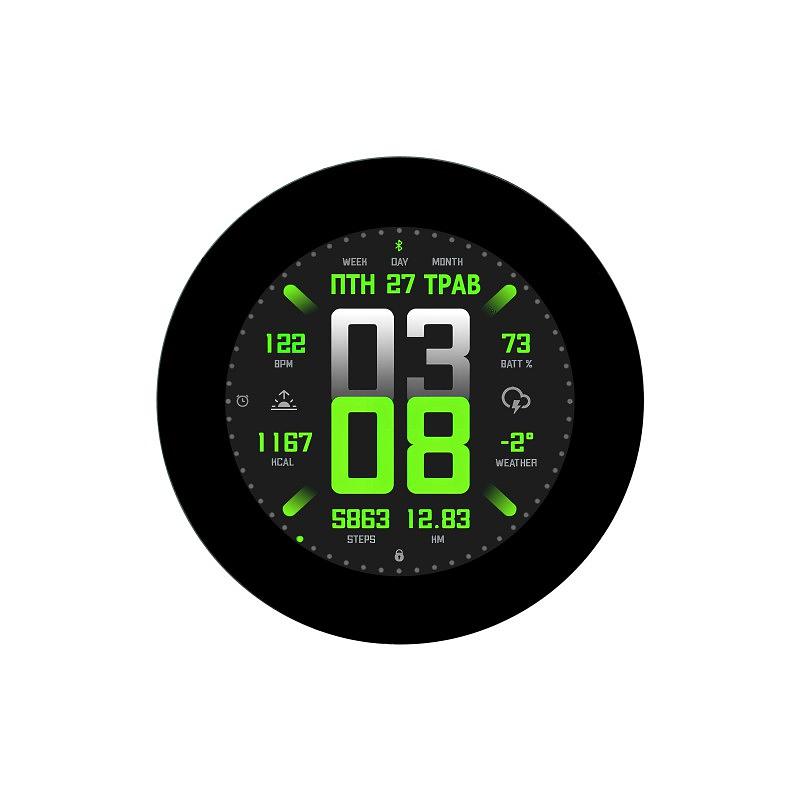

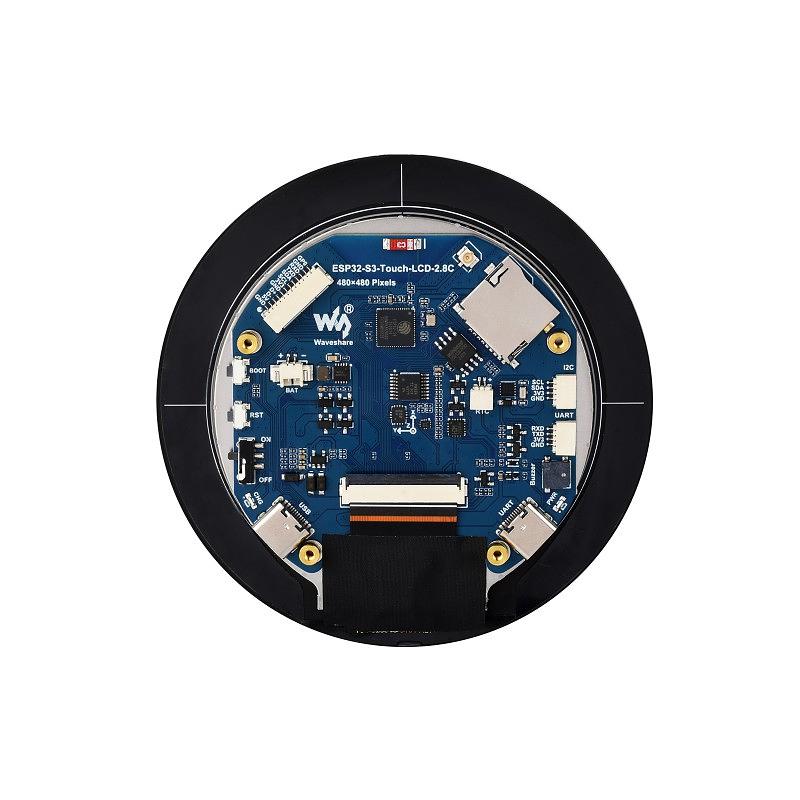

ESP32-S3 Touch LCD 2.8C 2.8in Round Display Board

Jargon buster

Plain-language definitions for the technical terms used above.

BLE

BLE stands for Bluetooth Low Energy, a Bluetooth mode designed for low power use and broad compatibility with modern phones and computers. It connects well to battery-powered and mobile devices, including Apple hardware, though it behaves differently from Bluetooth Classic and its serial-style profiles.

ESP-IDF

ESP-IDF is Espressif’s official software development framework for ESP32-family chips. It gives more direct control over the hardware than beginner-style environments, which can help with advanced features like Wi-Fi, Bluetooth, audio and power management.

ESP32

ESP32 is a family of low-cost microcontroller chips and modules from Espressif with built-in WiFi and Bluetooth. They support programmable firmware and over-the-air updates, and are commonly programmed with toolchains such as the Arduino core and ESP-IDF.

GPIO

General-purpose input/output pins are microcontroller pins you can set in software to read signals, switch devices on and off, or connect to peripherals. The number of GPIO pins matters because it limits how many buttons, LEDs, sensors, and other parts you can wire directly to the board.

Gyroscope

A gyroscope measures rotation, such as how fast a board is turning around its X, Y, and Z axes. This matters for projects like gesture controls, balancing robots, and motion tracking where tilt or rotation changes need to be detected.

Headers

Rows of connector contacts on a fixed pitch (commonly 2.54 mm) used to link a board to a breadboard, jumper wires, or another board. They come as male pin headers and female socket headers; when a module ships with pre-soldered headers it can be used straight away, whereas bare pads require soldering the pins yourself.

HMI

HMI stands for Human-Machine Interface, meaning the screen, buttons or controls a person uses to interact with a device. Describing something as suited to HMI use suggests it is intended for user-facing applications such as control panels, dashboards or instrument displays.

I2C

I2C is a two-wire communication bus used by many sensors and small modules. It matters because several I2C devices can share the same two wires, but each device needs a compatible address and your controller must support I2C.

IDE

Short for Integrated Development Environment, a program used to write, run and manage code. It matters because some learners prefer a traditional coding workspace instead of a guided notebook-style lesson.

IMU

An IMU (Inertial Measurement Unit) combines motion sensors, typically an accelerometer and gyroscope and sometimes a magnetometer, to measure movement and orientation. It can sense motion, tilt, vibration, rotation, and changes in direction, which is useful for tasks such as navigation, stabilisation, gesture detection, and asset tracking.

IPS

IPS is a type of LCD panel that keeps colours and contrast more consistent when viewed from an angle. This matters for small displays that may be mounted in a dashboard, handheld project, or enclosure where the viewer is not always looking straight on.

LCD

LCD stands for liquid crystal display, a screen technology that uses a backlight and liquid crystals to show images or text. It matters because LCD modules usually need a display driver and enough controller pins or a bus interface to send image data.

low dropout regulator

A voltage regulator (LDO) that maintains a steady output even when the input voltage is only slightly above the output. When a board includes an LDO, it can often run from a wider or lower supply range, such as 3-5 V, without needing a separate external regulator.

LVGL

LVGL is an open-source graphics library for building buttons, menus, gauges and other user interfaces on small embedded displays. Support for LVGL matters if you want to create a polished touchscreen interface without drawing every screen element from scratch.

RGB

Short for red, green and blue, the three primary colours of light that are mixed in varying amounts to make a wide range of colours. In electronics RGB can refer to an LED or pixel that blends these three colours, or to a colour signal or interface that carries separate red, green and blue channels.

RTC

A Real-Time Clock keeps track of time even when the main processor is asleep or powered down, usually with a small backup battery. It matters for data logging and tracking projects that need accurate timestamps.

SRAM

Fast temporary memory used by a processor while a program is running. More SRAM helps with projects that handle larger data buffers, networking, displays, or more complex code.

Type-C

USB Type-C (USB-C) is a small, reversible USB connector used for charging, power, and data transfer on many modern devices. A Type-C port or plug indicates the cable and charger connection needed to power, charge, or communicate with a device.

UART

UART is a simple asynchronous serial interface that sends data over separate transmit and receive wires, usually labelled TX and RX, with both ends set to the same baud rate. It is a common way for microcontrollers and other serial devices to exchange data.

USB Type-C

USB Type-C is a small, reversible USB connector used for power, data and sometimes video on many modern devices. The connector itself does not guarantee a particular speed or voltage, so check the supported USB version, data rate and whether it carries more than 5V via USB Power Delivery.
