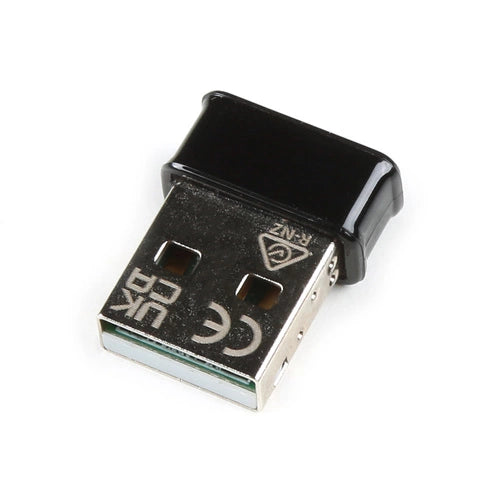

Edimax 2-in-1 Wi-Fi 4 N150 & Bluetooth® 4.2 Nano USB Adapter
All Products
New Arrivals
SparkFun
Bluetooth Modules
Wi-Fi Modules
Wireless & Connectivity
Connectivity
$35.05
|
In stock at supplier
The Edimax 2-in-1 Wi-Fi 4 N150 & Bluetooth® 4.2 Nano USB Adapter is a nano-sized USB Wi-Fi adapter with Bluetooth® 4.2 that supports Wi-Fi up to 150Mbps whil...
Get notified when back in stock
Estimated Delivery
Arrives
Disclaimer
Secure checkout
The Edimax 2-in-1 Wi-Fi 4 N150 & Bluetooth® 4.2 Nano USB Adapter is a nano-sized USB Wi-Fi adapter with Bluetooth® 4.2 that supports Wi-Fi up to 150Mbps while allowing users to connect to all the latest Bluetooth® devices such as mobile phones, tablets, mice, keyboards, printers and more. Supporting the latest Bluetooth® 4.2 version, this adapter offers ultra-low power consumption with Bluetooth® Low Energy (BLE) while transferring data or connecting devices. And with a tiny nano-size design you can easily plug it in without blocking any surrounding USB ports, for both Wi-Fi and Bluetooth connectivity at the same time.
Includes:
- USB adapter
- Driver install disc - available on Edimax website here
Features:
- Interface: USB 2.0 Type A
- LED Indicator: 1x Dual-Color LED (Link/Act/WPS) for Wi-Fi & Bluetooth
- Antenna: 1x Internal Antenna (1T1R)
- Dimensions: 18.9 (L) x 14.9 (W) x 7.1 (H) mm
- Weight: 3g
- Standards:
- 2.4GHz : IEEE 802.11 b/g/n
- 2.4GHz : Bluetooth® 4.2, 4.0, 2.1
- Frequency Band: 2.4GHz: 2.4000~2.4835GHz
- Subject to local regulations.
- Maximum Data Rate/Speed:
- 11b : 11Mbps
- 11g : 54Mbps
- 11n : 150Mbps
- Bluetooth® BR/EDR : 3Mbps
- Bluetooth® LE : 1Mbps
- Transmit Power: 2.4GHz
- 11b(11Mbps) : 17dBm±1.5dBm
- 11g(54Mbps) : 14dBm±1.5dBm
- 11n(20MHz, MCS7) : 13dBm±1.5dBm
- 11n(40MHz, MCS7) : 13dBm±1.5dBm
- Receiver Sensitivity: 2.4GHz
- 11b(11Mbps) : -82dBm±2dBm
- 11g(54Mbps) : -68dBm±2dBm
- 11n(20MHz, MCS7) : -66dBm±2dBm
- 11n(40MHz, MCS7) : -64dBm±2dBm
- Security:
- WPA3-SAE(Personal), WPA2, WPA, WEP and 802.1x
- Software WPS (Wi-Fi Protected Setup, driver installation required.)
- Supported Operating System:
- Windows 7/8/8.1/10/11 ( Wi-Fi & Bluetooth )
- Linux kernel 4.4 ~ 5.11 ( Wi-Fi & Bluetooth)
- Additional version information may be announced on the EDIMAX website.
- Temperature:
- Operating: 0~40°C (32~104°F)
- Storage: -20~65°C (-4~149°F)
- Humidity:
- Operating: 10~90% (Non-condensing)
- Storage: 10~90% (Non-condensing)
- Certification: BQB, CE, FCC, IC
Documents:
- Supplier Page & downloads - data sheet, etc...
- Datasheet
- User Manual
- Driver Installation for Jetson Nano
Jargon buster
Plain-language definitions for the technical terms used above.
- BLE
- BLE stands for Bluetooth Low Energy, a Bluetooth mode designed for low power use and broad compatibility with modern phones and computers. It connects well to battery-powered and mobile devices, including Apple hardware, though it behaves differently from Bluetooth Classic and its serial-style profiles.
- LED
- A light-emitting diode (LED) is a small electronic component that emits light when current flows through it in the correct direction. Because it only conducts one way, its polarity matters, and a through-hole LED must be soldered the correct way around to light up.
- USB 2.0
- USB 2.0 is a widely used wired standard for carrying both data and power between a device and a computer or other compatible host, with data rates up to 480 Mbps. It indicates the kind of port a device uses and that it should work with most modern and many older computers.
