8-Position SMD DIP Switch
· MPN: COM-30230
This compact surface-mount DIP switch provides 8 individual switch positions for adding simple, user-selectable controls to a PCB.Each position is an SPST sl...
Get notified when back in stock

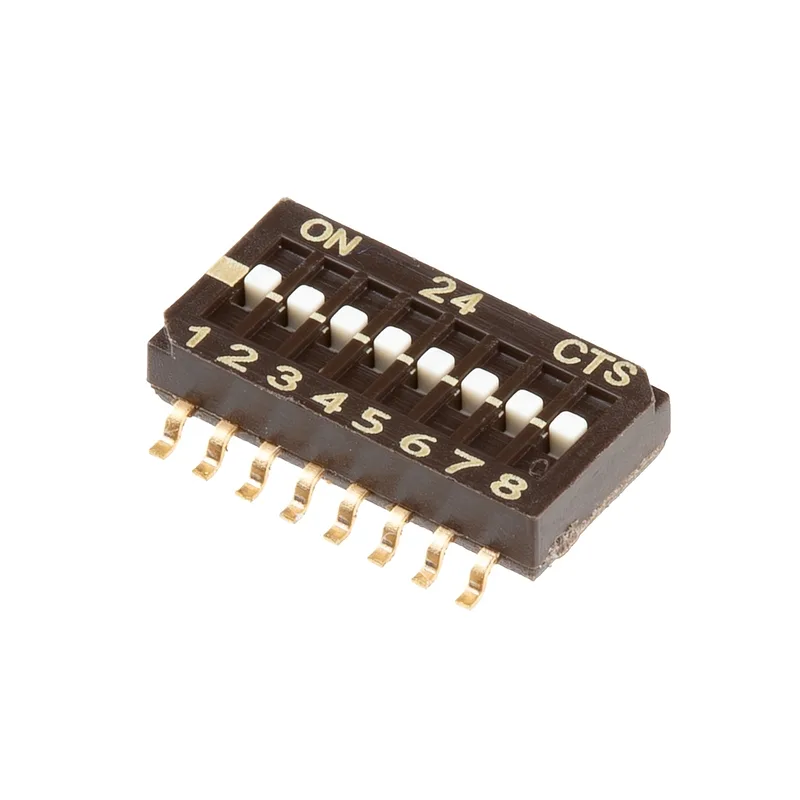

This compact surface-mount DIP switch provides 8 individual switch positions for adding simple, user-selectable controls to a PCB.
Each position is an SPST slide switch, making it suitable for general control switching in embedded projects, configuration inputs, mode selection and similar low-current applications.
The part uses gull wing terminations for surface-mount assembly and has epoxy sealed terminals with a tape seal, making it suitable for washable board processes where required.
Specifications:
- Circuit: SPST
- Number of Positions: 8
- Current Rating (Amps): 25mA
- Voltage Rating: 24VDC
- Actuator Type: Slide (Standard)
- Actuator Level: Flush, Recessed
- Contact Material: Beryllium Copper
- Contact Finish: Gold
- Height Above Board: 0.104" (2.65mm)
- Mounting Type: Surface Mount
- Termination Style: Gull Wing
- Pitch: 0.050" (1.27mm), Half
- Washable: Yes
- Features: Epoxy Sealed Terminals, Tape Seal
- Operating Temperature: -55°C ~ 85°C
- Length: 0.446" (11.33mm)
- Electrical Life: 1,000 Cycles
- Mfg #: 218-8LPSTR
