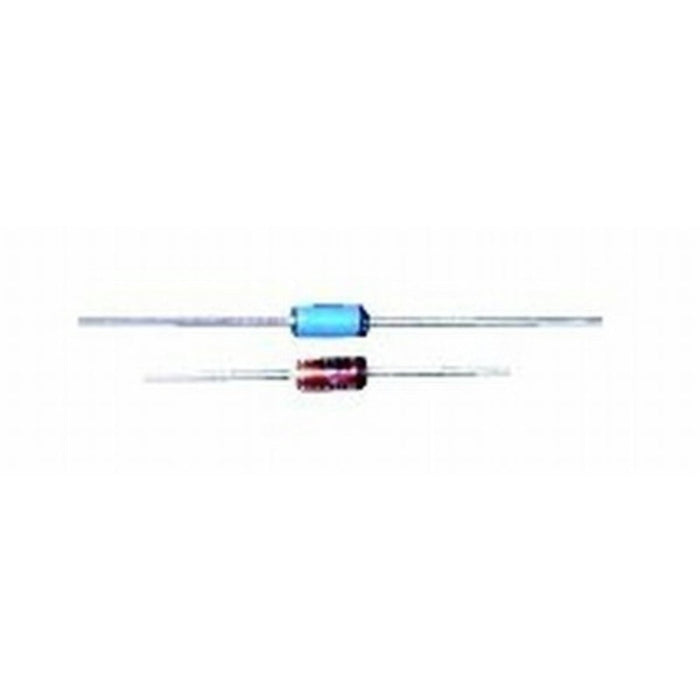

DIODE 1N5819 SCHOTTKY 40V 1A DO41

Jargon buster

Plain-language definitions for the technical terms used above.

1N5819

A common Schottky diode with a low voltage drop and modest current rating. It is useful in low-voltage circuits where saving voltage and reducing heat are important.

DC

DC means direct current, where electricity flows in one constant direction, as supplied by batteries, USB ports and many plug-pack power supplies. When a product specifies DC, it runs from a DC supply rather than mains AC, so you need to provide the correct voltage and polarity.

DO-41

A standard through-hole package size used for many small rectifier diodes. Knowing the package helps you check whether the part will physically fit your breadboard, stripboard, or PCB layout.

flyback protection

A protection method used with coils such as relays, solenoids, and motors to absorb the voltage spike created when the coil is switched off. Adding a diode for flyback protection helps prevent damage to transistors, microcontrollers, or other control electronics.

Forward voltage drop

Forward voltage drop is the small amount of voltage lost across a diode or diode-like circuit when current flows through it. A lower drop is important because it wastes less power and helps keep the rest of the project supplied with enough voltage.

microcontroller

A microcontroller is a small computer on a single chip that runs a stored program and controls connected inputs and outputs such as buttons, sensors, displays and communication interfaces. In a device built around one, it is the part that executes the code and coordinates the device's behaviour.

rectifier diode

A diode designed to let current flow mainly in one direction, often used to convert AC into DC or to protect circuits from reverse current. It matters because rectifier diodes are chosen for power handling rather than fast signal switching.

reverse polarity protection

A circuit feature that helps protect the board if power is connected the wrong way around. It matters because it can reduce the chance of damaging the breakout during wiring mistakes, especially in classroom or prototyping use.

schottky

A Schottky diode is a type of diode with a low forward voltage drop and very fast switching. It matters when choosing parts for power protection, voltage regulation, or high-speed circuits because it wastes less power than many standard diodes but usually has higher reverse leakage and lower voltage ratings.

Schottky diode

A diode type with a low forward voltage drop and fast switching behaviour. It is useful when you want less power loss or quicker response, such as in battery-powered circuits, switching supplies, or reverse-current protection.

through-hole

A mounting style where the component leads pass through holes in a circuit board and are soldered on the other side. Through-hole parts are often easier to handle and solder by hand, which is useful for classroom and hobby projects.
