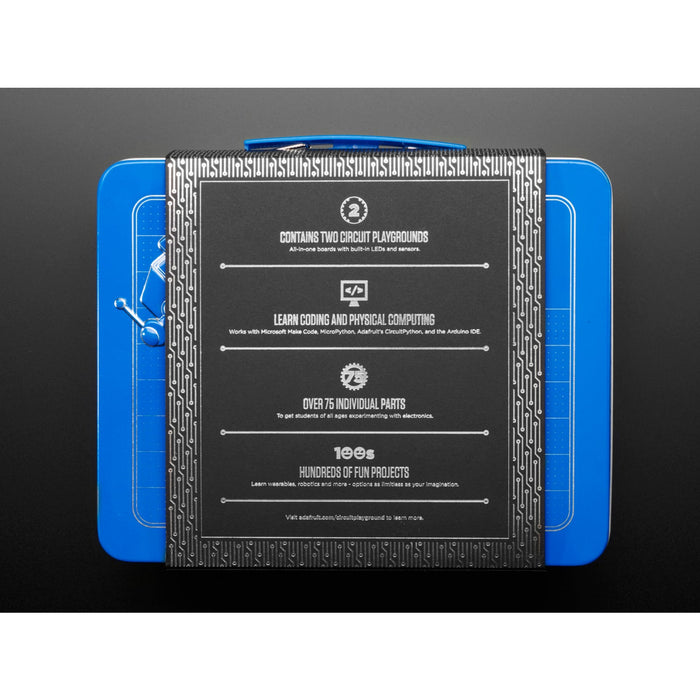

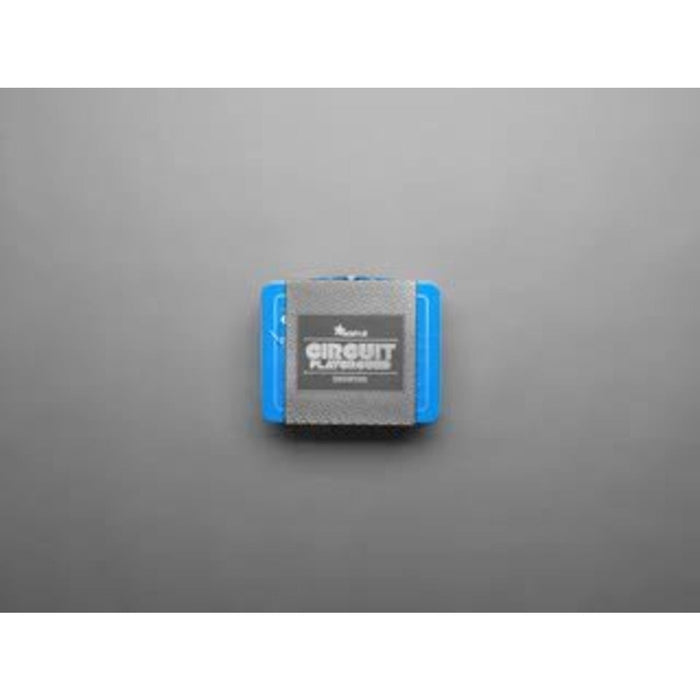

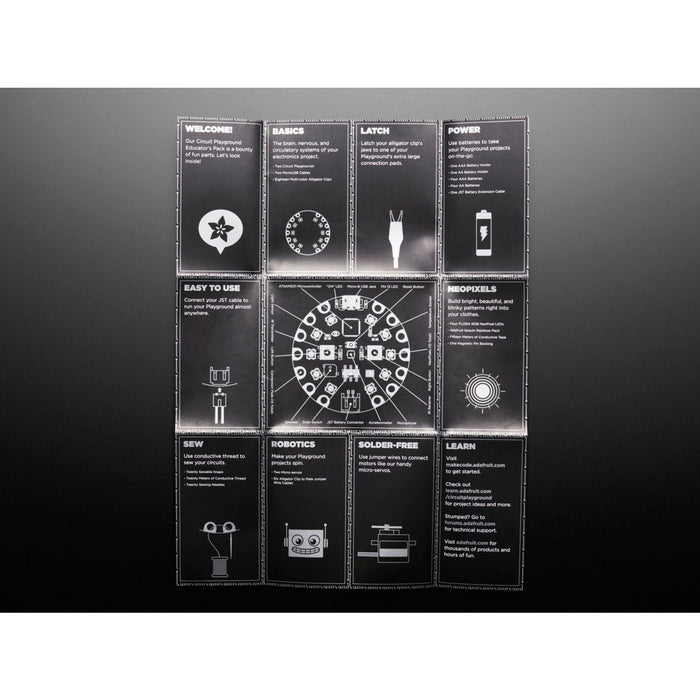

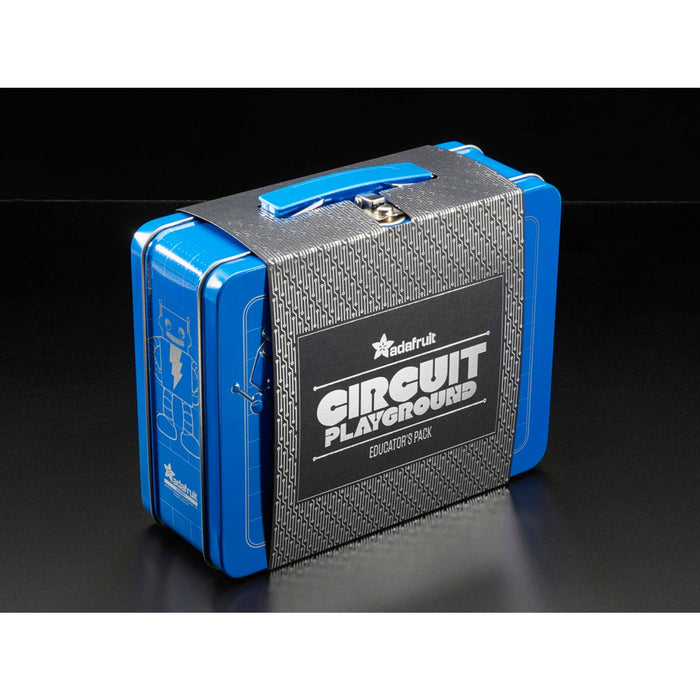

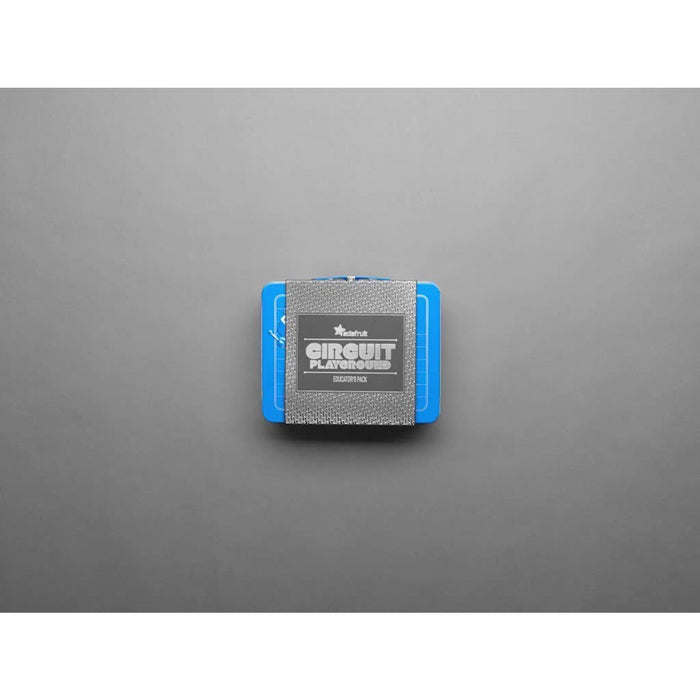

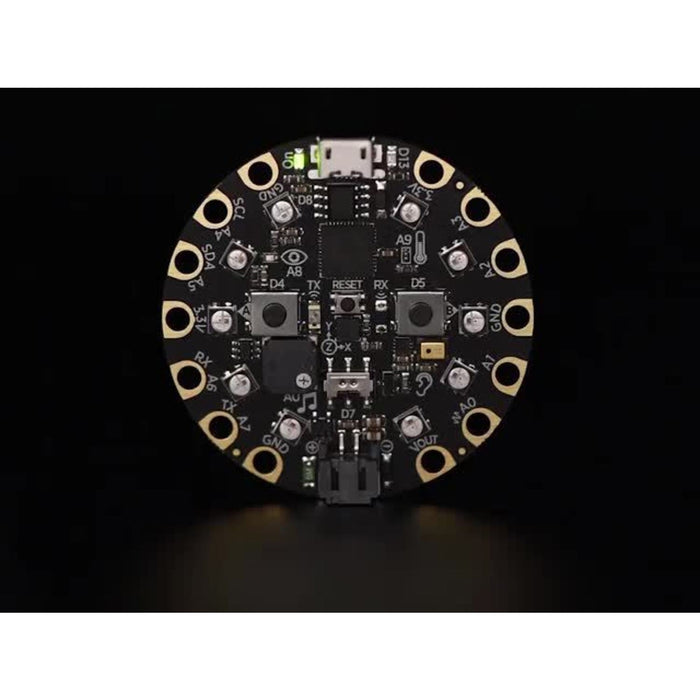

Circuit Playground Express Educator's Pack

Jargon buster

Plain-language definitions for the technical terms used above.

alligator clip

An alligator clip is a spring-loaded metal clip used to make temporary electrical connections to wires, terminals or test points. It is useful for quick bench testing, but it is less secure than a screw terminal or locking connector.

CircuitPython

A beginner-friendly version of Python designed to run directly on microcontroller boards. If a product supports CircuitPython, you can often program it by copying code files onto the board rather than setting up a more complex toolchain.

conductive thread

Thread made with metal or other conductive fibres so it can carry electricity while being sewn into fabric. It matters for wearable and textile projects because it can replace wire, but it has more resistance than normal hookup wire.

I2C

I2C is a two-wire communication bus used by many sensors and small modules. It matters because several I2C devices can share the same two wires, but each device needs a compatible address and your controller must support I2C.

IDE

Short for Integrated Development Environment, a program used to write, run and manage code. It matters because some learners prefer a traditional coding workspace instead of a guided notebook-style lesson.

LED

A light-emitting diode is a small electronic component that lights up when current flows through it in the correct direction. In this kit, LEDs create the flashing effect, so polarity and correct soldering matter for the project to work.

LIS3DH

A specific low-power 3-axis accelerometer chip made by STMicroelectronics. Knowing the chip part number helps you find the correct datasheet, libraries, wiring details, and limits such as its safe voltage range.

MEMS microphone

A tiny microphone made using micro-electromechanical systems, the same style of miniature manufacturing used in many phone sensors. It lets the board detect sound without needing an external microphone, which is useful for noise-reactive projects and simple audio input.

MIDI

MIDI is a standard way for electronic instruments, controllers, and software to send musical control messages such as notes, velocity, and timing. If a board supports MIDI, it can be triggered from keyboards, drum pads, sequencers, or other music gear rather than only from buttons or code.

NeoPixel

A type of addressable LED system where colour data is sent along a single digital data line from one LED or controller to the next. Compatibility matters because the timing and signal format must match for the lights or driver board to respond correctly.

pH

A measure of how acidic or alkaline a liquid is, on a scale where 7 is neutral. For a water monitoring kit, pH tells you about water chemistry and whether the included probe matches the range and accuracy your project needs.

phototransistor

A light-sensitive transistor that changes its electrical output when light hits it. Compared with a modulated IR receiver, a simple phototransistor can be more affected by ambient light, so it may need extra filtering or careful setup.

Proximity sensor

A sensor that detects when an object is nearby without needing physical contact. For this product it matters because the useful detection range is short, up to about 200 mm, so it suits touch-free triggers and close object detection rather than long-distance measuring.

PWM

Pulse Width Modulation is a way for a digital pin to simulate variable output power by switching on and off very quickly. It matters for controlling things like LED brightness, motor speed, or servo-style signals from a microcontroller pin.

RGB

Short for red, green and blue, usually referring to an LED that can mix those three colours. It matters because controlling an RGB LED teaches how separate outputs combine to create different colours.

servo

A servo is a motor with built-in position control, usually told to move to a specific angle by a control signal. It matters when you need repeatable movement, such as steering, arms, flaps, or linkages, rather than continuous spinning.

SPI

A fast serial communication bus often used for displays, memory cards, and sensors. It matters because SPI devices need specific pins for clock and data, plus a separate chip-select line for each device.

Thread

A low-power wireless mesh networking standard designed for smart home and IoT devices. It matters because Thread devices can relay messages through each other, helping build reliable networks for sensors and controllers.

UART

UART is a simple serial connection that sends data over separate transmit and receive wires, often labelled TX and RX. It matters because this module is designed to replace a wired UART cable with a wireless link while keeping the same serial data format.
