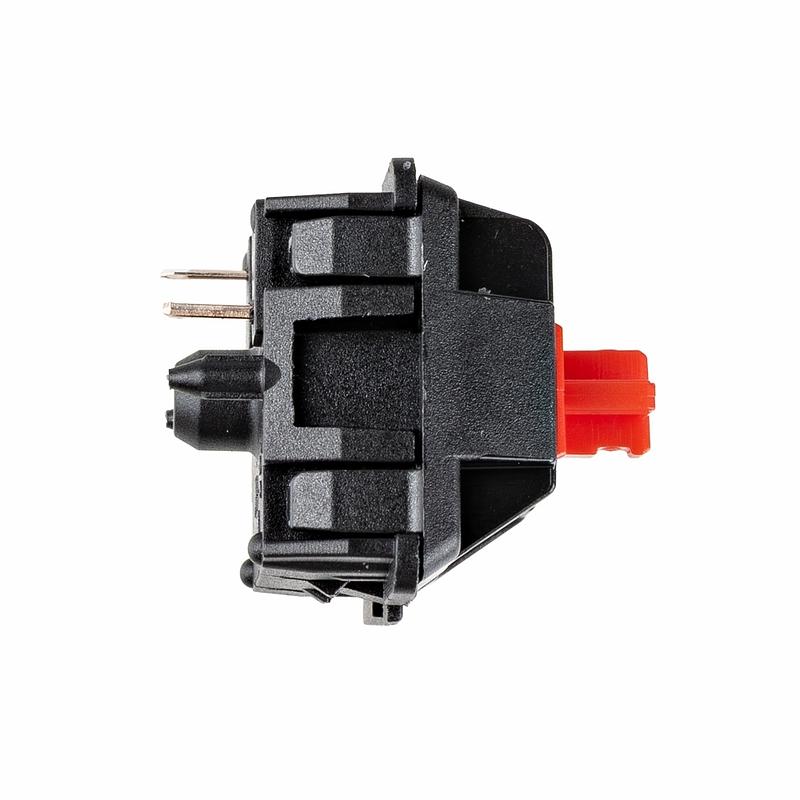

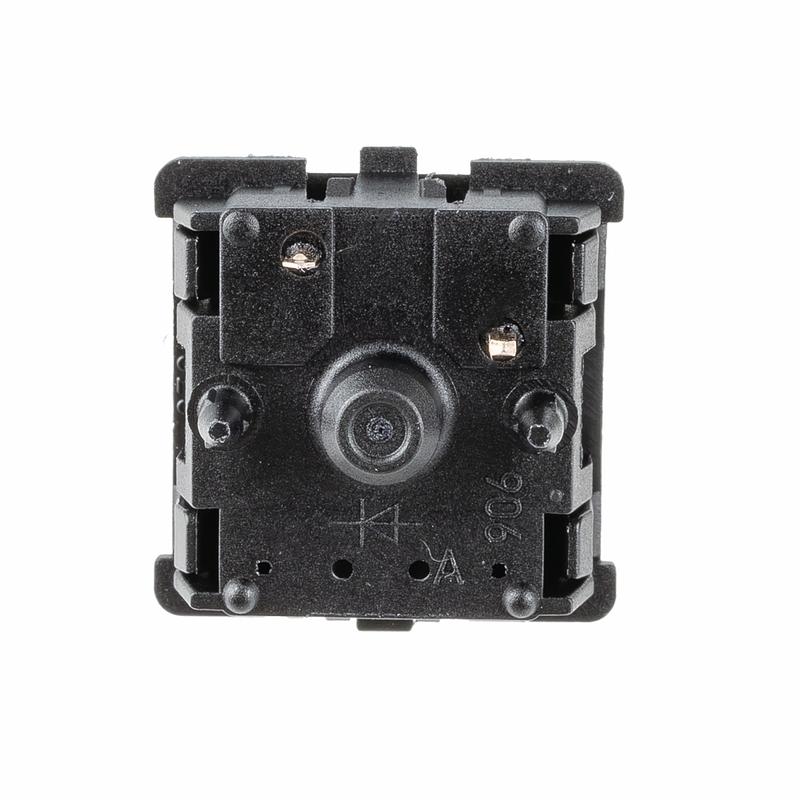

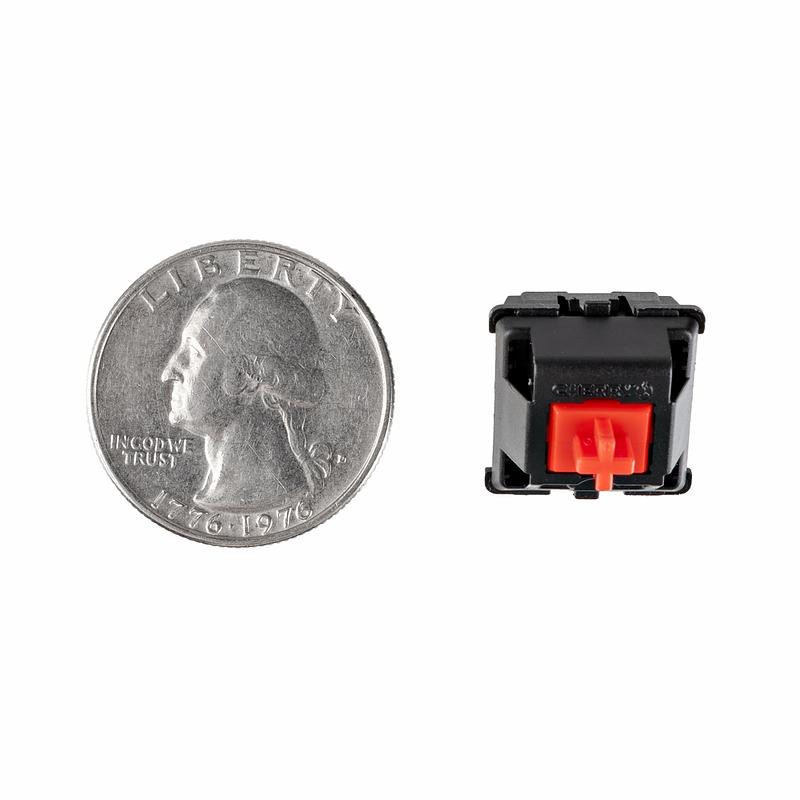

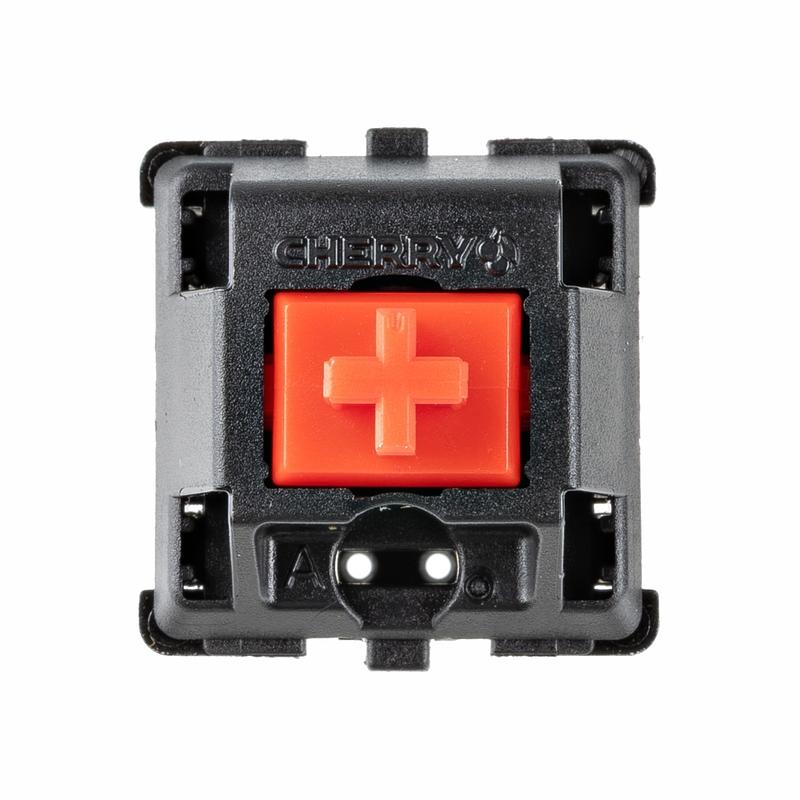

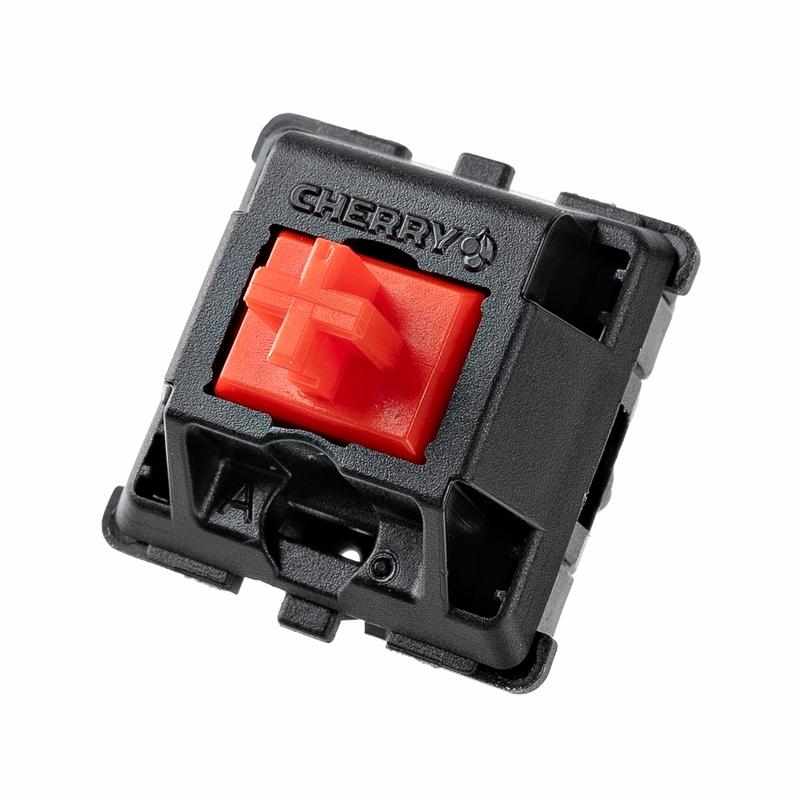

Cherry MX2A Red Linear Mechanical Keyswitch

This Cherry MX2A Red switch is a linear mechanical keyswitch for custom keyboards, replacement keyboards and embedded human-machine interfaces. It is suited to builds where you want a smooth, direct keypress without a tactile bump or audible click.

The MX2A generation refines the classic Cherry MX design with factory-applied lubrication, an optimised spring and improved housing geometry. This helps deliver smoother key travel, reduced spring noise and a typing feel that remains compatible with standard Cherry MX keycaps and PCBs.

The housing includes a built-in recess for a standard 3mm LED, making it easier to add under-key illumination in your own keyboard or control panel design. For prototyping, it can also be paired with a matching switch breakout board for simpler wiring.

Features:

• MX2A linear mechanical keyswitch: Designed for custom and replacement keyboards, as well as embedded human-machine interfaces.
• Smooth, uninterrupted keystroke: Linear action with no tactile bump or audible click.
• Factory-lubricated: Provides smoother operation.
• Gold crosspoint contacts: Self-cleaning, gold-plated triangular cross-contacts provide permanent corrosion protection.
• Plate and PCB mount compatible: Suitable for standard keyboard mounting approaches.
• Standard Cherry MX keycap compatible: Works with standard Cherry MX keycaps.
• Upper Housing: CAD-engineered with sub-0.01mm tolerances to ensure precise switching-slide guidance.
• Linear Switching Slide/Stem: Engineered to control pre-travel and keystroke feel, featuring a straight TLS surface that delivers direct triggering and the signature linear characteristics of the MX Red.
• Gold Crosspoint Contact: Self-cleaning, gold-plated triangular cross-contacts meet at precise right angles to provide permanent corrosion protection.
• Precision Coil Spring: The high-density molecular structure of the spring’s metal alloy is individually calculated and optimised to provide consistent pressure resistance for the switch's specific actuation force.
• Dual-Functional Housing Base: Engineered from a plastic polymer/glass-fibre blend to serve as both the internal mount for the switching mechanism and the external mounting surface for the keyboard.
• LED recess: Built-in recess accommodates a standard 3mm LED.

Specifications:

• Actuation point: 2.0mm
• Total travel: 4.0mm
• Actuation lifespan: Rated for more than 100 million actuations

A solid choice for keyboard enthusiasts, game controllers, macro pads and maker projects that need a reliable, smooth mechanical switch.
