Button Pad 2x2 Top Bezel

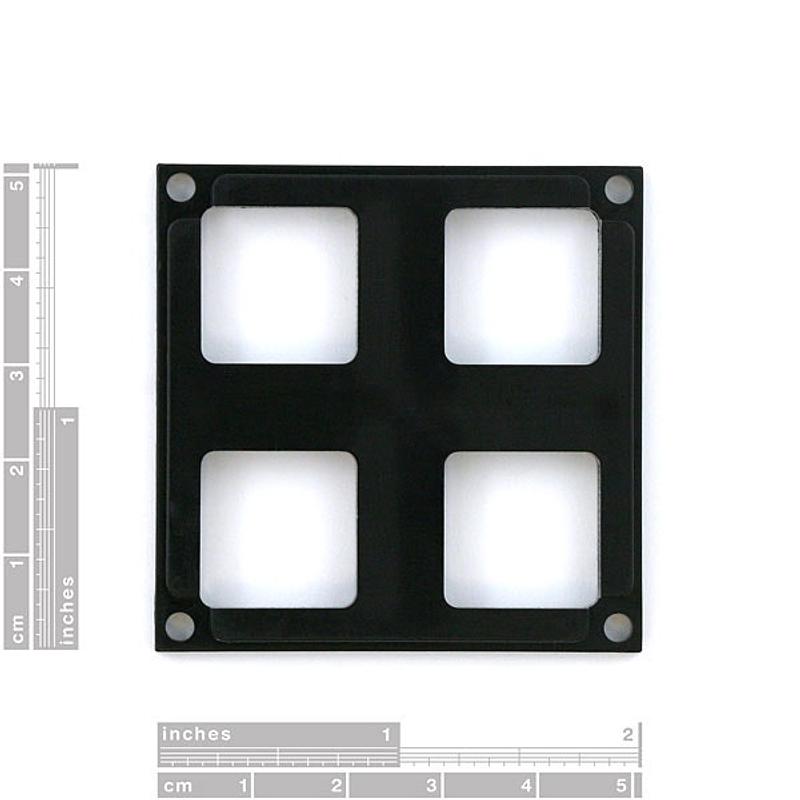

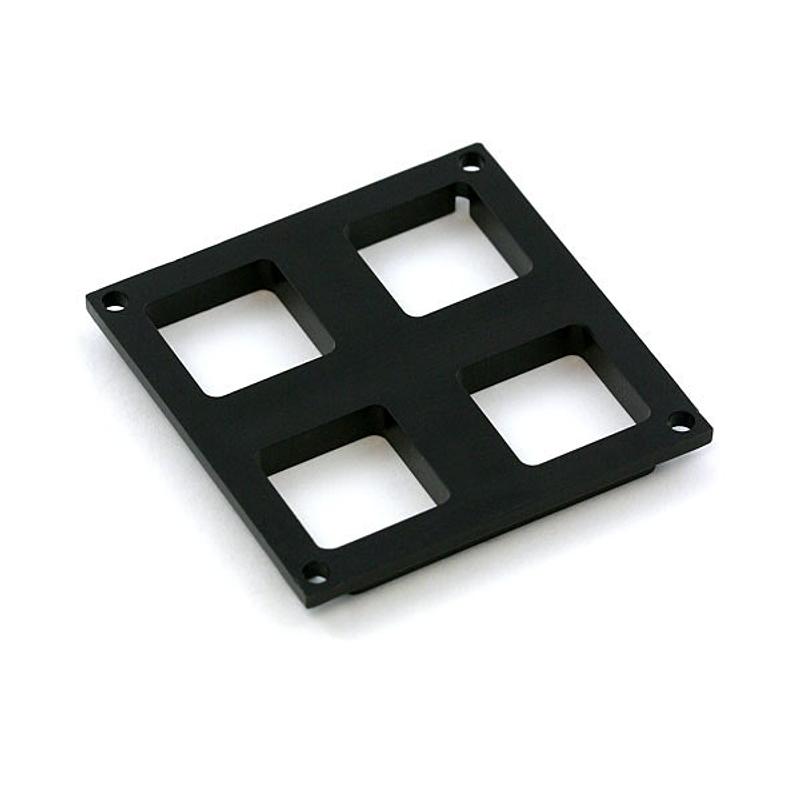

This is a black plastic bezel, custom made to mate with the silicon rubber pads. Black 1/8" ABS plastic. We use four 4/40-0.5" size screws matched with pl...

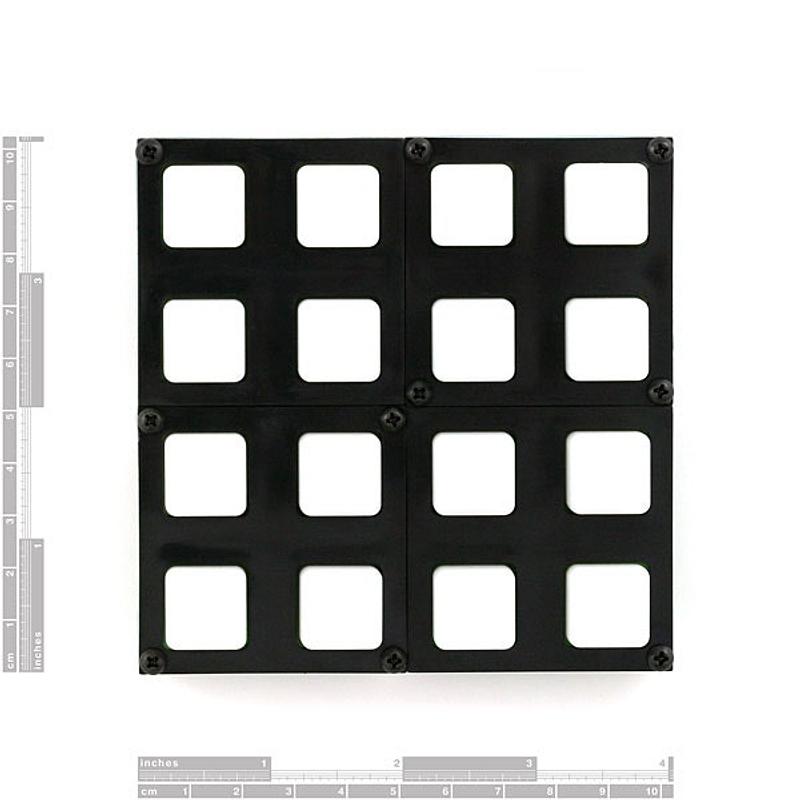

This is a black plastic bezel, custom made to mate with the silicon rubber pads. Black 1/8" ABS plastic. We use four 4/40-0.5" size screws matched with plastic standoffs to attach the 2x2 button pad and Simon project boards. Using two of these bezels with two of the bottom bezels will create a 4x4 bezel appropriate for the full button pad.
Documents:
Find this product in
Components
Button Pad 2x2 Bezel Dimensional Drawing
Mechanical Drawings · 41.1 KB · Click any page to view full size
Button Pad 2x2 Bezel Multi-Unit Assembly Guide
User Guide · 117.7 KB · Click any page to view full size
