Breadboard to JST-GHR-06V Cable - 6-Pin 1.25mm
· MPN: CAB-23353
This handy cable connects a six pin GHR-06V type locking connector to breadboard-friendly male pins, making it easier to prototype with compact modules.The 1...

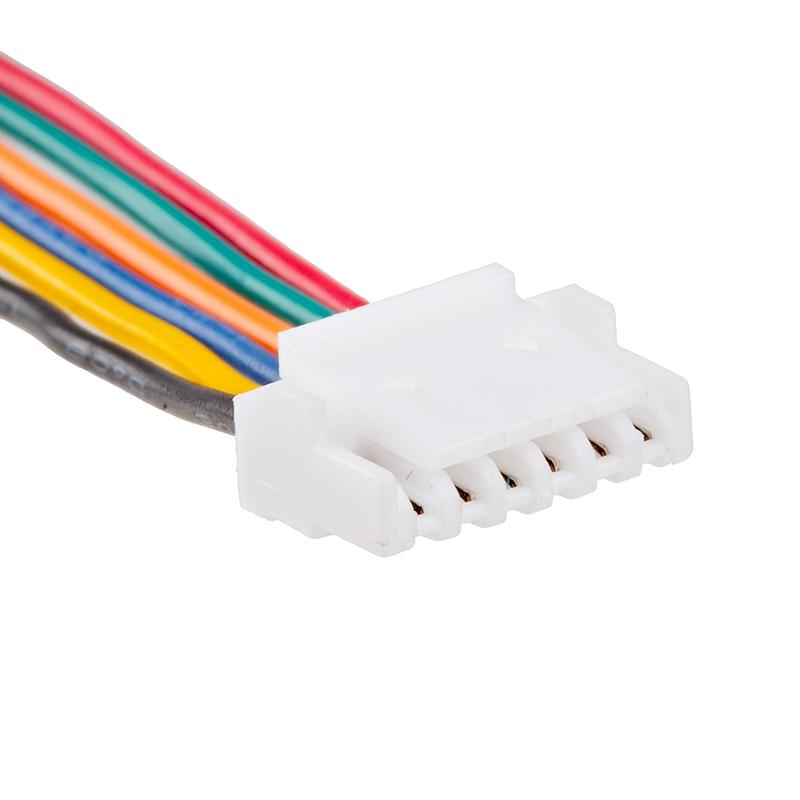

This handy cable connects a six pin GHR-06V type locking connector to breadboard-friendly male pins, making it easier to prototype with compact modules.
The 1.25mm pitch GHR-06V locking JST connector is commonly found on some sensors, radios and other small devices. It is also suited to use with LoRaSerial hardware that uses this connector style.
Use it when you need to bring a small locking JST connection out to standard male pins for quick testing, wiring or breadboard work.
Features:
- Connector: 1.25mm pitch GHR-06V 'locking' JST connector
- Breadboard connection: Breadboard friendly male pins
- Typical applications: Sensors, radios, and other small devices
Specifications:
- Wire gauge: 28 AWG
- Connector type: GHR-06V type locking connector
- Pin count: six pin
- Pitch: 1.25mm
Jargon buster
Plain-language definitions for the technical terms used above.
- AWG
- American Wire Gauge is a numbering system for wire thickness, where a lower number means a thicker wire. The AWG rating matters because thicker wire can usually carry more current with less voltage drop and heating.
