BNC Male Plug Terminal Block
$2.30
|
In stock
A BNC (Bayonet Neill–Concelman) male plug with a screw terminal block for solderless connections. Use stranded or solid-core wire and a small screwdriver to ...
Get notified when back in stock
Estimated Delivery
Arrives
Disclaimer
Secure checkout

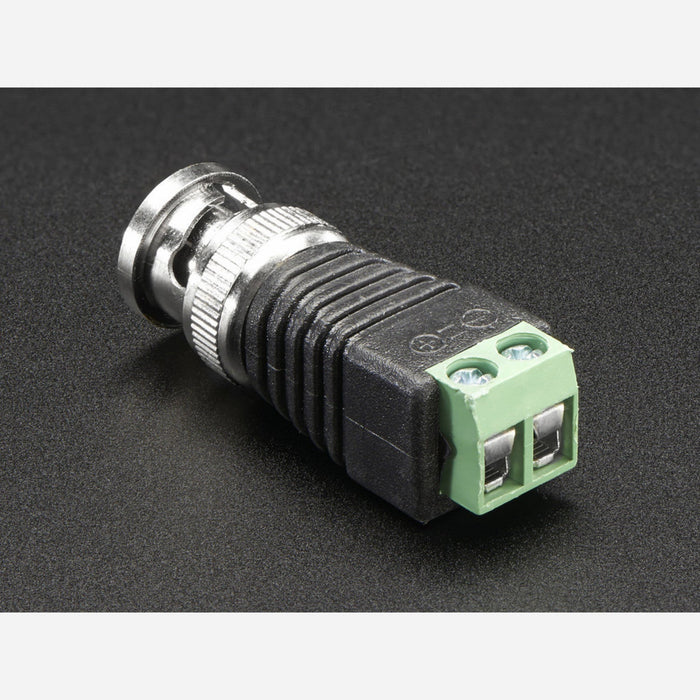

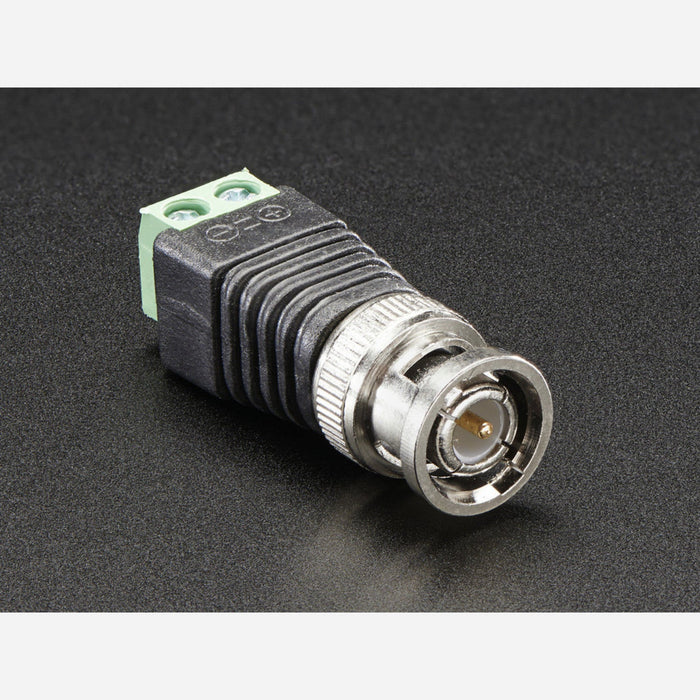

A BNC (Bayonet Neill–Concelman) male plug with a screw terminal block for solderless connections. Use stranded or solid-core wire and a small screwdriver to create custom wiring jigs for test equipment, video signals, and more — no soldering required.
Key Features
- Screw Terminal Block – Solderless connection with stranded or solid-core wire
- BNC Male Plug – Standard bayonet connector for signal applications
- No Soldering Required – Just a small screwdriver
Common Applications
- Analogue and serial digital video signals
- DIY radio antennas
- Test equipment connections
- Composite video
Note: BNC connectors are typically used with coaxial cable of specific impedance. If you have impedance matching requirements, a purpose-built coaxial assembly may be more suitable.
Package Contents
- 1× BNC male plug terminal block
Also available: BNC Female Jack Terminal Block
Jargon buster
Plain-language definitions for the technical terms used above.
- Impedance
- Impedance is the total opposition a component or circuit presents to alternating current, measured in ohms, combining resistance with frequency-dependent reactance. It appears in many contexts, such as matching a speaker's impedance (for example 4 ohm or 8 ohm) to an amplifier or the input and output impedance of signal circuits, and a correct match helps avoid weak signals, distortion or damage.
- Terminal block
- A terminal block is a connector that joins wires together in a neat, removable, or serviceable way, usually clamping each wire under a screw or spring instead of soldering. It makes it easier to connect, change, or service wiring without permanent joints.
