Blue SMD LED - 1206
· MPN: COM-17734
This basic blue surface-mount LED is a compact 1206 component suited to indicators, status lights and small embedded electronics projects.It is the same blue...

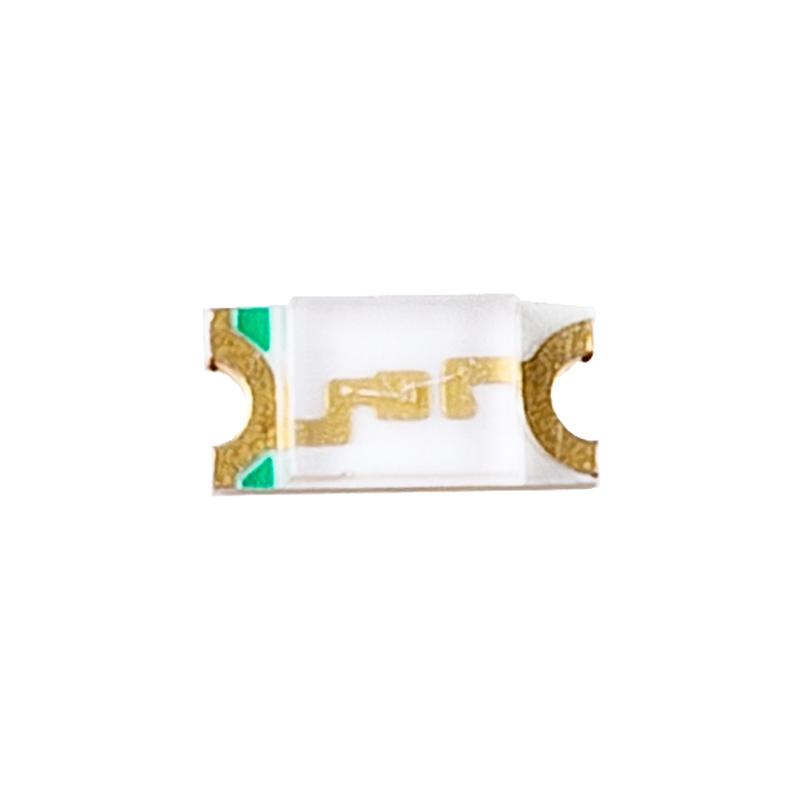

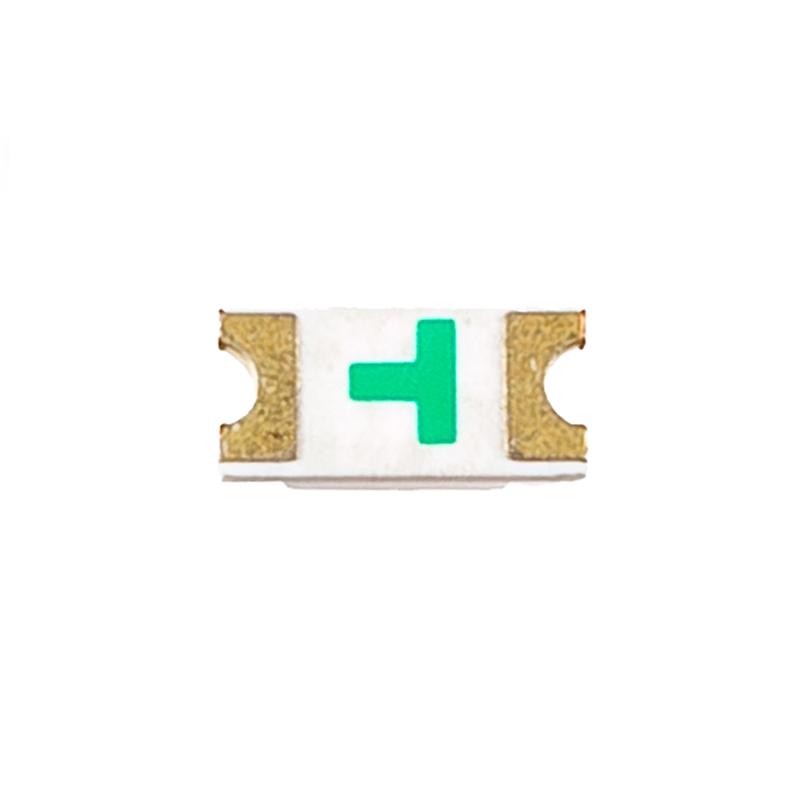

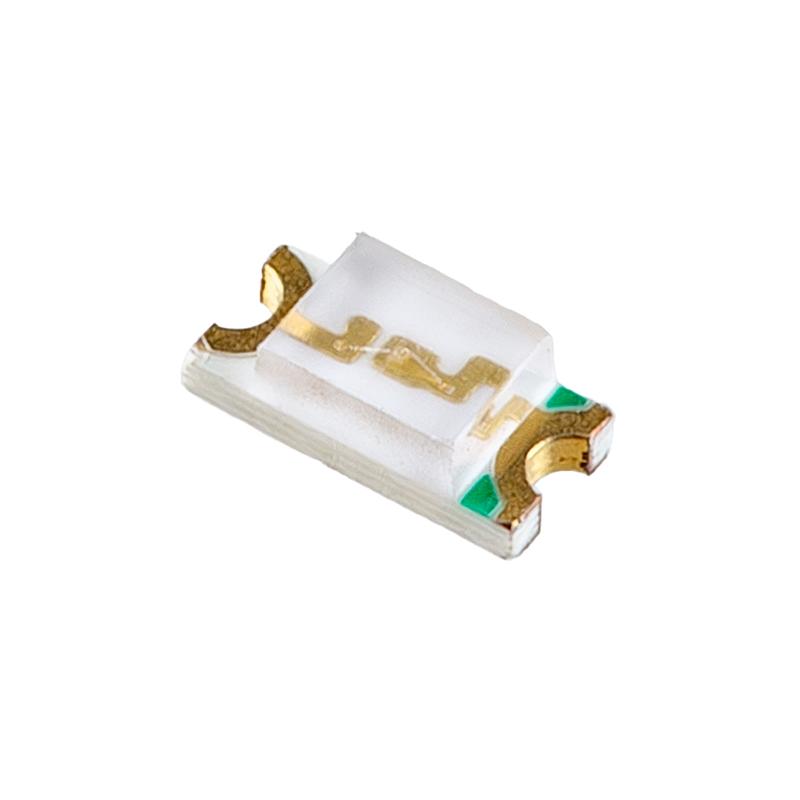

This basic blue surface-mount LED is a compact 1206 component suited to indicators, status lights and small embedded electronics projects.
It is the same blue LED used on SparkFun's RedBoard line of products and many more, making it a handy replacement or matching part for compatible designs.
A datasheet is available from the supplier documentation for detailed electrical and mechanical reference when laying out your PCB.
Specifications:
- Color: Blue
- Millicandela Rating: 104mcd
- Lens Style: Rectangle with Flat Top
- Lens Color: Colorless
- Lens Transparency: Clear
- Lens Size: 2.06mm x 1.60mm
- Voltage - Forward (Vf) (Typ): 3.3V
- Current - Test: 20mA
- Viewing Angle: 130°
- Mounting Type: Surface Mount
- Wavelength - Dominant: 470nm
- Wavelength - Peak: 468nm

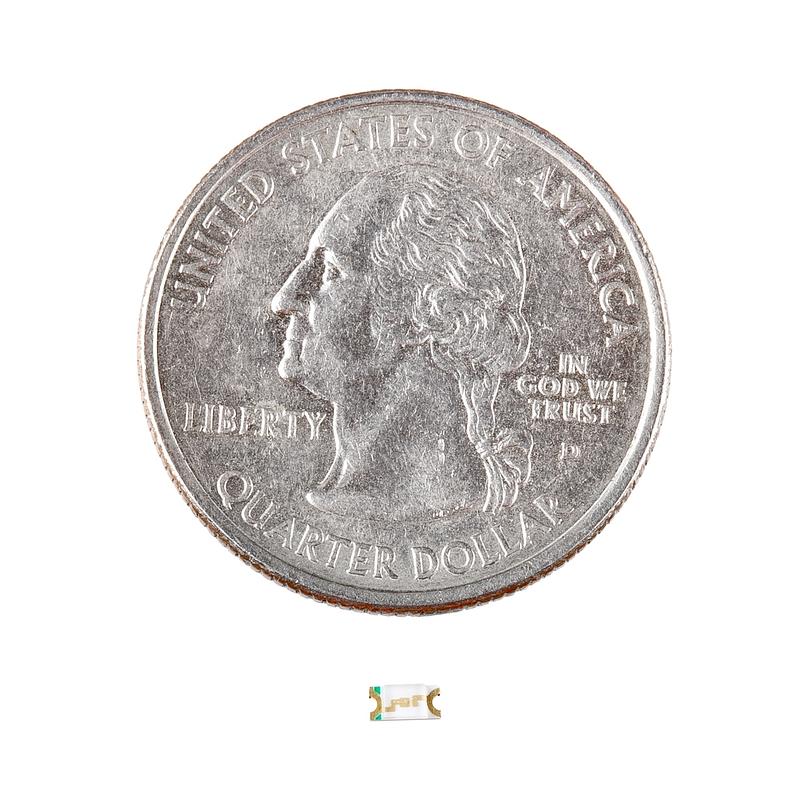

- Dimensions: 3.20 L x 1.60mm W
- Height (Max): 1.10mm
Useful for compact PCB indicator designs, repairs, and projects that need a small blue 1206 SMD LED.
Jargon buster
Plain-language definitions for the technical terms used above.
- LED
- A light-emitting diode is a small electronic component that lights up when current flows through it in the correct direction. In this kit, LEDs create the flashing effect, so polarity and correct soldering matter for the project to work.
- PCB
- A printed circuit board is a rigid board with copper tracks that connect electronic parts without loose wires. For this kit, the PCBs also form the airplane shape, so they are both the circuit base and part of the finished model.
