Balun Ember Transformer (Strip of 5)
This is a simple strip of five signal-conditioning Balun Ember Transformers from Wurth Elektronik that allows you to convert an unbalanced signal in a transm...
Get notified when back in stock

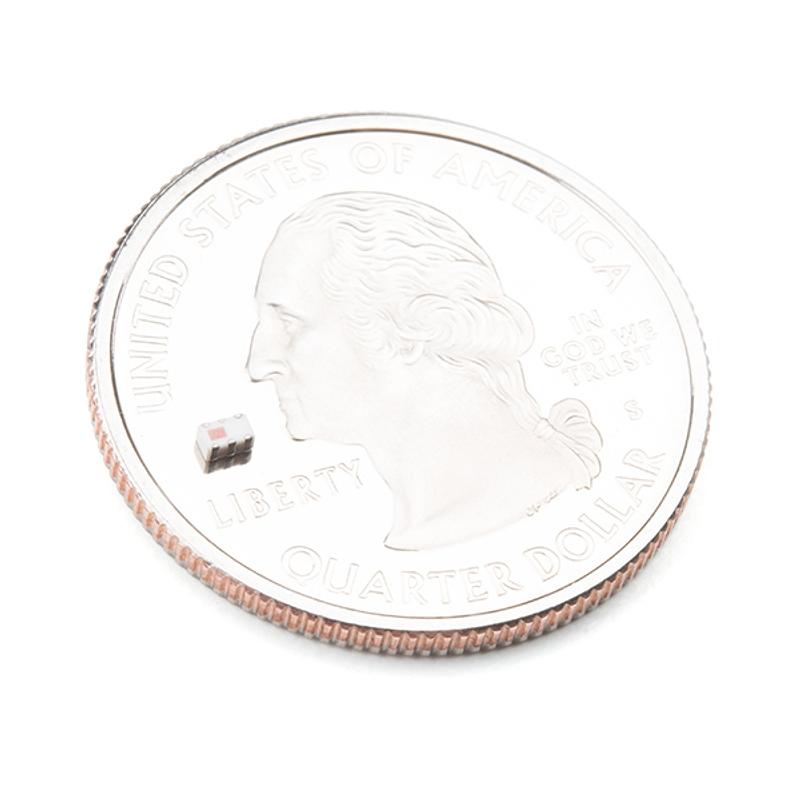

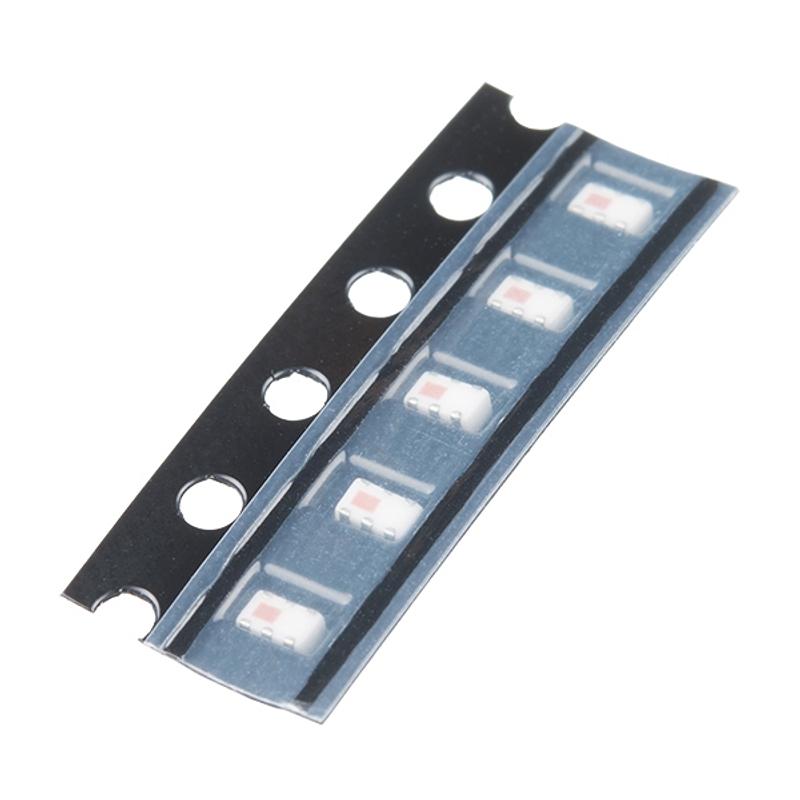

This is a simple strip of five signal-conditioning Balun Ember Transformers from Wurth Elektronik that allows you to convert an unbalanced signal in a transmission line to a balanced one, or vice versa. Each of these ICs possesses a frequency range of 2400MHz to 2500MHz with an impedance of 50 ohms unbalanced and 100 ohms balanced.
These specific transformers were once used in our ATmega128RFA1 Development Board but, sadly, are no longer needed. We have made them available at a drastically reduced price for anyone who could possibly use one (or five) of these handy little ICs.
Note: Since this product belongs to our “Ding & Dent” category, once we are out of stock, we will not carry it again. Get them while you can!
Jargon buster
Plain-language definitions for the technical terms used above.
- Impedance
- Impedance is the total opposition a component or circuit presents to alternating current, measured in ohms, combining resistance with frequency-dependent reactance. It appears in many contexts, such as matching a speaker's impedance (for example 4 ohm or 8 ohm) to an amplifier or the input and output impedance of signal circuits, and a correct match helps avoid weak signals, distortion or damage.
