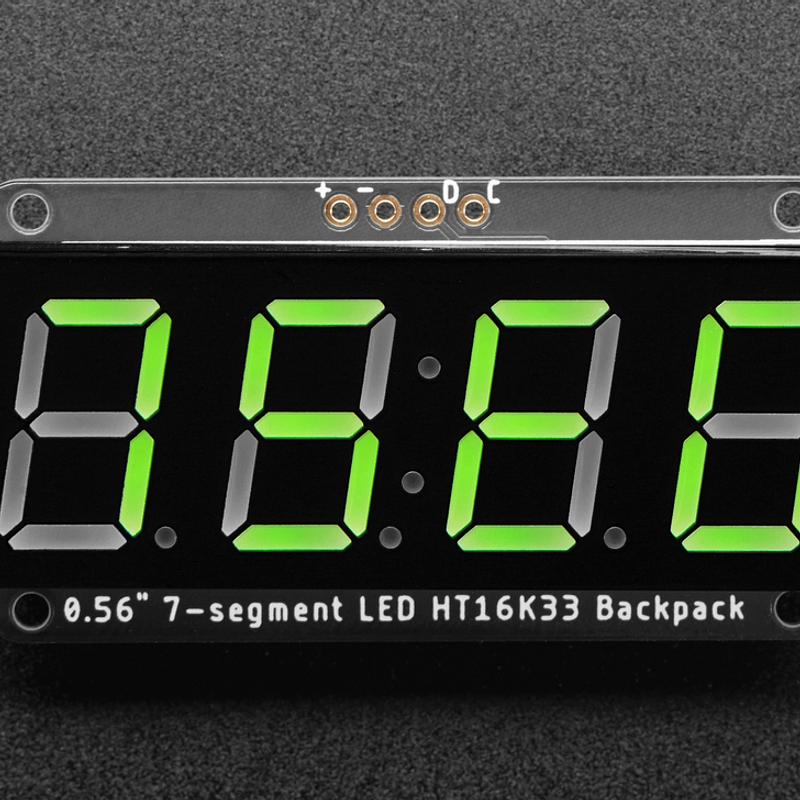

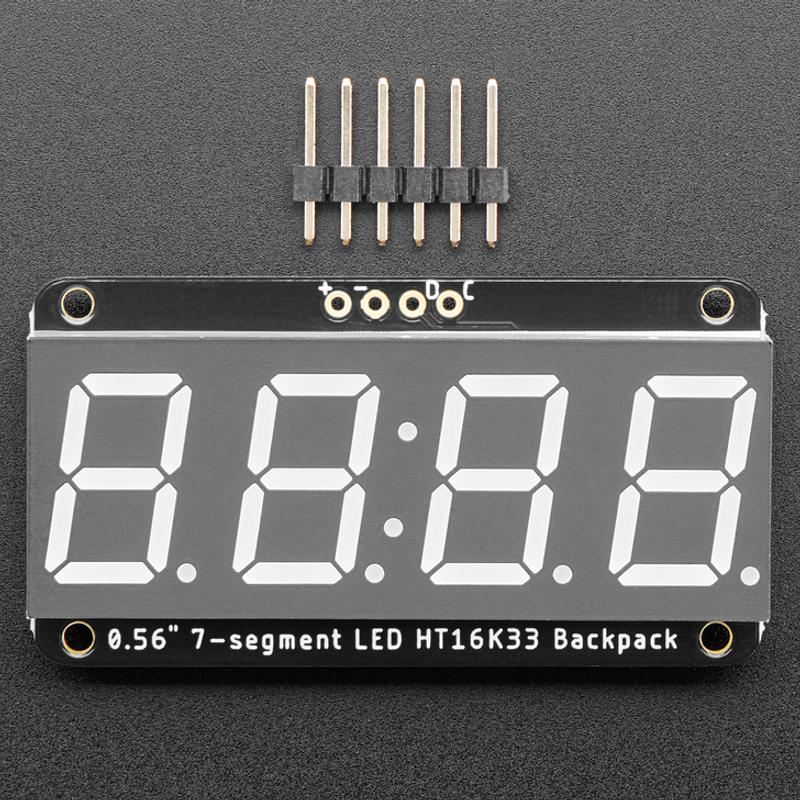

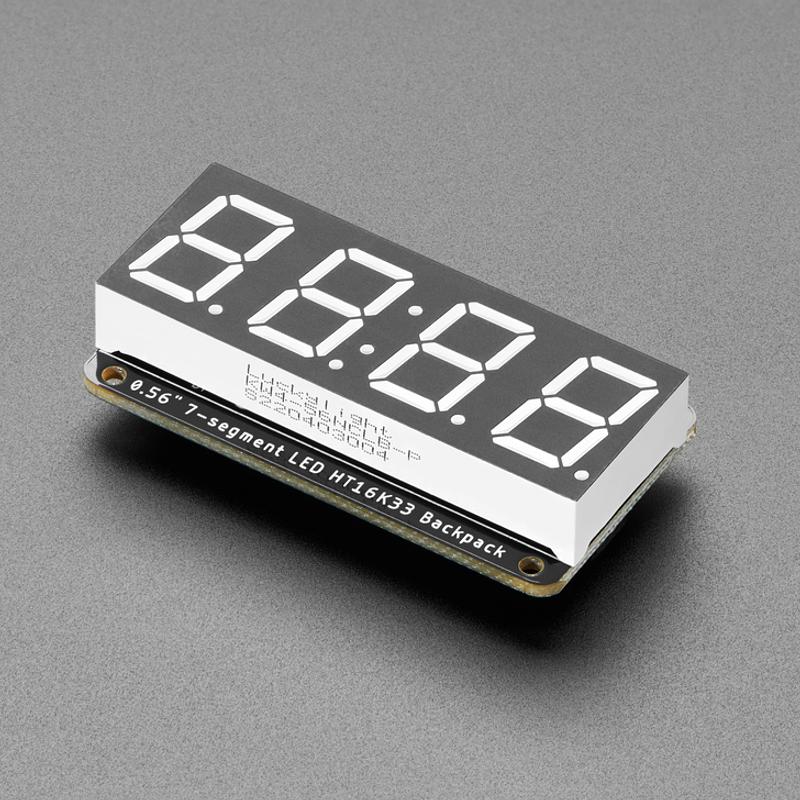

Adafruit 0.56in 4-Digit 7-Segment Display Backpack - Green

Jargon buster

Plain-language definitions for the technical terms used above.

5G

5G is the fifth-generation mobile network standard, offering higher-speed, lower-latency wireless data than earlier 4G/LTE networks. 5G modems can move large amounts of data over cellular networks but may draw significant current and need a suitable aerial and reliable power.

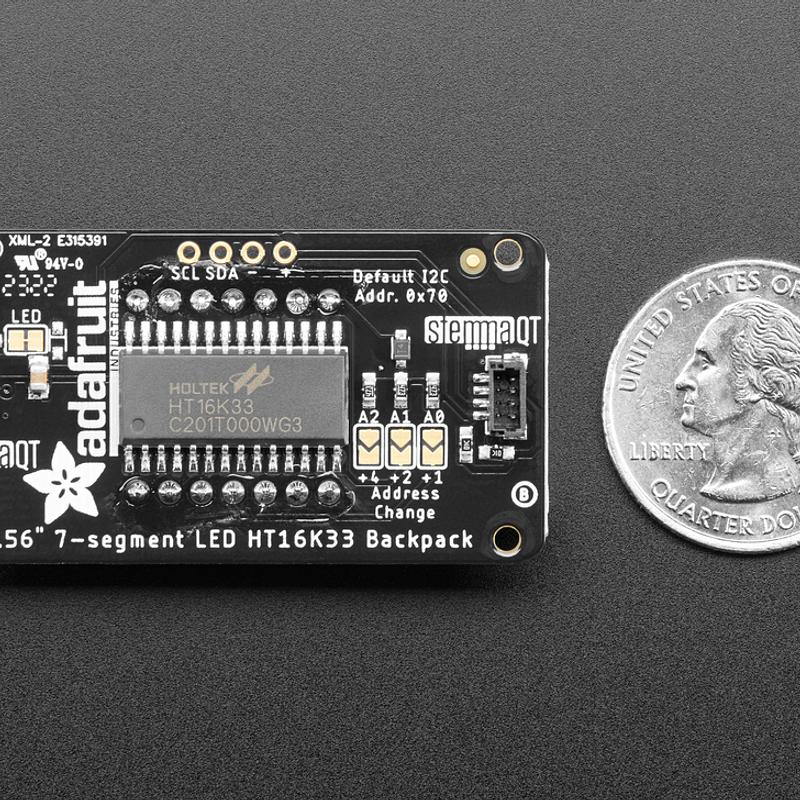

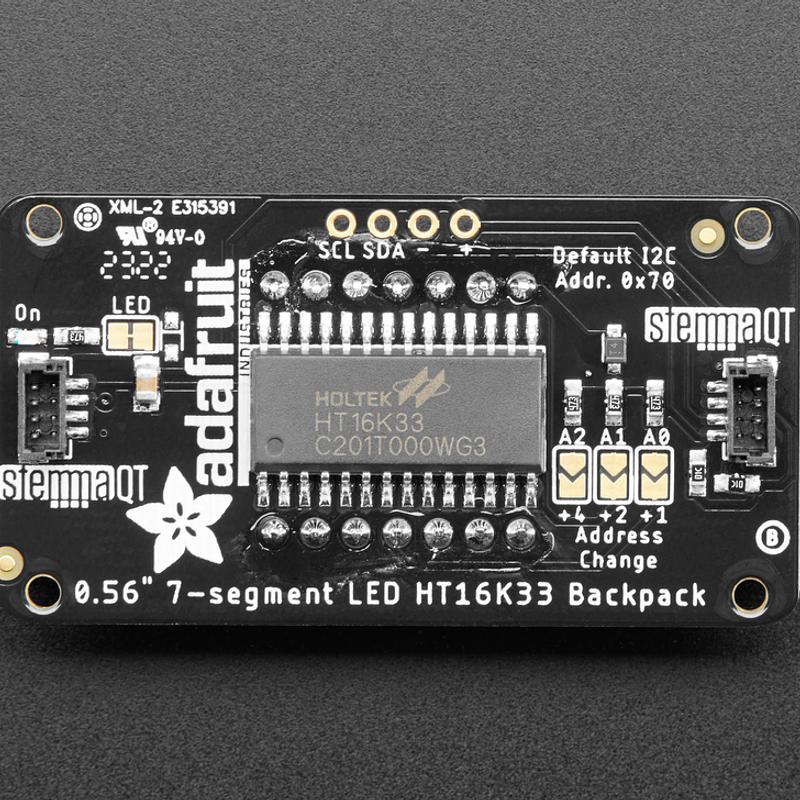

Address jumpers

Address jumpers are small solder pads, links or switches used to change a device's address on a shared bus such as I2C. They matter when you want to connect several identical devices to the same controller, since each one needs a unique address to avoid conflicts.

I2C

I2C is a two-wire communication bus used by many sensors and small modules. It matters because several I2C devices can share the same two wires, but each device needs a compatible address and your controller must support I2C.

LED

A light-emitting diode (LED) is a small electronic component that emits light when current flows through it in the correct direction. Because it only conducts one way, its polarity matters, and a through-hole LED must be soldered the correct way around to light up.

microcontroller

A microcontroller is a small computer on a single chip that runs a stored program and controls connected inputs and outputs such as buttons, sensors, displays and communication interfaces. In a device built around one, it is the part that executes the code and coordinates the device's behaviour.

PCB

A printed circuit board (PCB) is a board, usually rigid, with etched copper tracks that connect electronic components together without loose wiring. Components are mounted on the board and signals route between them through the copper layout.

Qwiic

Qwiic is a plug-in connector system for I2C devices that uses small 4-pin cables, so you can connect compatible sensors without soldering. It matters because your controller or adapter also needs Qwiic, or you will need a cable or breakout to wire it up.

Seven-segment display

A common numeric display made from seven LED bars arranged to form digits. It is good for numbers but limited for letters, so comparing it with a fourteen-segment display helps you judge what kind of text the product can show.

STEMMA

A plug-and-cable connection system used on some maker electronics boards to make wiring simpler. If a product uses STEMMA, you need the matching cable or connector type to plug it in without soldering.

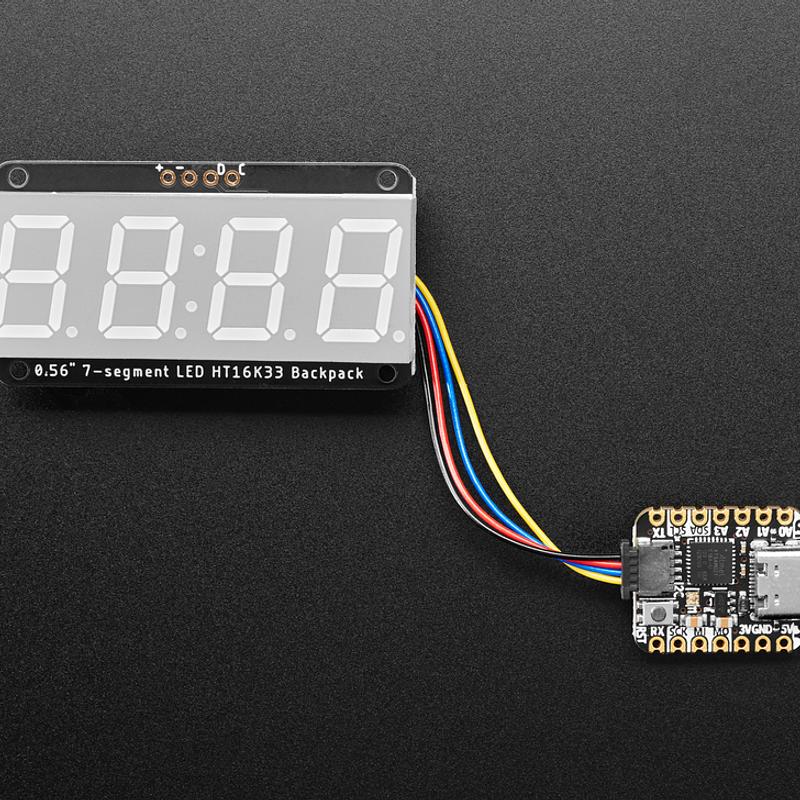

STEMMA QT

A small plug-in connector system for I2C boards that lets you connect compatible sensors and controllers without soldering. It matters because it can make wiring faster and less error-prone, especially when adding several small modules to a project.
