APA102C-5050 SMD Addressable RGB LED - Cut Tape
· MPN: COM-24838
This APA102C, also known as DotStar, is a 5050-sized SMD addressable RGB LED for adding bright, colourful lighting to custom boards and compact projects.It h...
Get notified when back in stock
This APA102C, also known as DotStar, is a 5050-sized SMD addressable RGB LED for adding bright, colourful lighting to custom boards and compact projects.

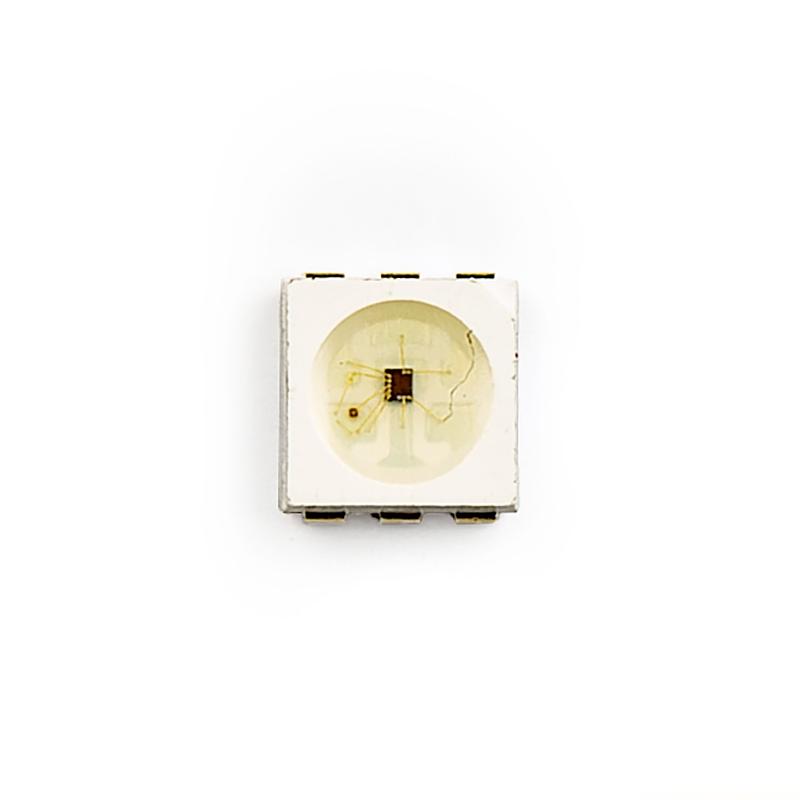

It has an integrated control circuit embedded inside the LED package, with the tiny controller chip and gold bond wires visible if you look closely.
This part is supplied as cut tape and is intended for surface-mount assembly. Good SMD soldering skills are recommended before incorporating it into your own PCB or project.
Features:
- 6-pin design
Specifications:
- Red: 500--650mcd
- Green: 370--530mcd
- Blue: 120--165mcd

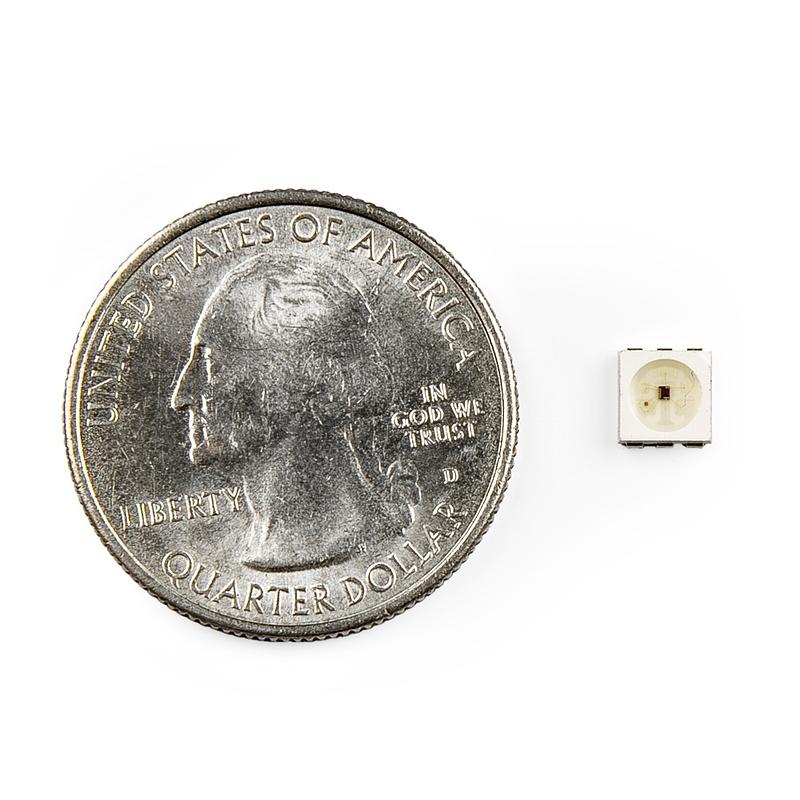

- Size: 5050-sized (5mmx5mm)
