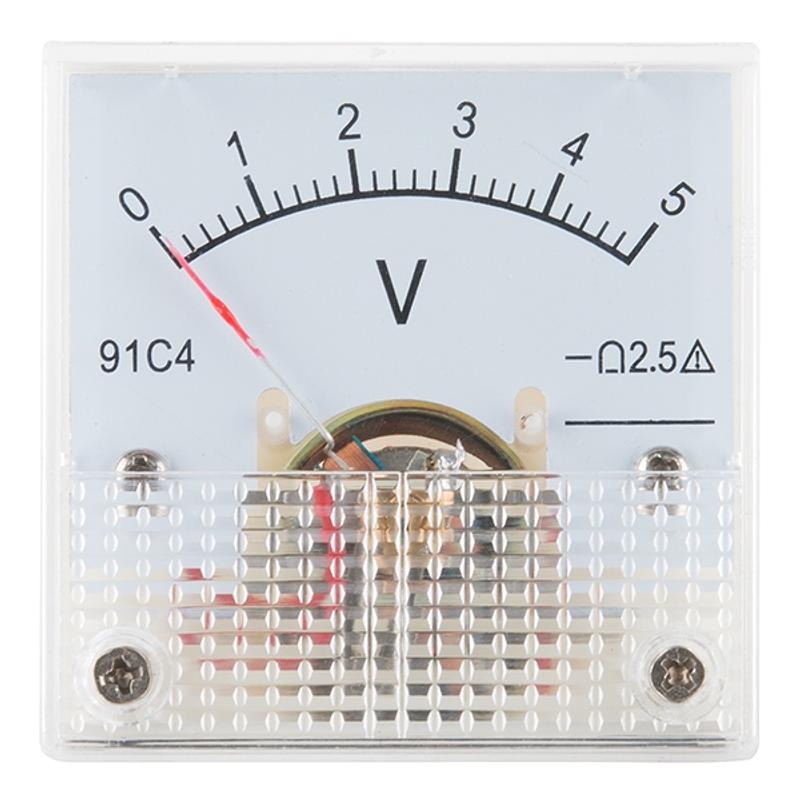

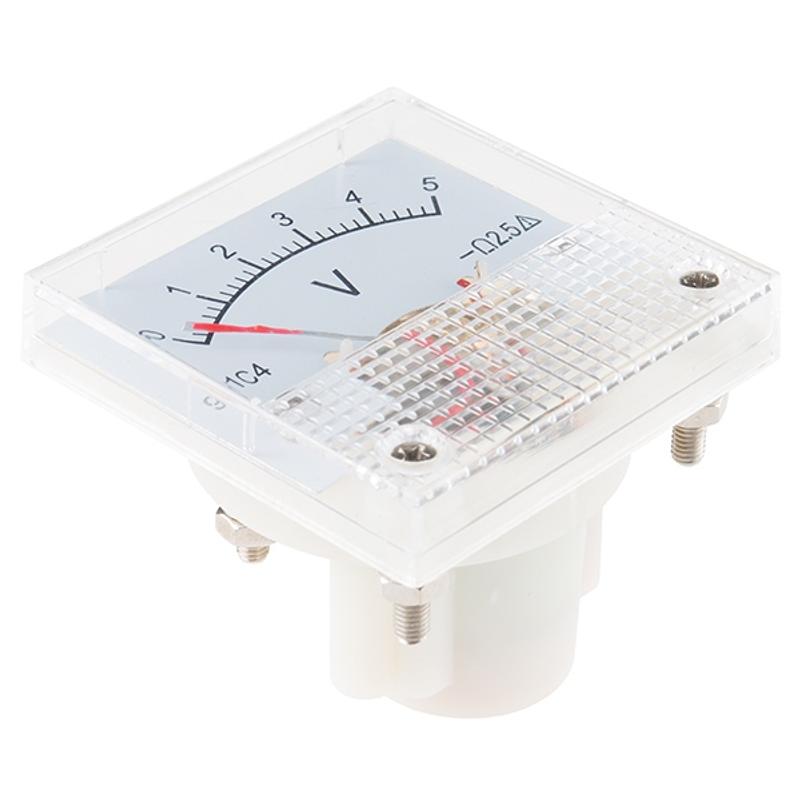

Analog Panel Meter - 0 to 5 VDC
A classic analog panel meter for measuring DC voltage from 0 to 5V. Features a clear, easy-to-read scale with an adjustable dial for zero calibration. Ideal ...
Get notified when back in stock
A classic analog panel meter for measuring DC voltage from 0 to 5V. Features a clear, easy-to-read scale with an adjustable dial for zero calibration. Ideal for monitoring sensor outputs, power supply voltages, and other 5V range signals in your projects.
Key Features
- 0–5V DC Range – Perfect for monitoring 5V sensor outputs and power supplies
- Clear Scale – Easy-to-read analog needle display
- Adjustable Dial – Zero calibration for accurate readings

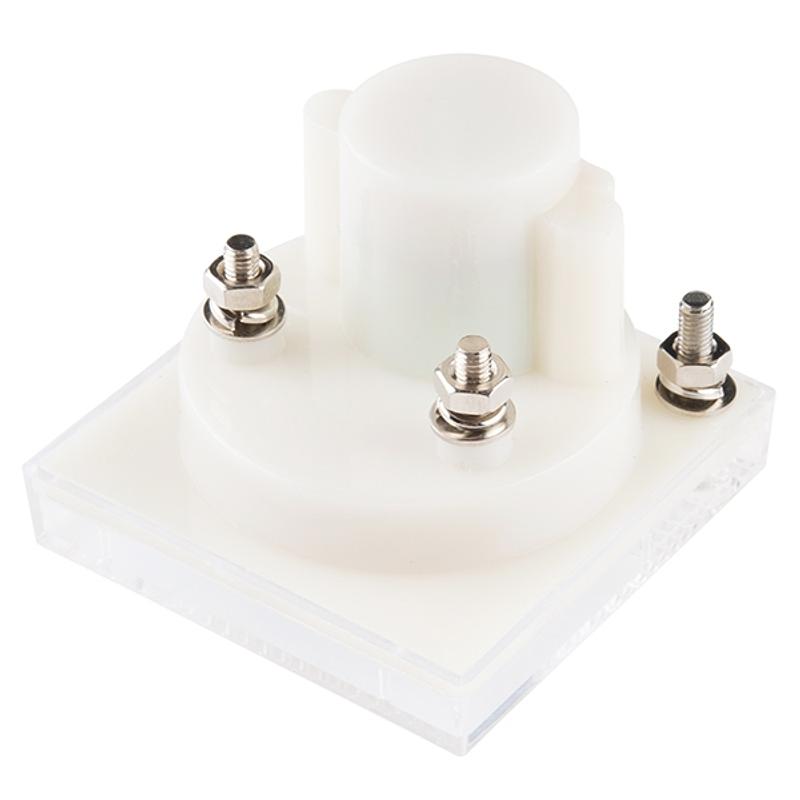

- Panel Mount – Designed for flush mounting in enclosures and panels
Specifications
- Measurement Range – 0 to 5V DC
- Accuracy – ±2.5%
- Face Dimensions – 45 × 45mm
- Mounting Hole – 38mm
- Depth – 35mm
Ideal For
- Monitoring sensor output voltages
- Power supply voltage display
- Enclosure and panel instrumentation
- Retro-style project builds
Package Contents
- 1× Analog Panel Meter (0–5V DC)
Jargon buster
Plain-language definitions for the technical terms used above.
- DC
- DC means direct current, where electricity flows in one constant direction, as supplied by batteries, USB ports and many plug-pack power supplies. When a product specifies DC, it runs from a DC supply rather than mains AC, so you need to provide the correct voltage and polarity.
