Amphenol FCI Clincher Connector (2 Position, Female)
The Clincher connector from Amphenol FCI provides a quick, tool-free way to terminate Flat Flexible Cables (FFCs) to standard 0.1" pin headers. Simply insert...

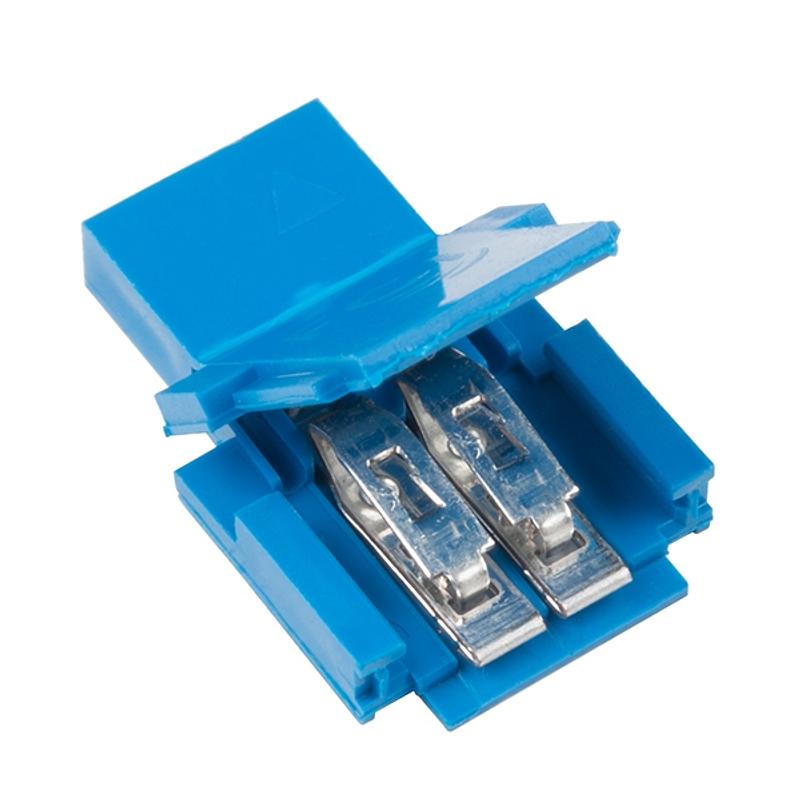

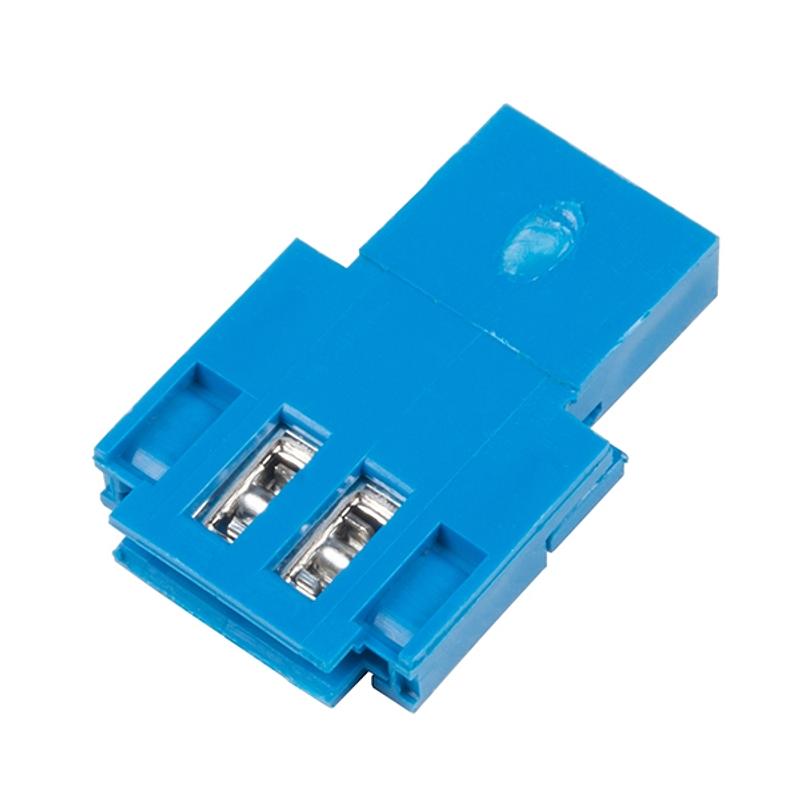

The Clincher connector from Amphenol FCI provides a quick, tool-free way to terminate Flat Flexible Cables (FFCs) to standard 0.1" pin headers. Simply insert the end of the cable into the connector and press it closed — the internal teeth "clinch" around the conductors, breaking them out to two female 0.1"-spaced pins.
Also works well with FlexiForce pressure sensors and other flex/force sensors that use flat ribbon-style connections, making it easy to interface these sensors with standard breadboards and headers.
Key Features
- Tool-Free Termination – Insert cable and press closed, no soldering or crimping needed
- 2-Position Female Header – Breaks out to standard 0.1" (2.54mm) spaced pins
- FFC Compatible – Designed for Flat Flexible Cables
- Sensor Friendly – Works with FlexiForce and similar flat-connection sensors
Specifications
- Positions – 2
- Gender – Female
- Pitch – 0.1" (2.54mm)
- Manufacturer – Amphenol FCI
Package Contents
- 1× Amphenol FCI Clincher Connector (2-position, female)
Resources
Jargon buster
Plain-language definitions for the technical terms used above.
- Headers
- Rows of metal pins used to plug a module into a breadboard or connect it with jumper wires. Pre-soldered headers make the module easier to use straight away without needing to solder the pins yourself.
