SparkFun
Alchitry Standoff Hardware
· MPN: PRT-28007
Add a bit of protection and a cleaner finish to your Alchitry board with this standoff hardware. It is designed for use with compatible Alchitry boards, help...

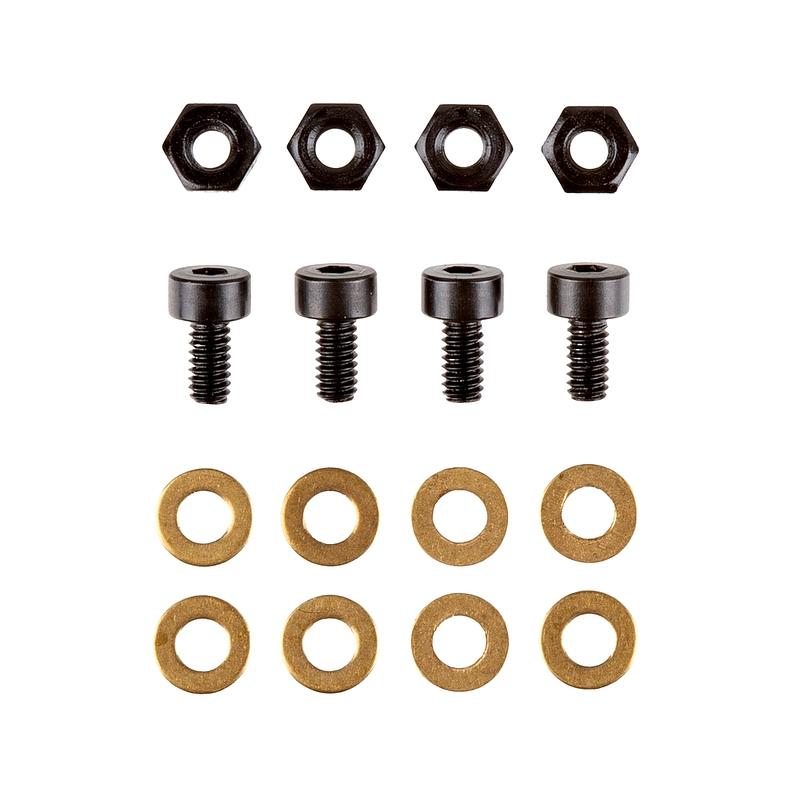

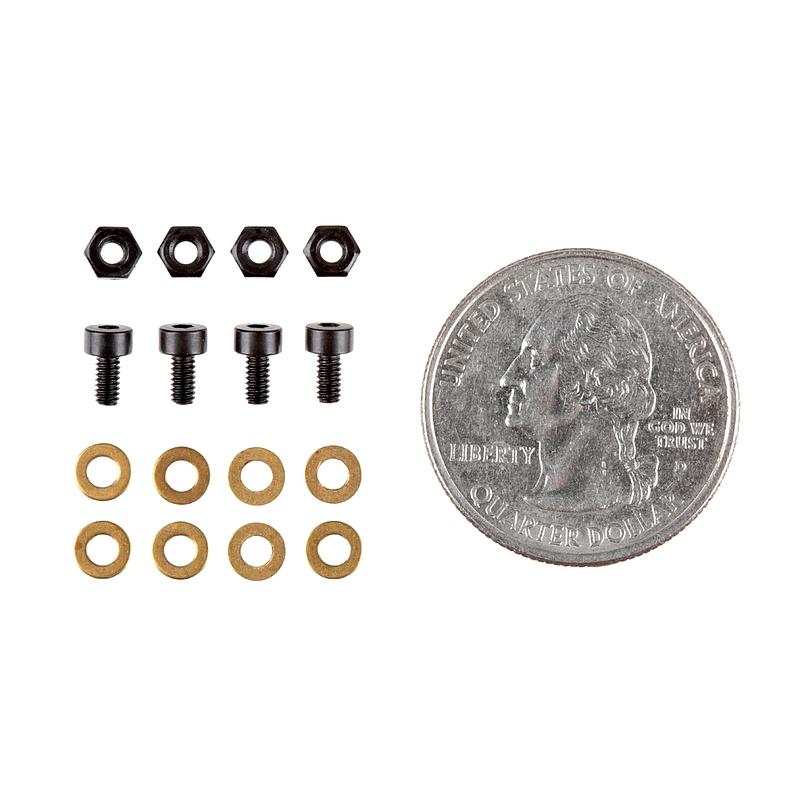

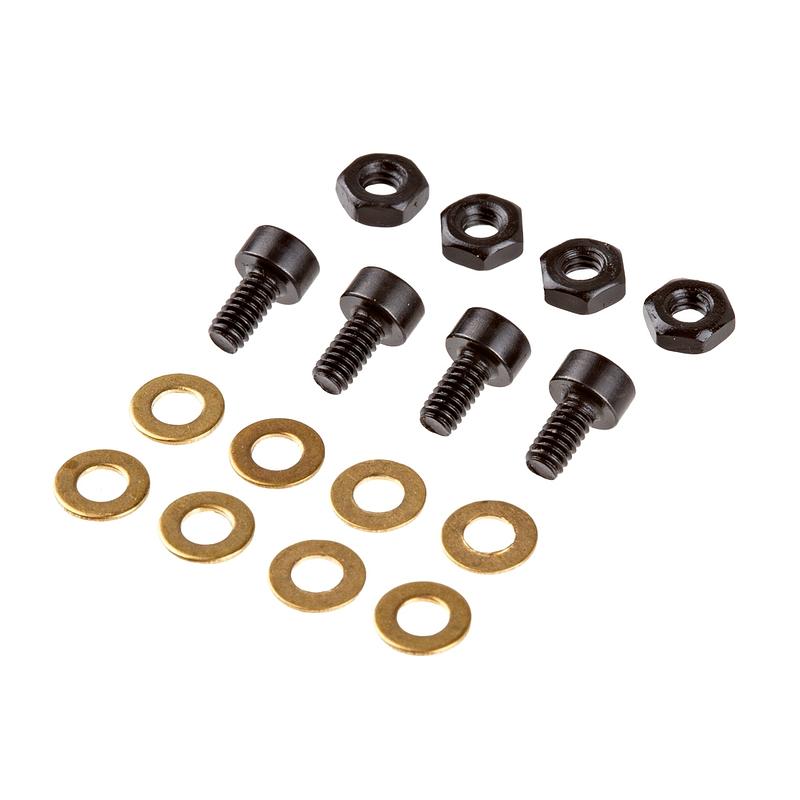

Add a bit of protection and a cleaner finish to your Alchitry board with this standoff hardware. It is designed for use with compatible Alchitry boards, helping lift the PCB off your work surface or enclosure base.
The bolts protrude about 2mm below the board, which is just further than the lowest part on the underside of the Alchitry Au, Cu or Pt.
Specifications:
- Bolt protrusion: about 2mm below the board
- Compatibility note: protrudes just further than the lowest part on the bottom of the Au, Cu, or Pt
A simple hardware add-on for protecting Alchitry FPGA boards during development, demos or bench-top use.
Jargon buster
Plain-language definitions for the technical terms used above.
- PCB
- A printed circuit board is a rigid board with copper tracks that connect electronic parts without loose wires. For this kit, the PCBs also form the airplane shape, so they are both the circuit base and part of the finished model.
