Adafruit USB-C Power Delivery Dummy Breakout - I2C or Fixed
· MPN: ADA5807
This breakout is built around the HUSB238 USB PD sink chip, making it easy to negotiate power from a USB Type-C Power Delivery source without soldering tiny ...
Get notified when back in stock

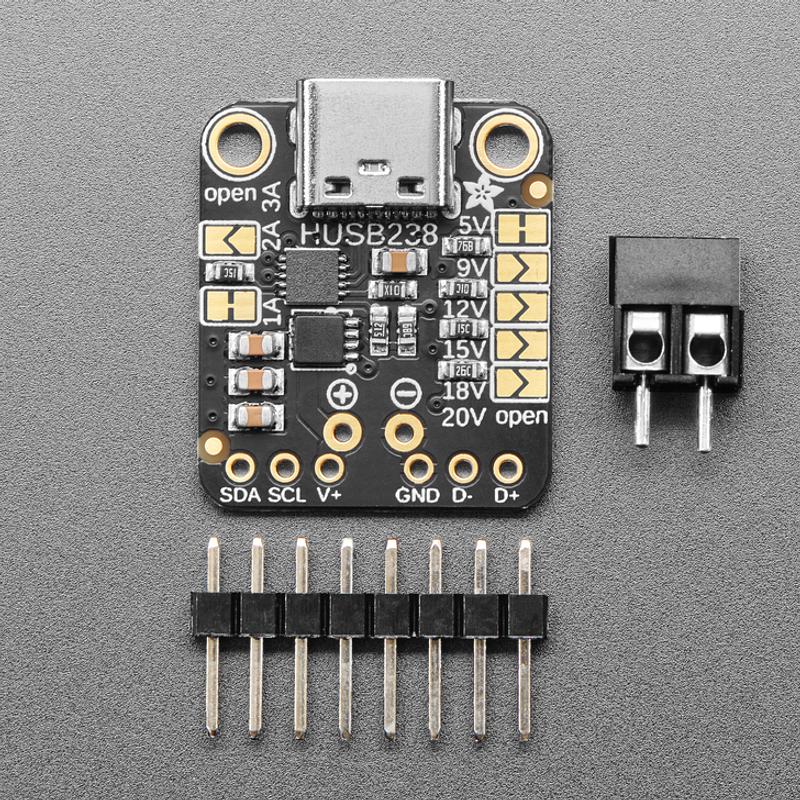

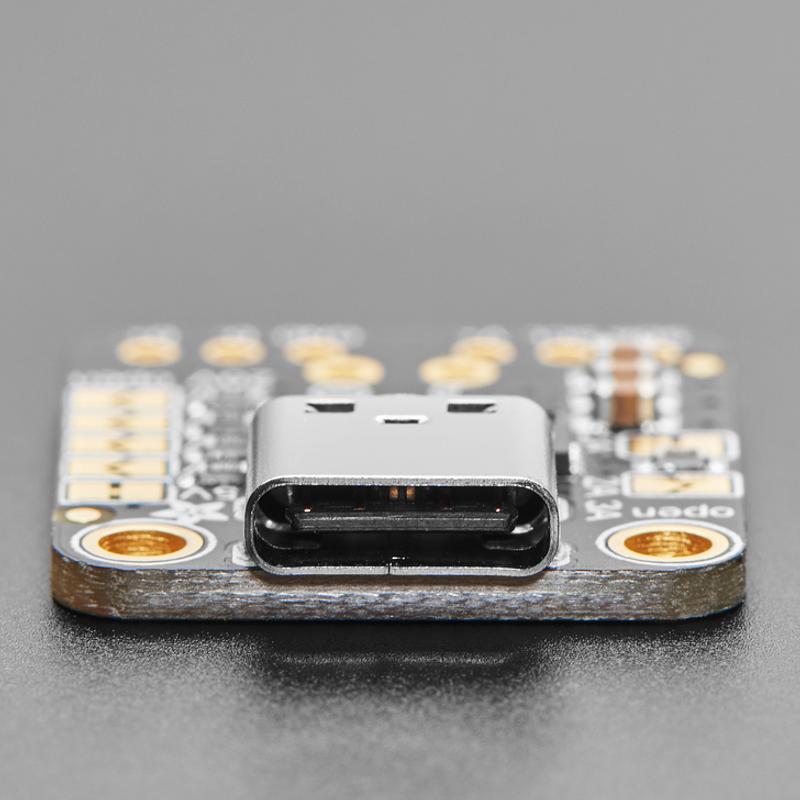

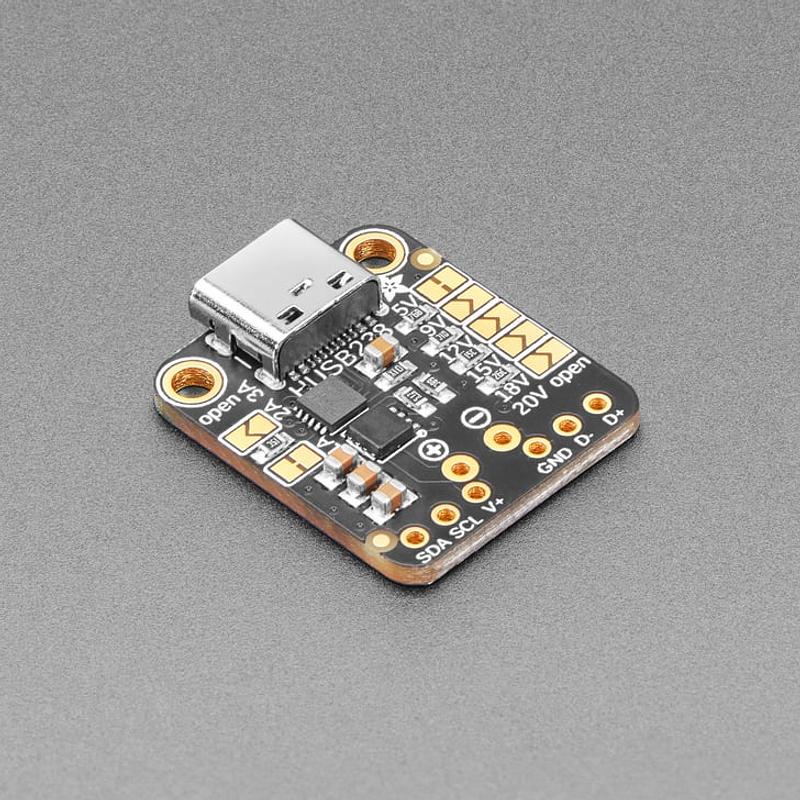

This breakout is built around the HUSB238 USB PD sink chip, making it easy to negotiate power from a USB Type-C Power Delivery source without soldering tiny resistors. It plugs into a USB-C cable and uses the CC lines to request a suitable PD voltage.

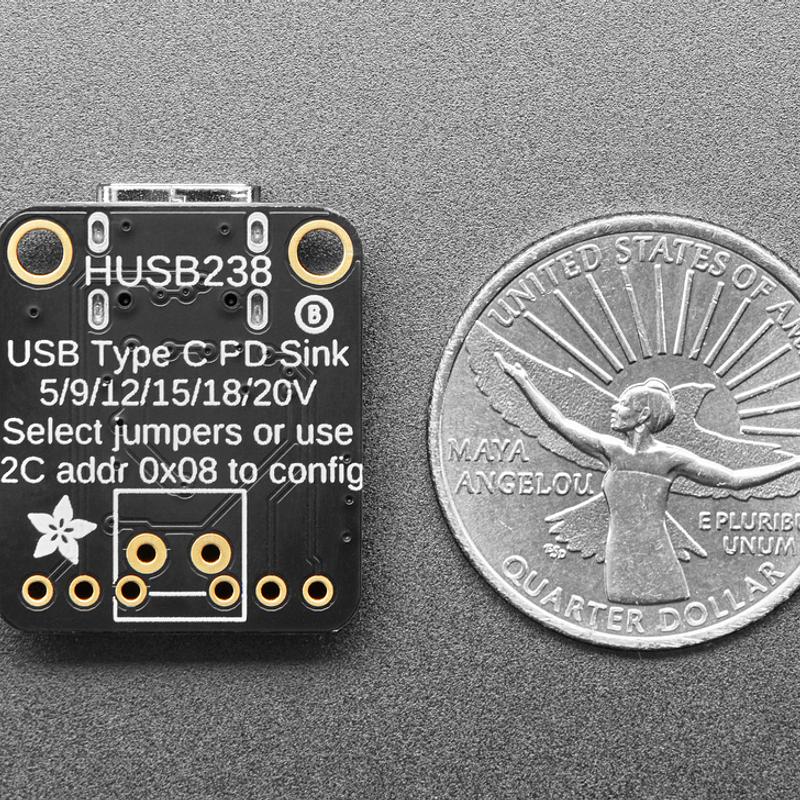

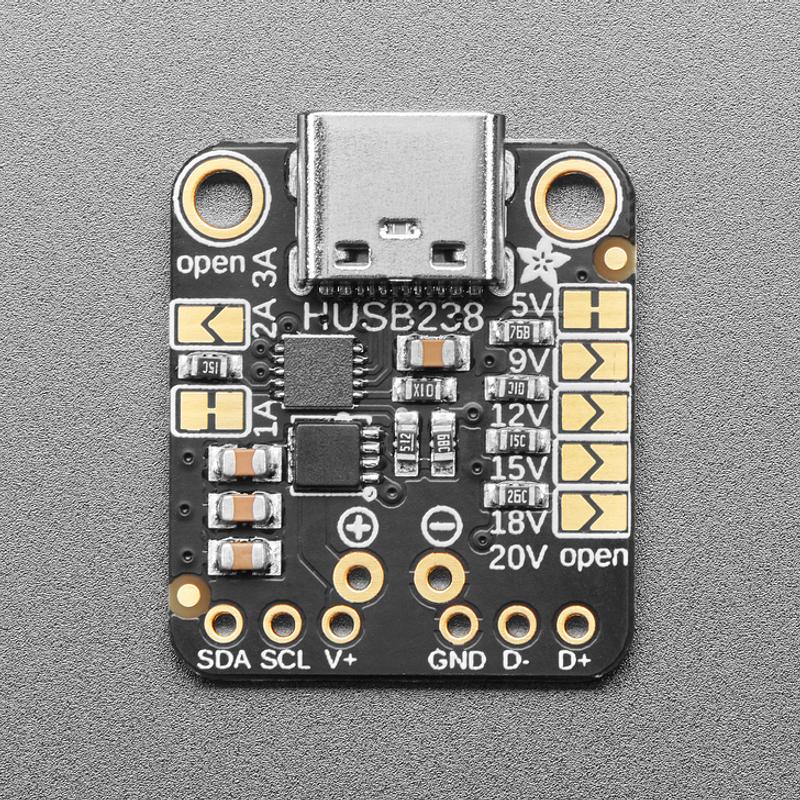

You can configure it with solder jumpers for fixed output voltages including 5V, 9V, 12V, 15V, 18V or 20V. By default it is hard-wired for 5V 1A output, and you can also select desired current from 2A to 3A. No microcontroller or microcomputer is required for jumper-configured use.
For dynamic control, connect it over I2C to a separately powered microcontroller or microcomputer with suitable I2C pull-up resistors. Adafruit provides an Arduino library and example code to query a USB Type-C PD source for available voltages and currents, then select the desired voltage.
It comes with a small bit of header and a terminal block, so you can choose between breadboard-friendly use or free-wired installation in your project.
Specifications:
- Product Dimensions: 24.5mm x 20.2mm x 4.9mm / 1.0" x 0.8" x 0.2"
- Product Weight: 2.2g / 0.1oz
Useful for converting DC or battery-powered projects to USB-C power, or for projects needing more than the basic 5V available from a typical USB connection.
