Adafruit FONA - uFL Version Starter Pack

The Adafruit FONA uFL Starter Pack bundles the FONA Mini Cellular GSM Breakout (uFL version) with all the accessories you need to get started with voice, text, SMS, and data over 2G networks. The uFL version uses a slim sticker-type antenna for a compact, low-profile installation.

Built around the SIM800 quad-band GSM module (850/900/1800/1900 MHz), the FONA works on any global 2G network. The breakout board includes LiPo battery charging, level shifting (2.8–5 V logic), a TRRS headphone jack, vibration motor driver, and FM radio reception. It requires a microcontroller with UART (such as an Arduino) to drive it via AT commands.

Key Features

• SIM800 Quad-Band GSM – 850/900/1800/1900 MHz for global 2G network connectivity
• Voice, SMS, and Data – Make/receive calls, send/receive SMS, GPRS data (TCP/IP, HTTP)
• FM Radio Receiver – Built-in FM broadcast scanning and reception
• LiPo Battery Charging – On-board charger via Micro-USB with charge status LEDs
• Level Shifting – Works with 2.8–5 V logic levels
• uFL Antenna Connector – Slim sticker-type antenna included in pack
• TRRS Headphone Jack – Standard 4-pole jack for Android/iPhone-compatible headsets
• Speaker + Mic Breakouts – Pads for external 8 Ω speaker and electret microphone
• Vibration Motor Driver – PWM/buzzer output for silent notifications

Also Available

• FONA 800 Breakout Starter Pack – SMA Version
• FONA 800 uFL Shield Starter Pack
• FONA 808 – GSM + GPS Breakout (with GPS)
• FONA 3G – European Version (3G + GPS)

Ideal For

• Getting started with cellular IoT projects
• Voice and SMS-enabled embedded devices
• Remote data logging over GPRS

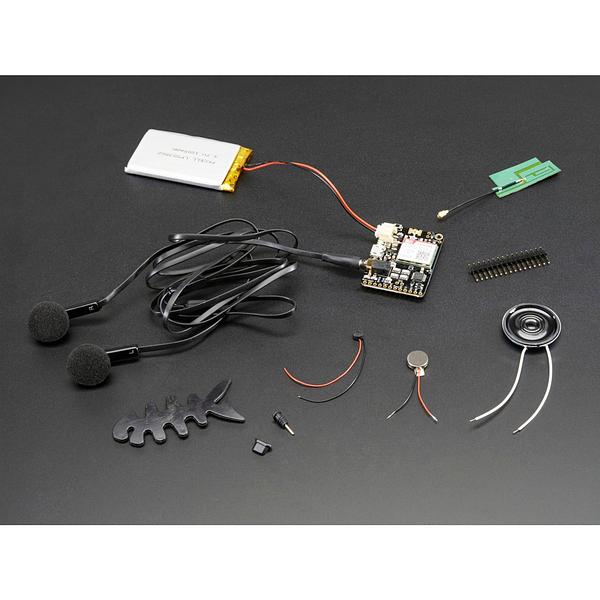

Package Contents

• 1× Adafruit FONA Mini Cellular GSM Breakout (uFL Version v1)
• 1× Slim sticker-type GSM quad-band antenna (3 dBi, uFL)
• 1× Lithium-ion polymer battery (3.7 V, 1200 mAh)
• 1× Mini metal speaker (8 Ω, 0.5 W)
• 1× Wired miniature electret microphone
• 1× Cell phone TRRS headset with microphone
• 1× Vibrating mini motor disc
