3.5in 320x480 Capacitive Touch TFT Breakout Board

Name: 3.5in 320x480 Capacitive Touch TFT Breakout Board
Brand: Adafruit
SKU: AF-5846
Price: 98.2 AUD
Availability: OutOfStock

· MPN: ADA5846

Breakouts Displays Displays & User Interface LCD & OLED Displays Arduino Display Modules Touchscreens

$98.20 |

Out of stock

No reviews yet

This colour touchscreen LCD gives your project a bright, high-resolution interface with a 3.5" diagonal TFT panel and capacitive touch already attached. With...

Add to Wishlist

Compare

Get notified when back in stock

Estimated Delivery

Arrives

Disclaimer

View Markdown

Secure checkout

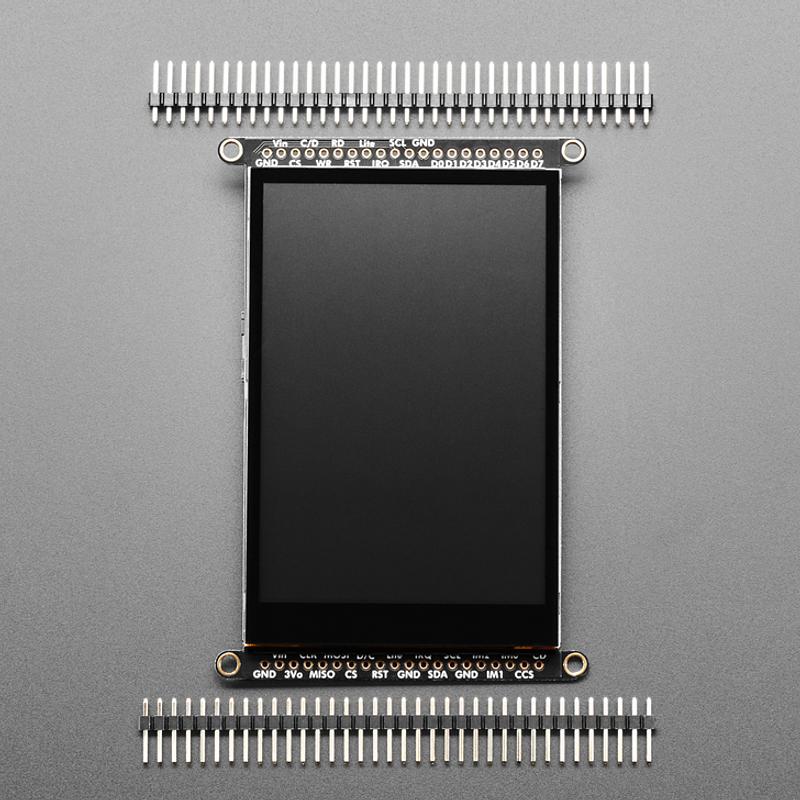

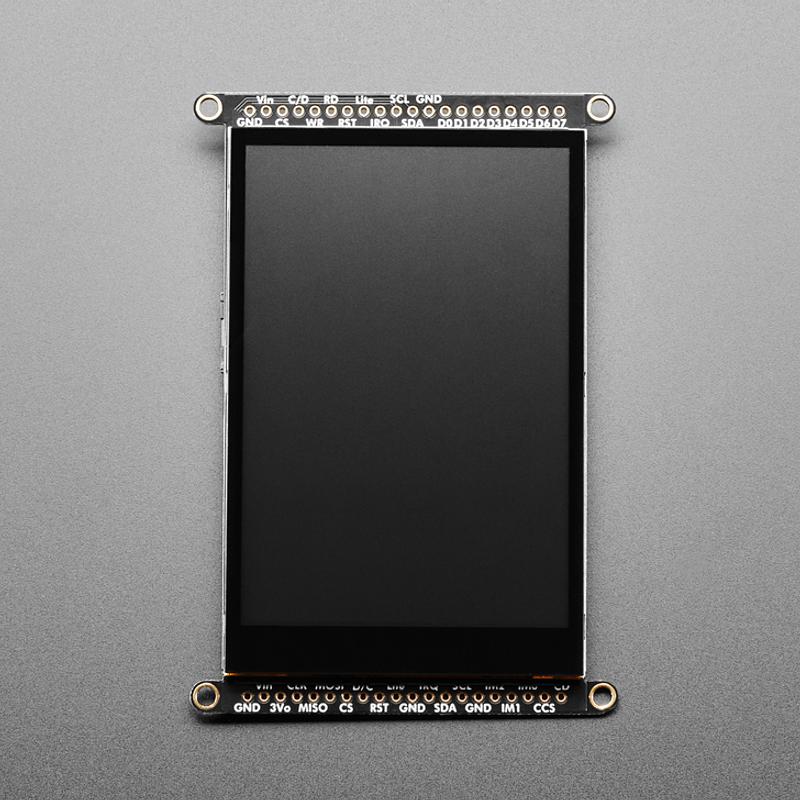

This colour touchscreen LCD gives your project a bright, high-resolution interface with a 3.5" diagonal TFT panel and capacitive touch already attached. With 480x320 pixels and individual RGB pixel control, it offers far more display space than small monochrome screens.

The onboard display controller includes RAM buffering, so the microcontroller does not have to do most of the heavy lifting. You can drive the display using either an 8-bit interface for speed or SPI when you want to keep the pin count down.

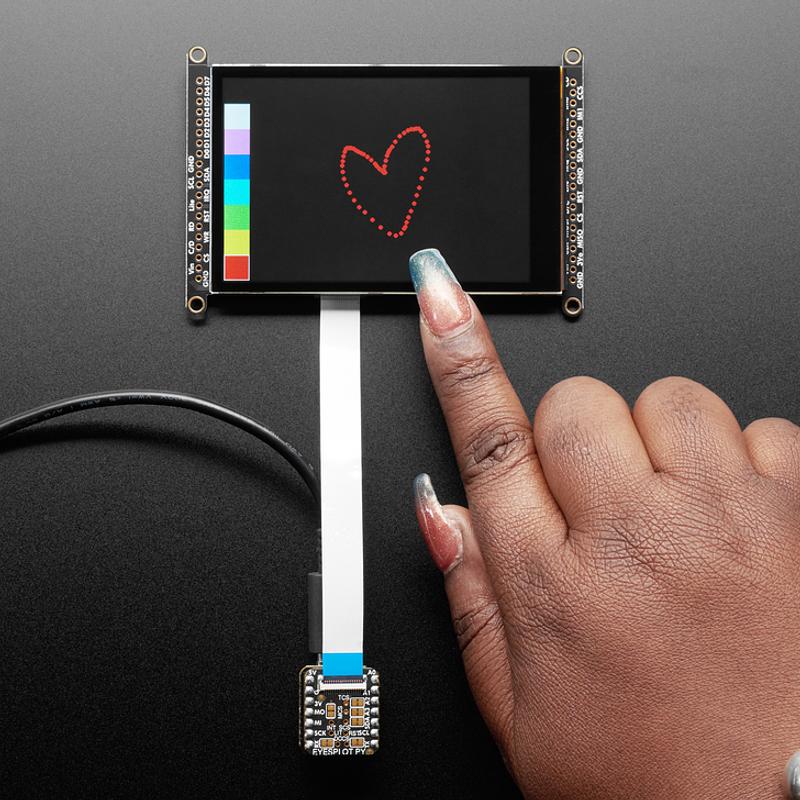

Touch communication uses I2C, with an optional IRQ pin for touch detection. If you are using the SPI and I2C interfaces, the built in EYESPI connector makes it quicker to hook up without a bundle of jumper wires.

Adafruit provides a detailed tutorial with wiring, test and example code. There are separate optimised graphics libraries for 8-bit and SPI use, plus a touch screen library that can detect up to 5 multi-touch points.

Features:

Colour TFT display: 3.5" diagonal screen for graphical projects.
Capacitive touch: Detects finger presses anywhere on the screen.
RAM-buffered controller: Built-in controller reduces the workload on your microcontroller.
Interface options: Supports 8-bit mode or SPI mode.
I2C touch interface: Uses I2C pins for touch screen communication.
Optional IRQ: IRQ pin available for touch screen detection.
EYESPI connector: Built in connector for quick SPI and I2C interfacing.
Graphics library: Open source 8-bit library can draw pixels, lines, rectangles, circles, text, and more.
SPI library: Separate SPI library is provided and heavily optimised.
Touch library: Detects up to 5 multi-touch points.
Example support: Tutorial includes wiring, test and example code.

Specifications:

Display size: 3.5" diagonal
Resolution: 480x320 pixels
Backlight: 6 white-LED backlight
Pixel control: Individual RGB pixel control
Touchscreen: Capacitive touchscreen attached

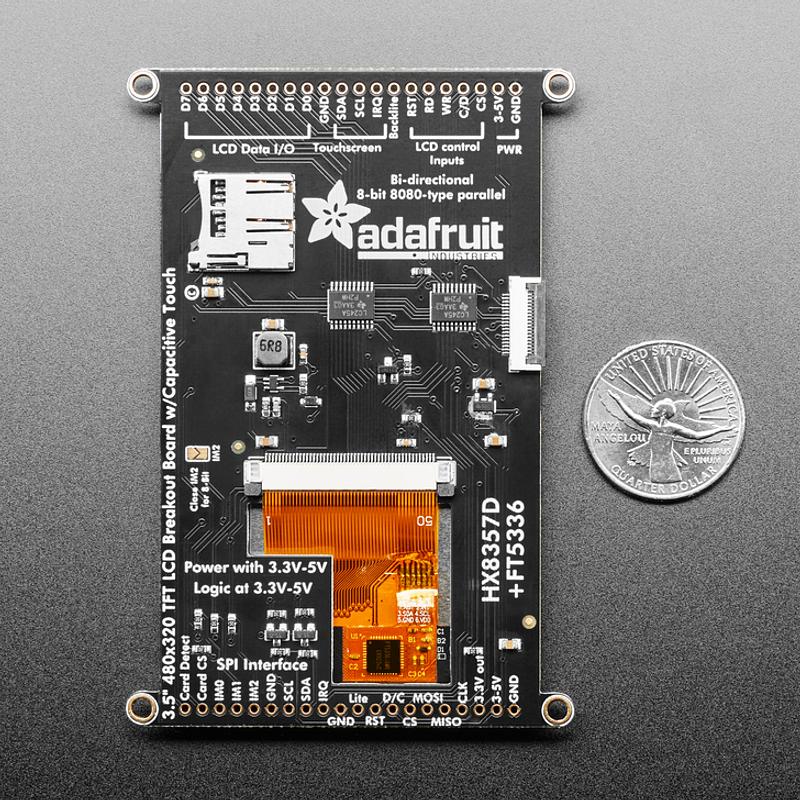

Display controller: Built into it with RAM buffering
Display interface modes: 8-bit or SPI
8-bit mode data lines: 8 digital data lines
8-bit mode control lines: 4 or 5 digital control lines
8-bit mode total lines: 12 lines total
SPI mode pins: 5 pins total (SPI data in, data out, clock, select, and d/c)
Touch communication: I2C pins are required
Touch IRQ: IRQ pin for the touch screen detection
Quick connector: Built in EYESPI connector for SPI and I2C interfaces
Multi-touch: Detects up to 5 multi-touch points

A great fit for interactive dashboards, handheld controllers, data displays, and other maker projects that need both colour graphics and touch input.
