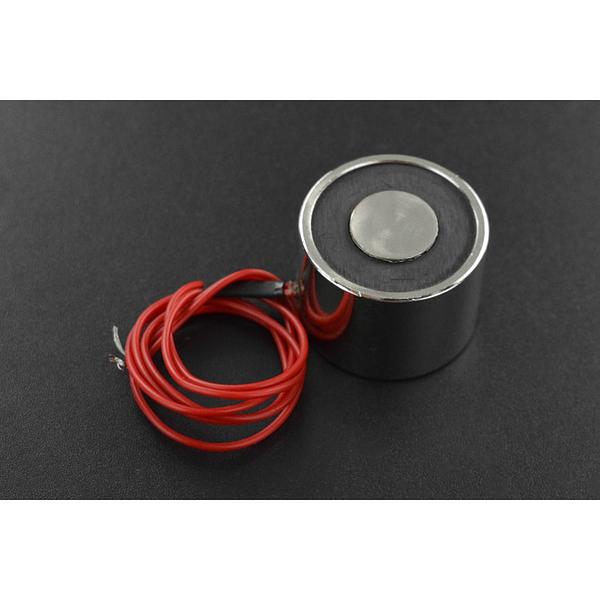

5V Electromagnet (35 Kg Holding Force)
This 5V DC sucker-type electromagnet provides 35kg of holding force at 3W of power — the strongest in the 5V range. When energised, the iron core becomes magnetised; when power is removed, the magnetism dissipates quickly. The magnetic polarity can be reversed by swapping the input wires.
Key Features
- Holding Force – 35kg
- Rated Voltage – DC 5V
- Rated Power – 3W
- Wire Length – 28cm
- Reversible Polarity – Swap wires to change magnetic pole orientation
- Instant On/Off – Magnetic only when powered
Ideal For
- DIY electromagnetic locks and latches
- Smart storage cabinets and intelligent doors
- Heavy-duty pick-and-place mechanisms
- Robotics and industrial automation projects
Package Contents
- 1× 5V Electromagnet (35kg holding force)
- 1× Mounting screw
Note: Holding force is not the same as pick-up weight. Divide by 5–10 for an approximate pick-up capacity (~3.5–7kg). Actual performance depends on the contact surface being flat and the object being ferromagnetic steel. The electromagnet can remain energised long-term when attracted to a surface, but should not be powered continuously with no load attached. Wire colour may vary.
The 5V Electromagnet (35 Kg Holding Force) appears in the following collections:
SKU DF-DFR0802
by Little Bird
