DFRobot 5V COB LED Strip Light - Yellow
· MPN: FIT0877
This compact COB light strip is a bright yellow 5V lighting module for decorative and embedded illumination projects. It uses 16 LED chips under silicone enc...
Get notified when back in stock
This compact COB light strip is a bright yellow 5V lighting module for decorative and embedded illumination projects. It uses 16 LED chips under silicone encapsulation to create a smooth, continuous luminous surface with minimal hotspots and shadowing.
The low-voltage DC 5V input makes it practical for USB power sources, battery packs and embedded electronics platforms. Solderable pads support flexible installation, including connecting multiple modules in series or parallel for custom layouts.

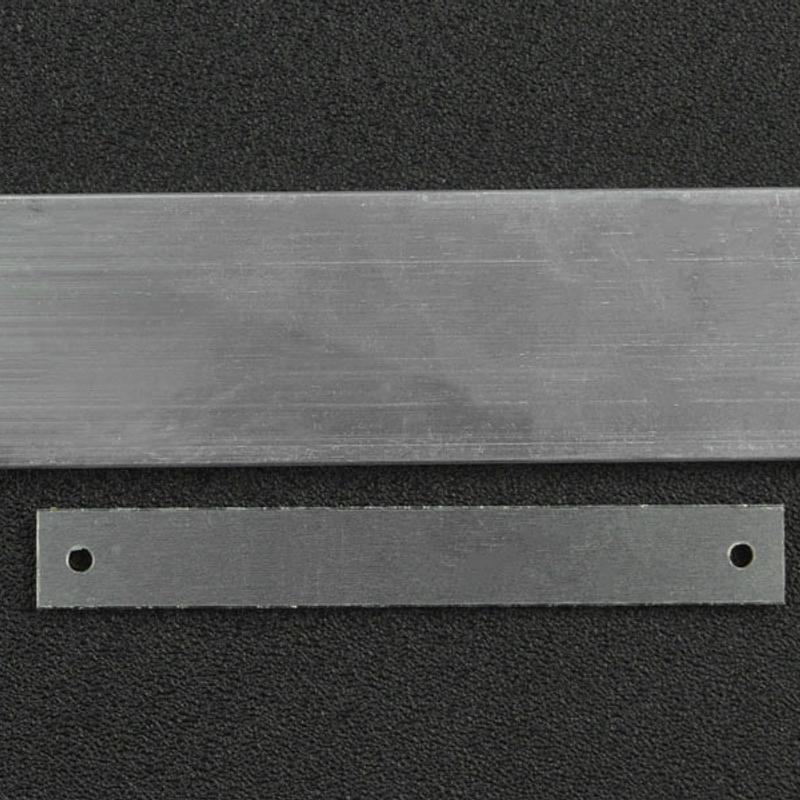

Its slim light bar format is suited to cabinets, shelves, display boxes, wardrobes and other narrow spaces. A heat sink is included for improved thermal performance; for long-term use, mount the LED strip to the aluminium plate to help prevent light decay or LED bead burnout, as it can get hot during operation.
Features:
- 5V power supply
- High brightness, no shadows
- Solderable, can be connected in series and parallel
Specifications:
- Working Voltage: DC 5V
- Working Current: 600mA
- Power: 3W
- Brightness: 300LM
- Luminous Color: yellow 595nm
- LED Strip Size: 60*8*1.7mm /2.36*0.31*0.07 inch
- Heat Sink Size: 70*20*3mm /2.76*0.79*0.12 inch

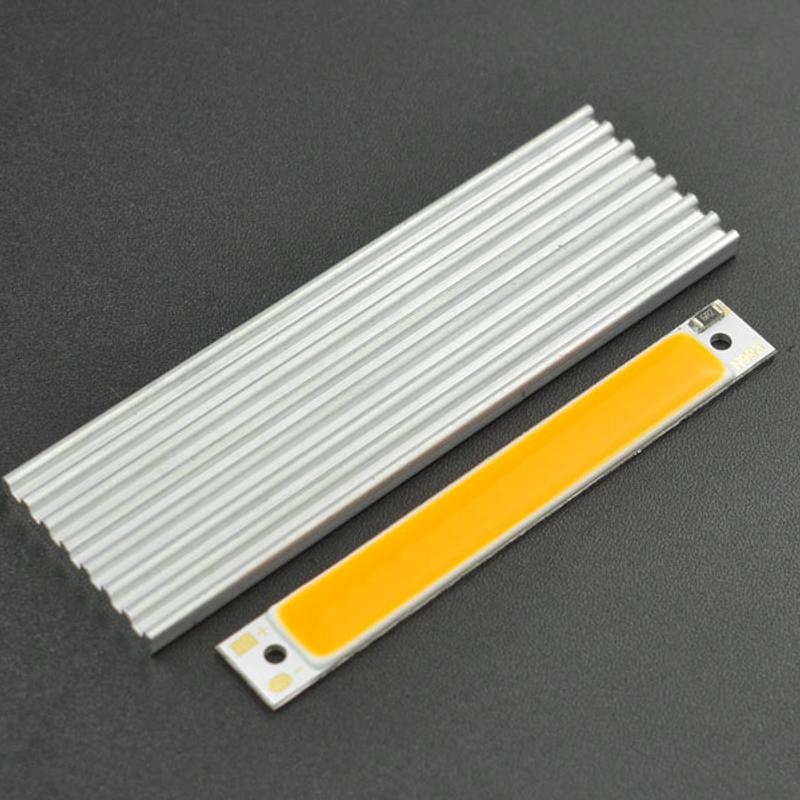

Includes 1 x 5V COB LED Strip Light - Yellow and 1 x heat sink. Suitable for indoor lighting decoration, cabinet accents, display illumination and portable battery-powered lighting designs.
Jargon buster
Plain-language definitions for the technical terms used above.
- DC
- DC means direct current, where electricity flows in one constant direction, as supplied by batteries, USB ports and many plug-pack power supplies. When a product specifies DC, it runs from a DC supply rather than mains AC, so you need to provide the correct voltage and polarity.
- LED
- A light-emitting diode (LED) is a small electronic component that emits light when current flows through it in the correct direction. Because it only conducts one way, its polarity matters, and a through-hole LED must be soldered the correct way around to light up.
- Low-voltage DC
- Low-voltage DC is direct-current power at relatively low voltages, commonly used in battery, microcontroller, and small electronics projects. A part rated for low-voltage DC is meant for DC wiring up to its rated voltage and current and is not suitable for mains household wiring.
