5V COB LED Strip Light - Warm White
· MPN: FIT0876
This compact COB LED strip uses 16 LEDs under a silicone encapsulated surface, helping protect the chips while providing a smooth, even warm white light outp...

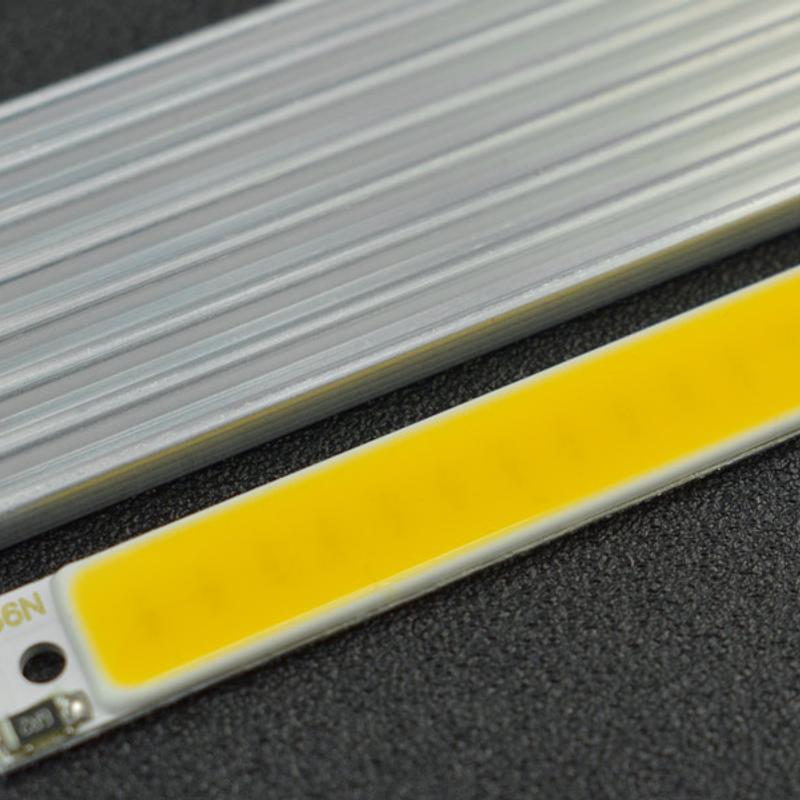

This compact COB LED strip uses 16 LEDs under a silicone encapsulated surface, helping protect the chips while providing a smooth, even warm white light output.
It runs from DC 5V, making it suitable for battery-operated lighting projects and other low-voltage builds. The strip is solderable and can be connected in series or parallel for flexible installation.

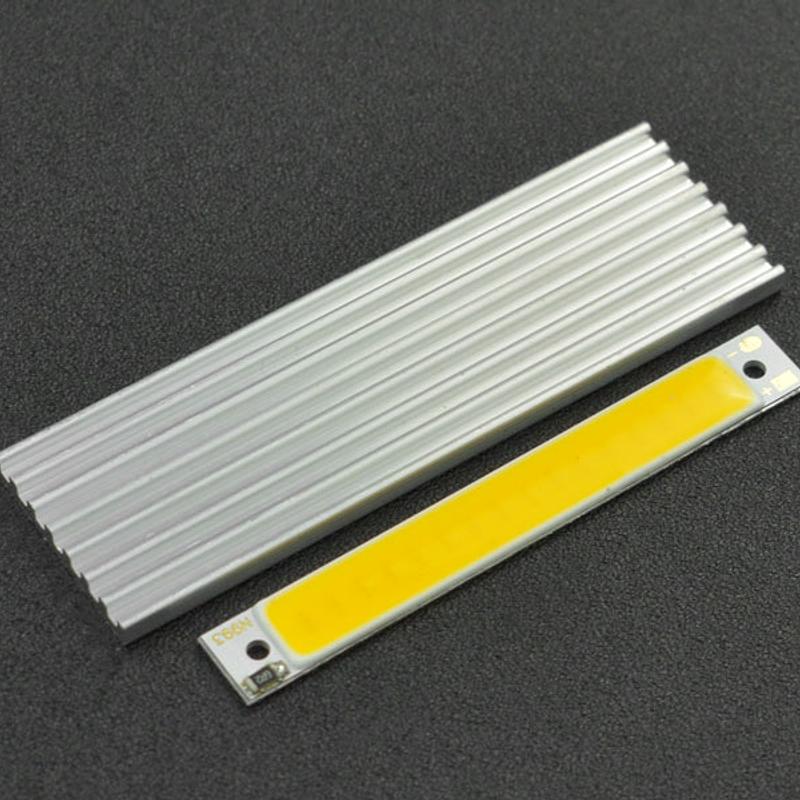

With its small size, high brightness and shadow-free output, it is useful for indoor lighting decoration such as wardrobes, stairs, wine cabinets, bookshelves and room accents. The pack includes 5V COB LED Strip Light- Warm White x1 and Heat Sink x1.

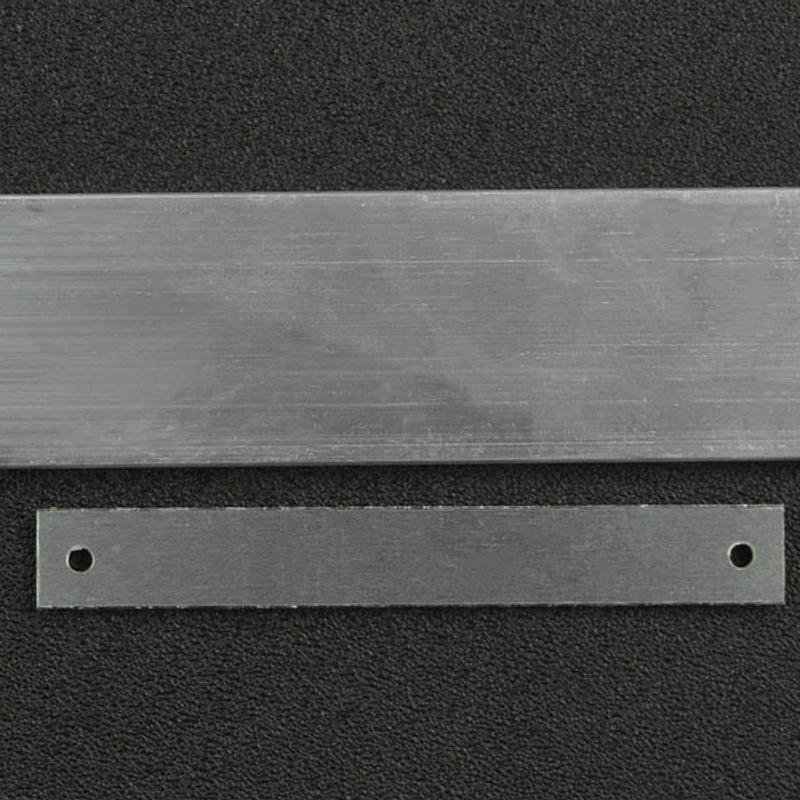

For long-term use, paste the LED strip onto the aluminium heat sink to help prevent light decay or LED bead burnout, as it can get hot during use.
Features:
- 5V power supply
- High brightness, no shadows
- Solderable, can be connected in series and parallel
Specifications:
- Working Voltage: DC 5V
- Working Current: 600mA
- Power: 3W
- Brightness: 300LM
- Luminous Color: warm white 3000k
- LED Strip Size: 60*8*1.7mm /2.36*0.31*0.07 inch
- Heat Sink Size: 70*20*3mm /2.76*0.79*0.12 inch
Jargon buster
Plain-language definitions for the technical terms used above.
- LED
- A light-emitting diode is a small electronic component that lights up when current flows through it in the correct direction. In this kit, LEDs create the flashing effect, so polarity and correct soldering matter for the project to work.
