DFRobot 5V Purple COB LED Strip Light
· MPN: FIT0882
This compact COB LED strip provides smooth purple illumination for decorative lighting, creative electronics builds and small-space accent lighting. It integ...
Get notified when back in stock
This compact COB LED strip provides smooth purple illumination for decorative lighting, creative electronics builds and small-space accent lighting. It integrates 16 LEDs under a silicone-encapsulated surface, helping protect the LED chips while producing a more continuous output than typical dotted LED strips.
The strip runs from a simple 5V DC supply, making it suitable for low-voltage projects, USB-powered lighting setups, portable battery builds and DIY installations. Its chip-on-board construction gives bright, shadow-free light for cabinets, shelves, stairs, display areas and other confined indoor spaces.

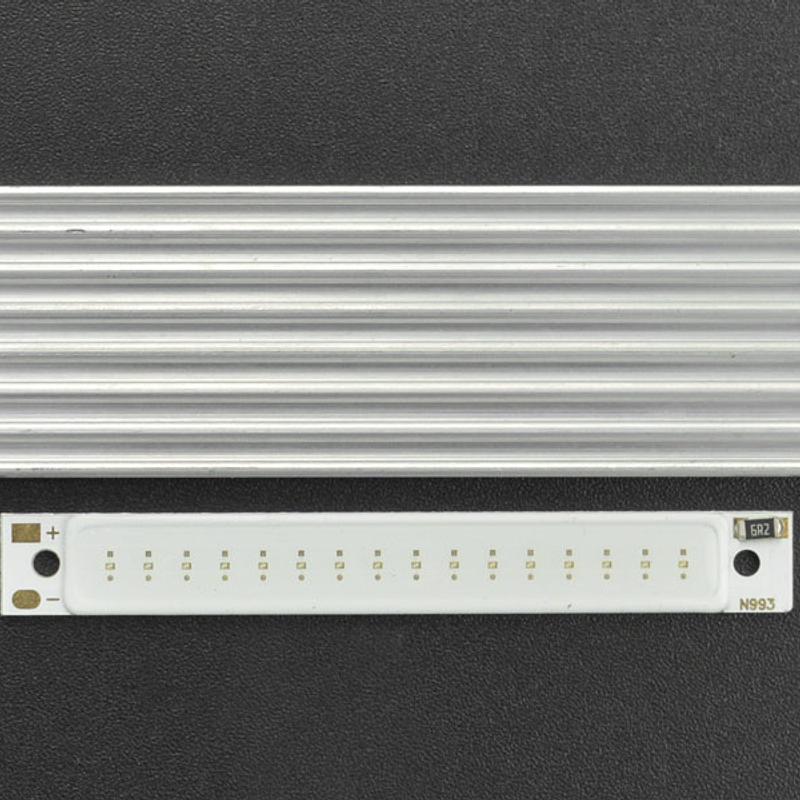

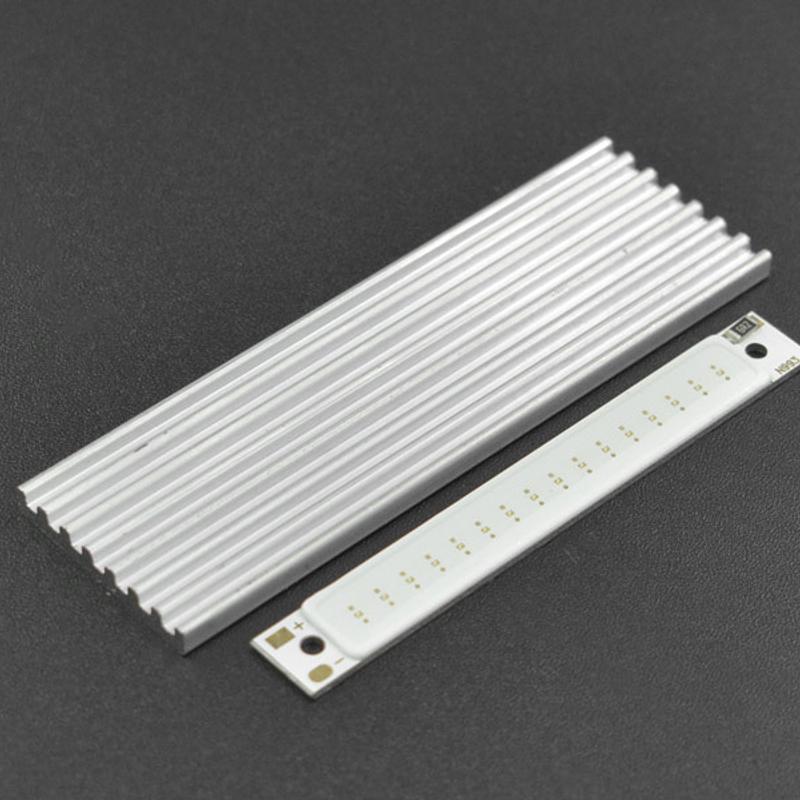

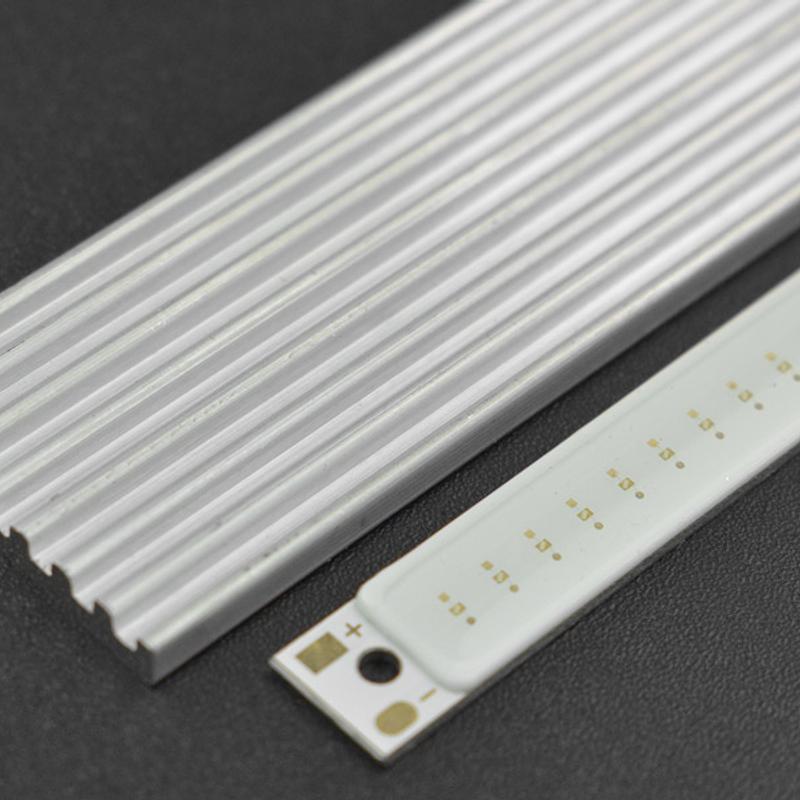

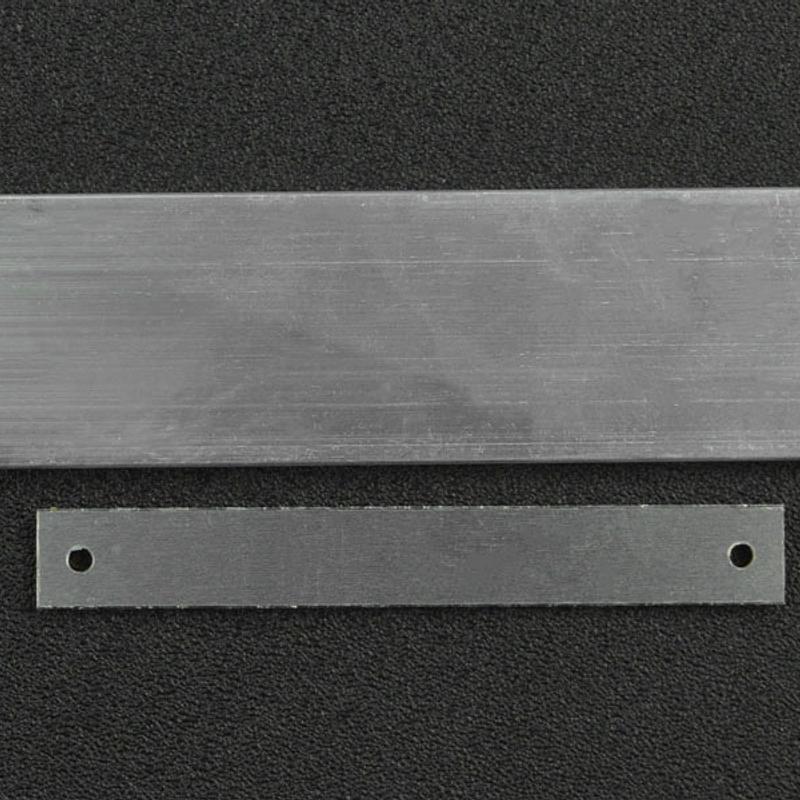

Solderable connections allow the strip to be wired in series or parallel, so multiple strips can be combined for custom layouts. For long-term use, attach the LED strip to an aluminium plate or heat-dissipating surface to reduce heat build-up and help prevent light decay or LED bead burnout. The pack includes one 5V COB LED strip light and one heat sink.
Features:
- 5V power supply
- High brightness with shadow-free illumination
- Solderable connections supporting series or parallel wiring
Specifications:
- Working Voltage: DC 5V
- Working Current: 600mA
- Power: 3W
- Brightness: 300LM
- Luminous Color: purple 400nm
- LED Strip Size: 60*8*1.7mm /2.36*0.31*0.07 inch
- Heat Sink Size: 70*20*3mm /2.76*0.79*0.12 inch
Jargon buster
Plain-language definitions for the technical terms used above.
- DC
- DC means direct current, where electricity flows in one constant direction, as supplied by batteries, USB ports and many plug-pack power supplies. When a product specifies DC, it runs from a DC supply rather than mains AC, so you need to provide the correct voltage and polarity.
- LED
- A light-emitting diode (LED) is a small electronic component that emits light when current flows through it in the correct direction. Because it only conducts one way, its polarity matters, and a through-hole LED must be soldered the correct way around to light up.
