4mm Panel Mount Banana Socket
·
Fully insulated 4mm banana sockets that drop into a 12mm panel hole and sit just 2mm proud of the surface, so the front of a bench supply, breakout panel or ...
Get notified when back in stock

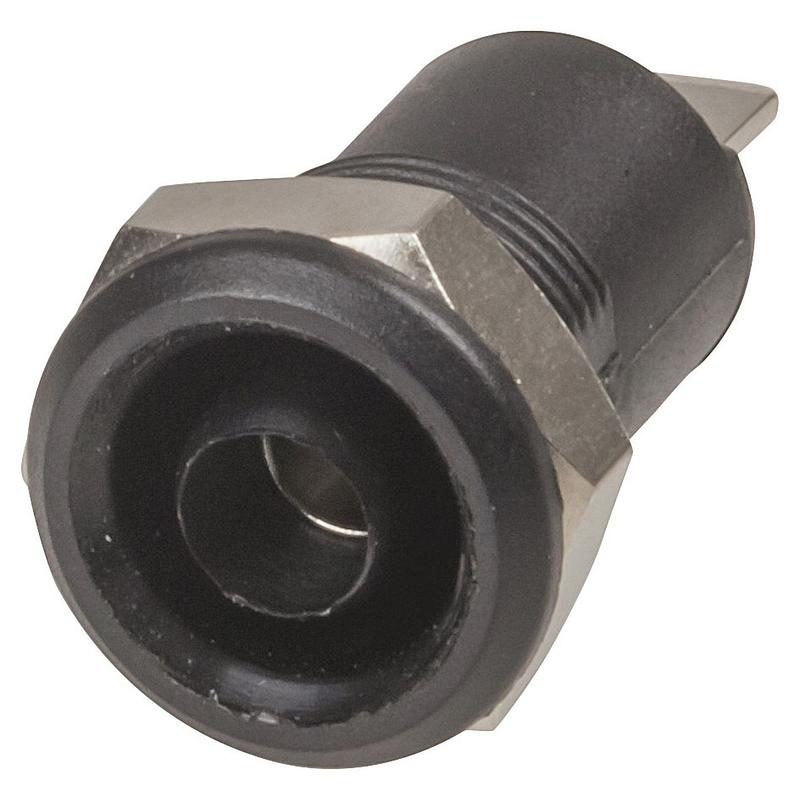

Fully insulated 4mm banana sockets that drop into a 12mm panel hole and sit just 2mm proud of the surface, so the front of a bench supply, breakout panel or test rig ends up looking finished rather than bristling with hardware.
They take standard insulated 4mm banana plugs, and each socket terminates in a solder tag on the back — no crimp tool, no special die. Five colours in the range means power, ground and signal lines can be told apart at a glance on a crowded panel, which is the whole reason colour-coded sockets exist.
Specifications
- Type: 4mm banana socket, standard
- Mounting: panel mount, 12mm hole
- Termination: solder tag
- Rating: 10A at 250VAC
- Profile: projects 2mm above the mounting surface
- Body: fully insulated plastic, metal contact
- Supplied as: 1 socket

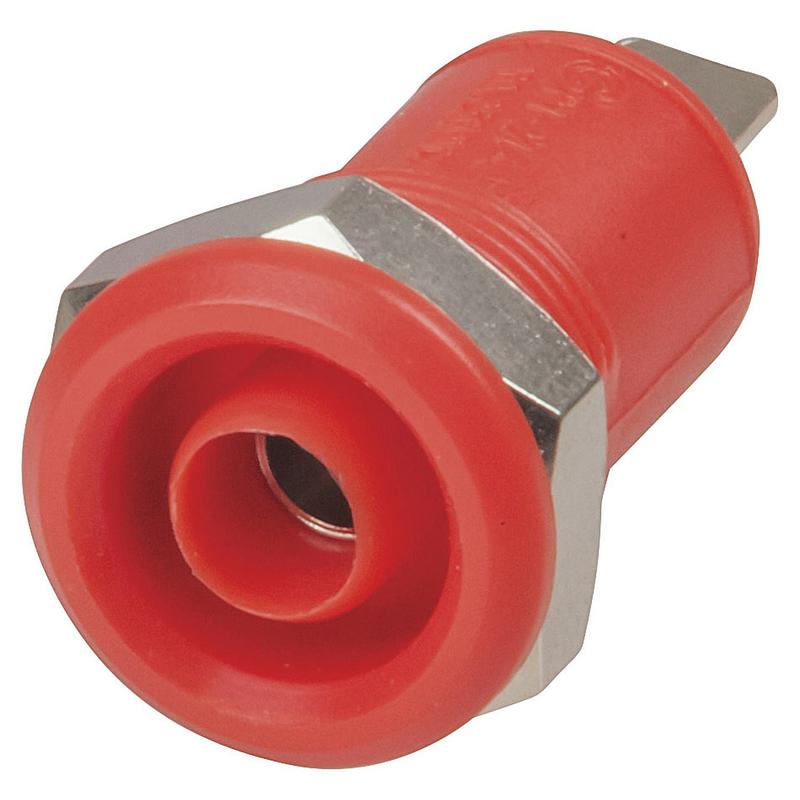

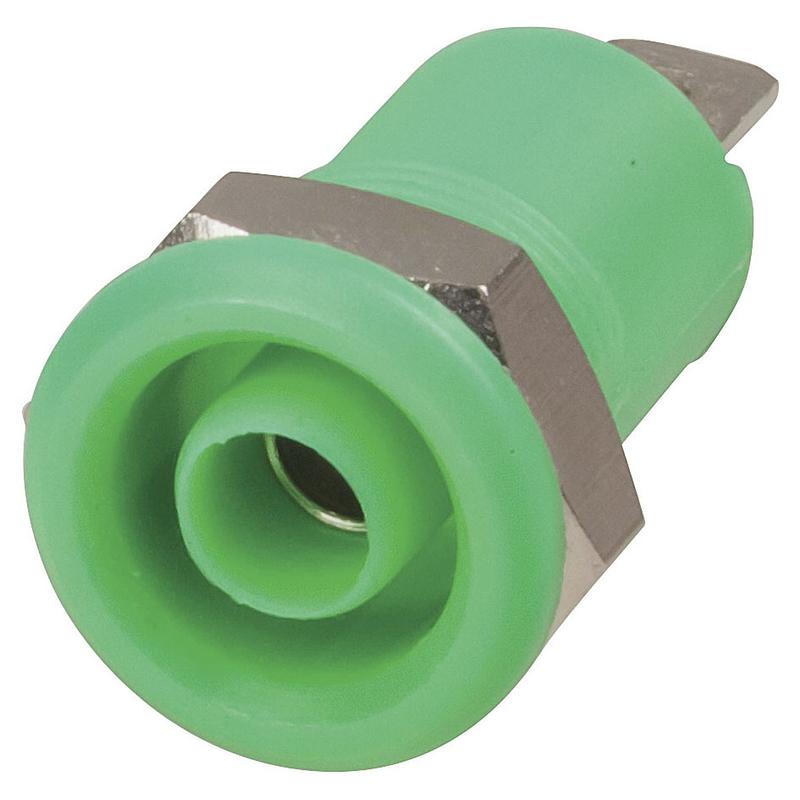

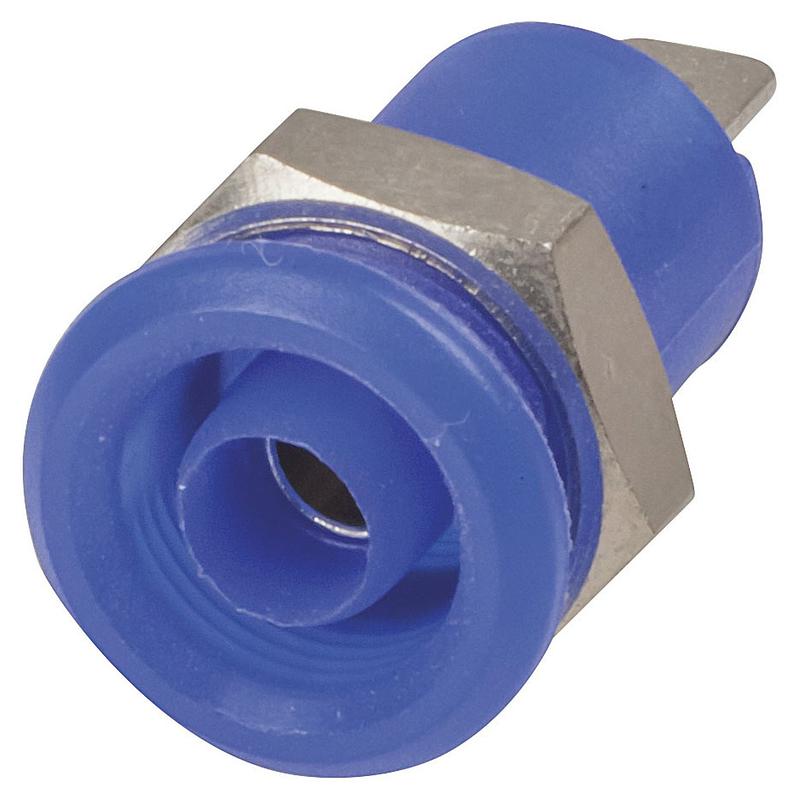

- Colours: red, black, green, blue, yellow
Jargon buster
Plain-language definitions for the technical terms used above.
- breakout
- A breakout board carries a small or fine-pitched component and brings its connections out to standard, breadboard- and header-friendly pins. Describing a part as a breakout means it can be wired into a project without soldering directly to the component's tiny contacts.
