3-Pin LED Strip Connector Cable (5PCS)
A set of five solderless snap-down connector cables for joining 10 mm wide, 3-wire LED strips with a wire bridge between them. Each cable has snap-down conne...
Get notified when back in stock

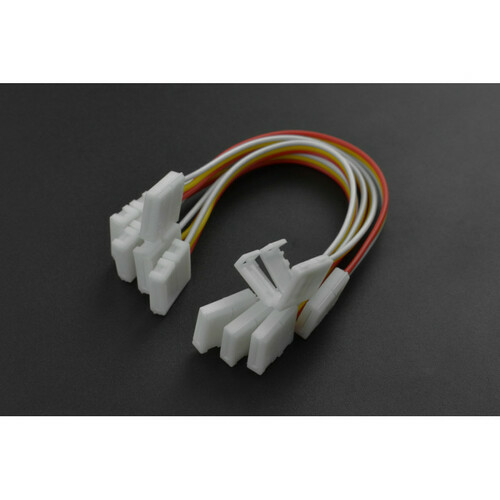

A set of five solderless snap-down connector cables for joining 10 mm wide, 3-wire LED strips with a wire bridge between them. Each cable has snap-down connectors on both ends — simply align the strip's copper pads and snap the cover down for a firm connection. The wire between connectors allows strips to be spaced apart or routed around corners.
For direct strip-to-strip joining without a wire bridge, see the 3-Pin LED Strip Connector (no cable).
Key Features
- Solderless Design – No soldering required to join LED strips
- Dual Snap-Down Connectors – Secure connection on both ends with a wire bridge
- 3-Pin / 3-Wire – Suitable for addressable and single-colour 3-wire LED strips
- Max 5 A Current – Handles typical LED strip power requirements
Specifications
- Compatible Strip Width: 10 mm
- Compatible Strip Thickness: 0.2–0.4 mm
- Max Current: 5 A
- Operating Temperature: −45 to +105°C
- Pins: 3
Ideal For
- Bridging LED strip sections around corners or gaps
- Joining cut sections of addressable LED strips (WS2812B, NeoPixel)
- LED lighting installations requiring flexible routing
Package Contents
- 5× 3-Pin LED Strip Connector Cables
Jargon buster
Plain-language definitions for the technical terms used above.
- LED
- A light-emitting diode (LED) is a small electronic component that emits light when current flows through it in the correct direction. Because it only conducts one way, its polarity matters, and a through-hole LED must be soldered the correct way around to light up.
- NeoPixel
- A type of addressable LED system where colour data is sent along a single digital data line from one LED or controller to the next. Compatibility matters because the timing and signal format must match for the lights or driver board to respond correctly.
- WS2812B
- A smart RGB LED chip with a tiny built-in controller, commonly used in addressable light strips and panels. It matters because many WS2812B LEDs can be chained together and controlled from one microcontroller pin, but they need compatible code and careful power planning as the number of LEDs grows.
