22-Pin 0.5mm Pitch FPC Cable - 20cm - SparkFun Electronics
· MPN: CAB-28304

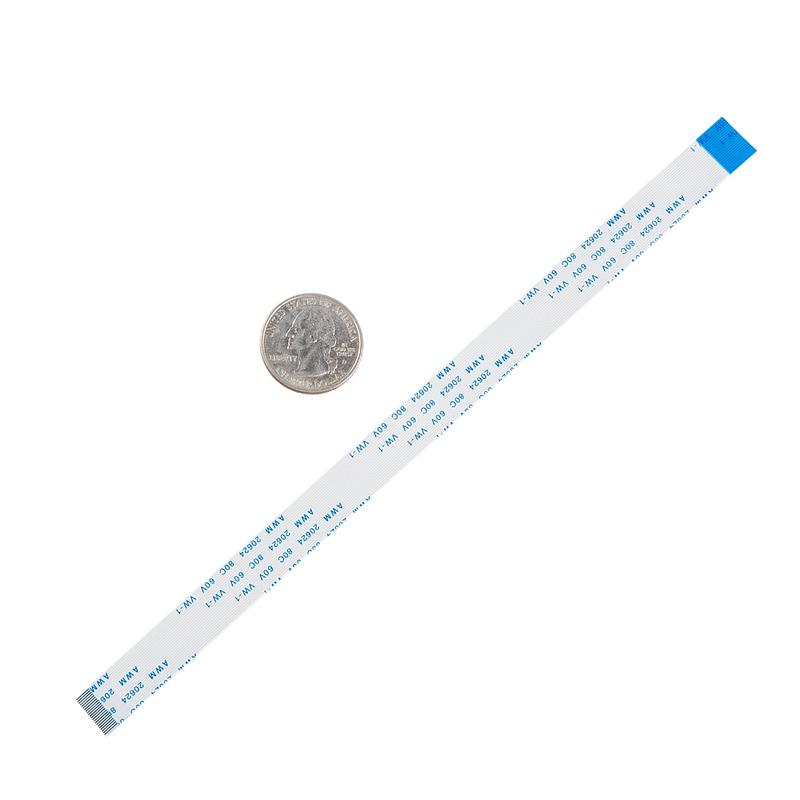

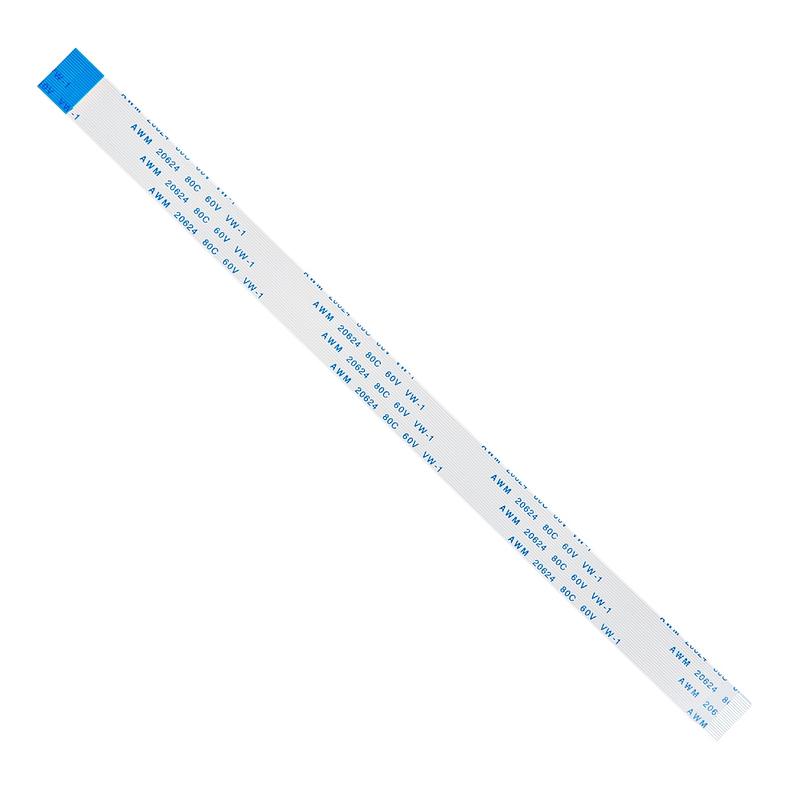

A 22-pin flexible flat cable (FPC) with 0.5mm pitch, 20cm in length. This A-B style cable has matching pin orientation on both ends – pin 1 on one side align...
A 22-pin flexible flat cable (FPC) with 0.5mm pitch, 20cm in length. This A-B style cable has matching pin orientation on both ends – pin 1 on one side aligns with pin 1 on the other – making it straightforward to connect cameras, displays, and other peripherals.
The flexible design allows for easy routing in tight enclosures while maintaining reliable signal integrity.
Key Features
- 22 Pins – Common configuration for cameras and displays
- 0.5mm Pitch – Standard fine-pitch spacing
- 20cm Length – Good reach for most enclosures

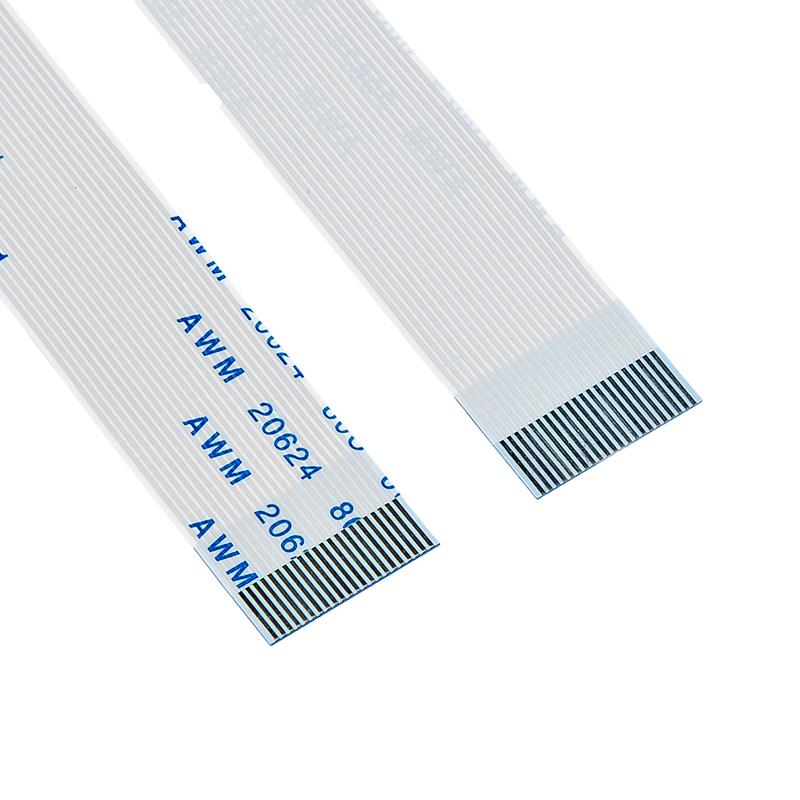

- A-B Style – Same-side contacts, pin 1 to pin 1

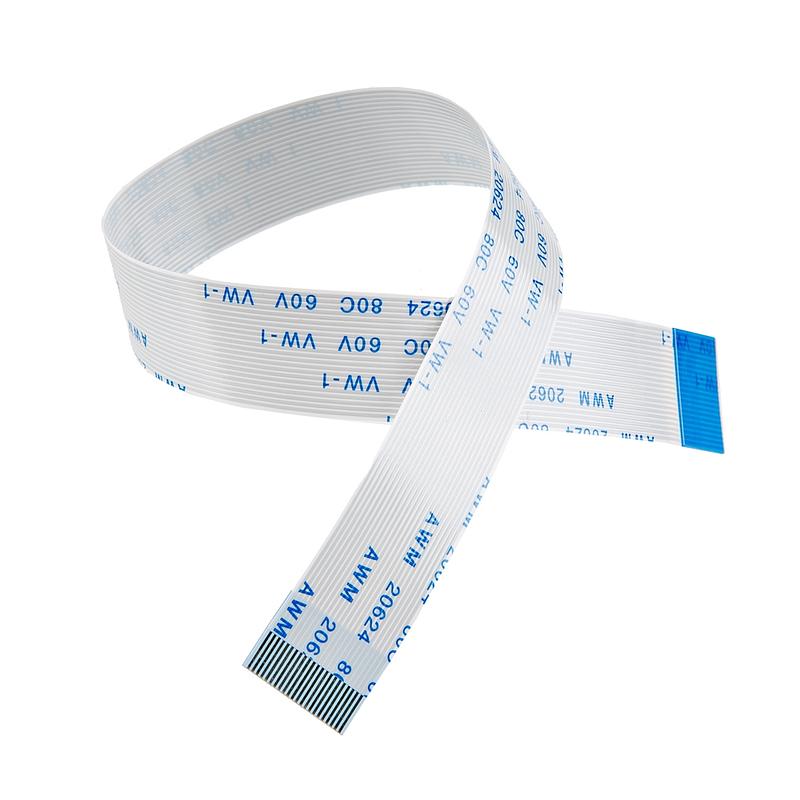

- Flexible – Easy routing around components
Ideal For
- Camera module connections
- Display interfaces
- Raspberry Pi and SBC peripherals
- Custom electronics builds
- Replacement cables
Specifications
- Pins: 22
- Pitch: 0.5mm
- Length: 20cm (200mm)
- Style: A-B (same-side contacts)
- Type: FPC (Flexible Printed Circuit)
Package Contents
- 1× 22-Pin FPC Cable (0.5mm pitch, 20cm)
Jargon buster
Plain-language definitions for the technical terms used above.
- FPC
- FPC stands for flexible printed circuit, a flat flexible cable or connector style often used where space is tight. It matters because this breakout needs the correct pin count and pitch FPC cable to connect reliably to the display or high-speed interface.
