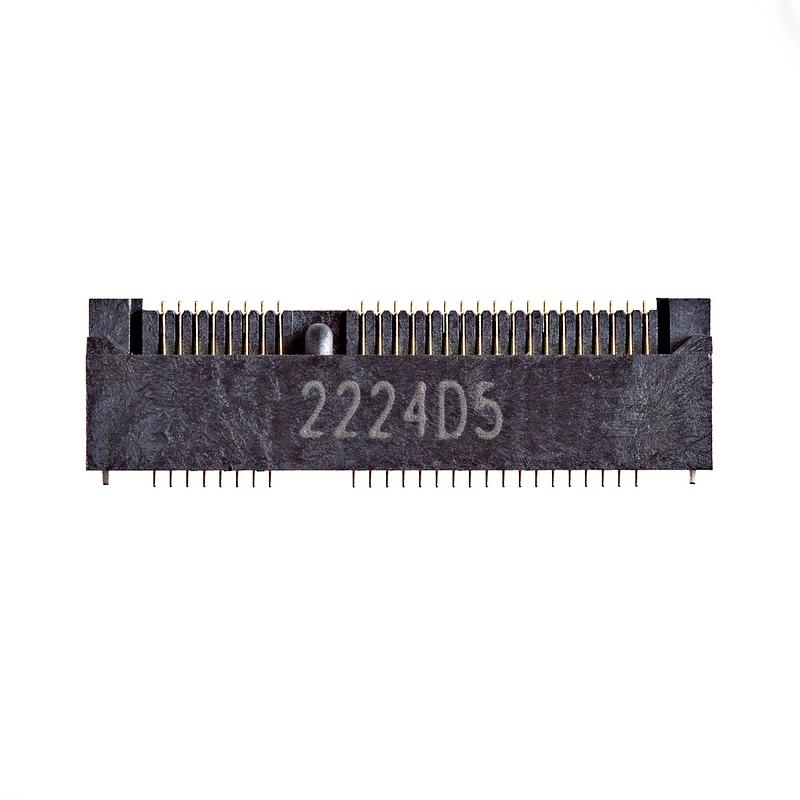

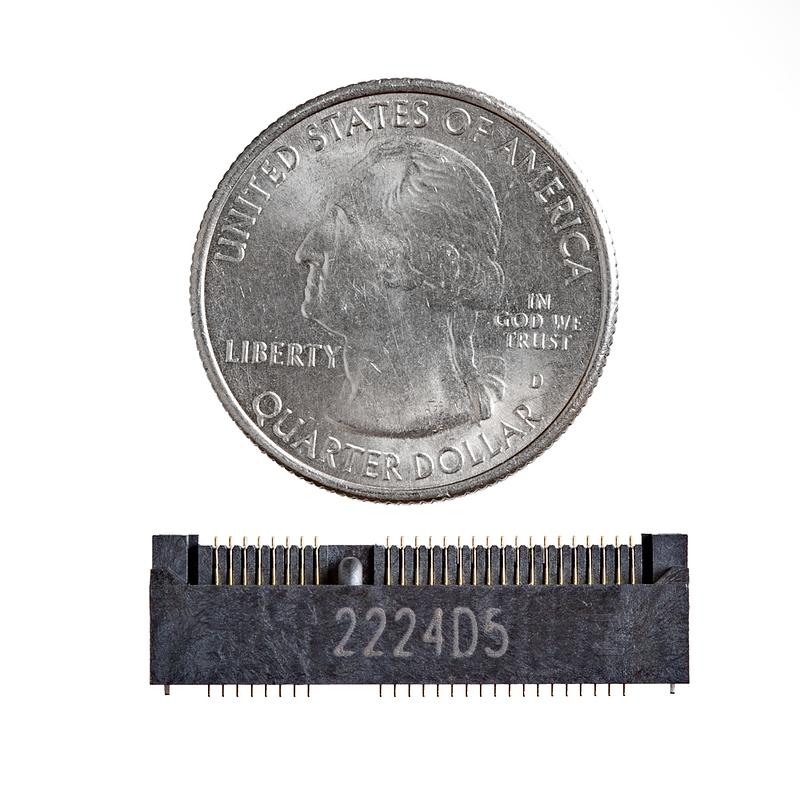

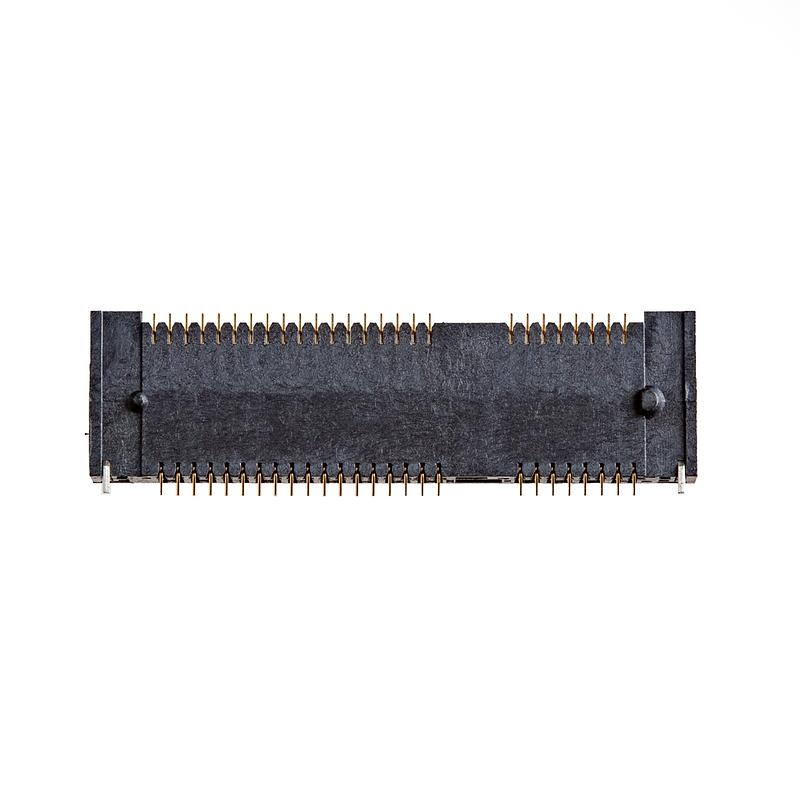

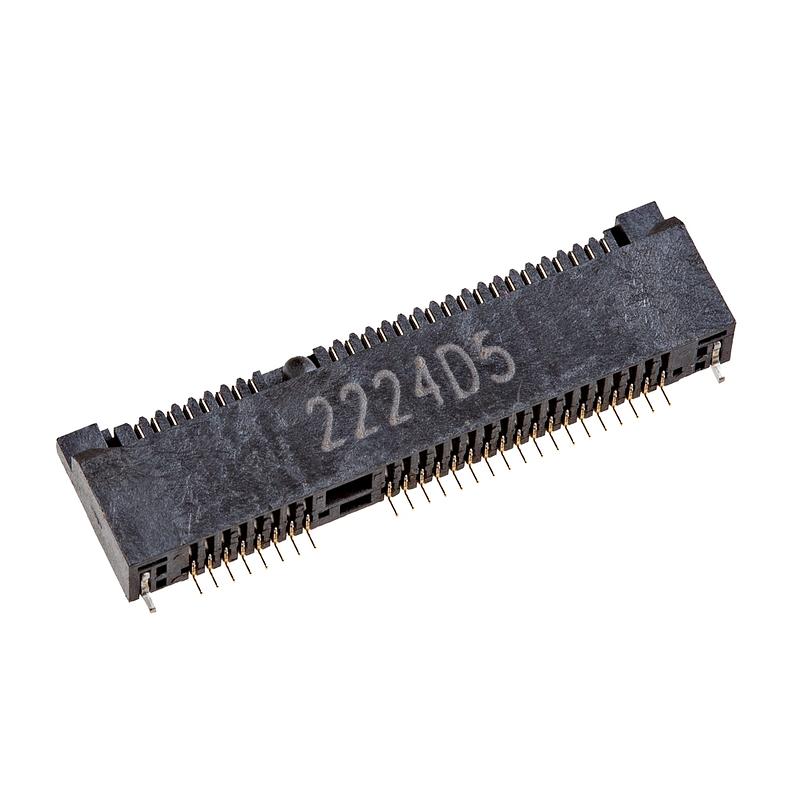

2-in-1 mSATA & PCI Express Mini Card Connector
· MPN: PRT-26987
This 52-pin connector is a 2-in-1 socket for mSATA and PCI Express Mini Card applications. It is supplied as an individual female connector for use on your o...
Get notified when back in stock
This 52-pin connector is a 2-in-1 socket for mSATA and PCI Express Mini Card applications. It is supplied as an individual female connector for use on your own PCB designs.
The connector is designed for surface-mount soldering and includes a board guide to help with card alignment. With a dual read out and 0.80mm pitch, it suits compact designs where a Mini Card style interface is required.
Refer to the datasheet when laying out the PCB footprint and confirming mechanical clearances for your application.
Features:
- Board guide: Helps with card alignment
Specifications:
- Gender: Female
- Number of Positions/Bay/Row: 8;18
- Number of Positions: 52
- Card Thickness: 0.039" (1.00mm)
- Number of Rows: 2
- Pitch: 0.031" (0.80mm)
- Read Out: Dual
- Features: Board Guide
- Mounting Type: Surface Mount
- Termination: Solder
- Contact Material: Phosphor Bronze
- Contact Finish: Gold
- Color: Black
- Operating Temperature: -55°C ~ 85°C
- Material - Insulation: Thermoplastic
- Product Number: 2041119-2
