16x32 RGB LED Panel Driver Shield
An Arduino Uno shield that makes it easy to drive a 16×32 RGB LED matrix panel with a HUB75 connector. Instead of wiring up 12 individual jumper wires, this ...
Get notified when back in stock
An Arduino Uno shield that makes it easy to drive a 16×32 RGB LED matrix panel with a HUB75 connector. Instead of wiring up 12 individual jumper wires, this shield provides a matching 2×8 IDC connector for a clean, reliable connection between your Arduino and the panel.
The shield also includes a DS1307 real-time clock (RTC) chip with a CR1220 coin-cell battery holder, useful for time-based display projects such as clocks and timed animations.
Key Features

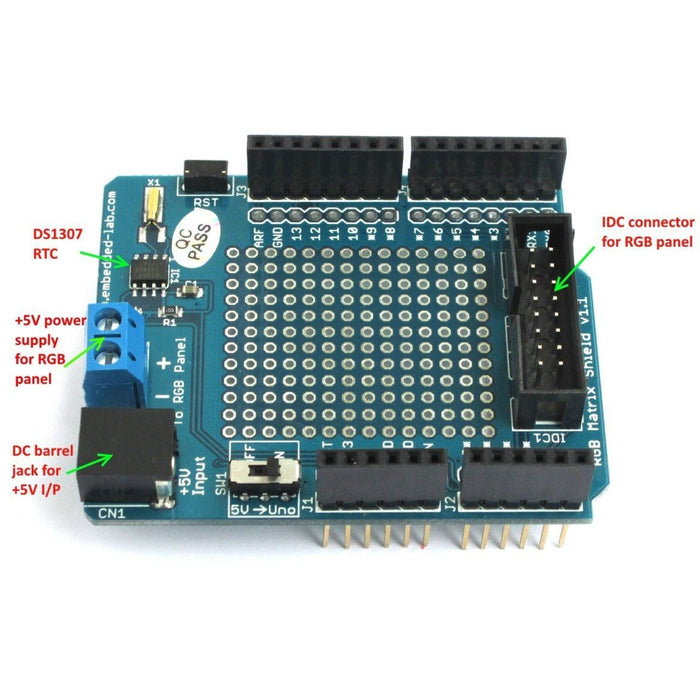

- HUB75 IDC Connector – 2×8 pin header matches the LED panel's input connector
- 12 Digital I/O Pins – Full colour control of the RGB matrix
- DS1307 RTC On-Board – Real-time clock pre-wired to A4 (SDA) and A5 (SCL)
- CR1220 Battery Holder – Keeps the RTC running when power is off
- 5V Operation – Powered directly from the Arduino
- Adafruit Compatible – Works with the Adafruit RGBMatrixPanel library
Ideal For
- Driving 16×32 RGB LED matrix panels from an Arduino Uno
- LED clocks and timed display projects (using the built-in RTC)
- Scrolling text, animations, and colour displays
Package Contents
- 1× RGB LED Panel Driver Shield
