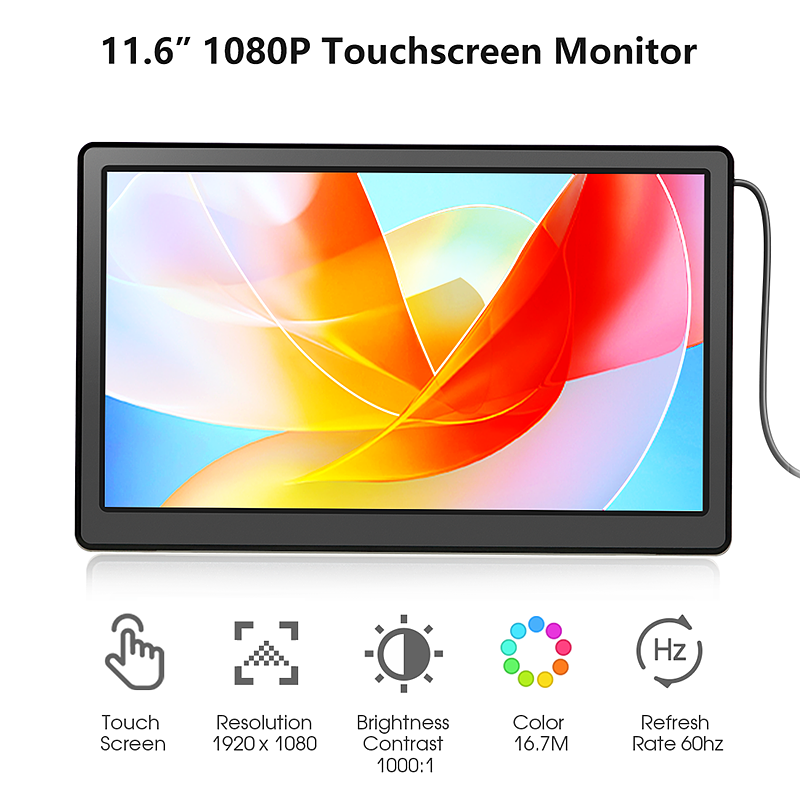

11.6 Inch Touchscreen 1920x1080 IPS Monitor
An 11.6-inch 1920×1080 IPS touchscreen monitor with HDMI and VGA inputs. The 10-point capacitive touch panel is plug-and-play over USB — no drivers required....
An 11.6-inch 1920×1080 IPS touchscreen monitor with HDMI and VGA inputs. The 10-point capacitive touch panel is plug-and-play over USB — no drivers required. Built-in dual speakers, a 3.5mm headphone jack, and a 3.5mm audio input round out the connectivity.
Compatible with Raspberry Pi (3, 4, 5), Jetson Nano, BeagleBone, Windows, macOS, and Linux PCs. The 75×75mm VESA mounting holes allow wall or arm mounting, and the included stand supports desktop use.
Key Features
- 1920×1080 Full HD IPS – Clear images with rich colours
- 10-Point Capacitive Touch – Plug-and-play via USB, no drivers needed
- HDMI + VGA Inputs – Two connection options for flexible setup
- Built-In Dual Speakers – Audio output without external speakers
- 75×75mm VESA Mount – Wall or arm mounting for flexible placement
Specifications
- Screen Size – 11.6 inches
- Resolution – 1920×1080
- Panel Type – IPS
- Touch – Capacitive, 10-point
- Display Colours – 16.7M
- Viewing Angle – 85° (per side)
- Brightness – 220 cd/m²
- Contrast Ratio – 1000:1
- Response Time – 35ms
- Backlight Life – 3000 hours
- Interfaces – HDMI, VGA, USB (touch), 3.5mm headphone out, 3.5mm audio in
- OS Support – Windows, macOS, Linux
- VESA Mount – 75×75mm
- Display Area – 256.3mm × 144.2mm
- Overall Dimensions – 282mm × 177mm × 30mm
- Weight – 790g
- Operating Temperature – −20°C to 70°C
- Storage Temperature – −30°C to 80°C
Ideal For
- Raspberry Pi, Jetson Nano, and BeagleBone projects
- Portable secondary monitor for laptops
- Kiosk and HMI touch interfaces
- Industrial and medical display applications
Package Contents
- 1× 11.6-inch touchscreen monitor
- 1× HDMI cable
- 1× Power supply
- 1× Stand
- 1× User manual
Resources
Jargon buster
Plain-language definitions for the technical terms used above.
- HDMI
- HDMI is a common digital video and audio connection used by computers, media players, and many displays. If a display kit has HDMI input, it is usually much easier to test with a single-board computer because it can act like a normal monitor.
- HMI
- HMI stands for Human-Machine Interface, meaning the screen, buttons, or controls a person uses to interact with a device. For this product, it suggests the display is intended for control panels, dashboards, robot faces, or other user-facing interfaces.
- IPS
- IPS is a type of LCD panel that keeps colours and contrast more consistent when viewed from an angle. This matters for small displays that may be mounted in a dashboard, handheld project, or enclosure where the viewer is not always looking straight on.
