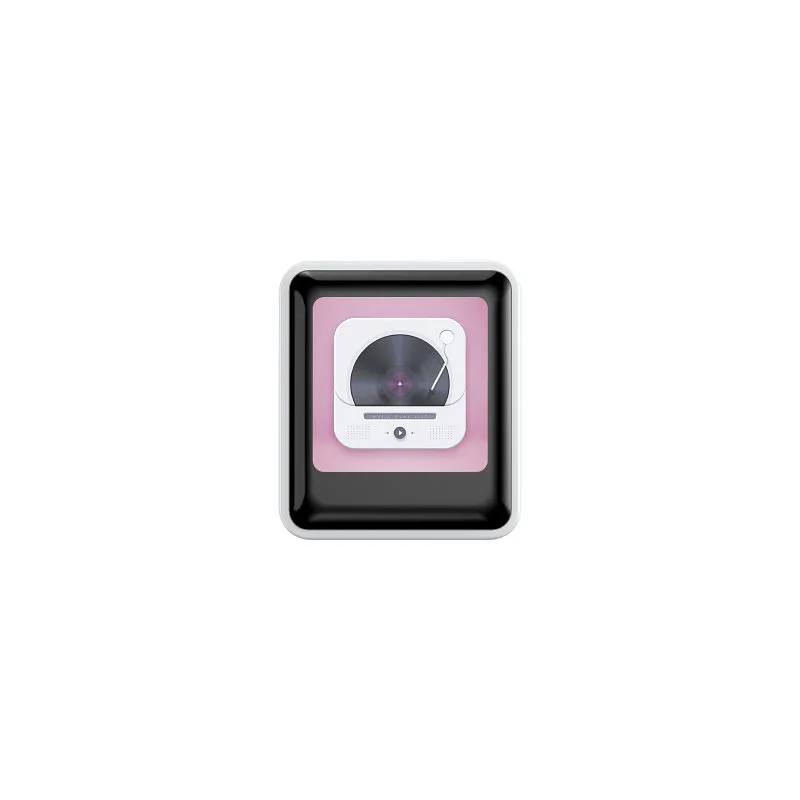

0.85-inch Mechanical LCD ScreenKey, 128 × 128 IPS, SPI
·
Put a changeable colour icon on a physical key with this 0.85-inch Mechanical LCD ScreenKey. Its IPS display has a 128 × 128 resolution and uses a 4-wire SPI...
Get notified when back in stock
Put a changeable colour icon on a physical key with this 0.85-inch Mechanical LCD ScreenKey. Its IPS display has a 128 × 128 resolution and uses a 4-wire SPI interface.
Specifications
- Panel type: IPS LCD
- Resolution: 128 × 128 pixels
- Display colour: 65K colours
- Display size: 15.21 × 15.21 mm
- Pixel size: 118.8 × 118.8 μm
- Display interface: 4-wire SPI
- Control IC: ST7735
- Operating voltage: 3.3 V
Key features
The display sits in a mechanical key housing, with a flexible ribbon extending from the rear. Its full-colour screen can show icons or labels that change with your project.
Typical uses
Suitable for custom control panels, macro-key projects and interfaces that need a physical key with a changeable on-key graphic.
Jargon buster
Plain-language definitions for the technical terms used above.
- IPS
- IPS is a type of LCD panel that keeps colours and contrast more consistent when viewed from an angle. This matters for small displays that may be mounted in a dashboard, handheld project, or enclosure where the viewer is not always looking straight on.
- LCD
- LCD stands for liquid crystal display, a screen technology that uses a backlight and liquid crystals to show images or text. It matters because LCD modules usually need a display driver and enough controller pins or a bus interface to send image data.
- SPI
- A fast serial communication bus often used for displays, memory cards, and sensors. It matters because SPI devices need specific pins for clock and data, plus a separate chip-select line for each device.
