Resources & procurement

Crack the Code — kit, BoM & downloads

Everything you need to buy, quote and distribute this unit. The teaching content lives elsewhere — this page exists so that prices, cart actions and downloads stay out of the student and presentation flows.

For a class — buy the classroom pack

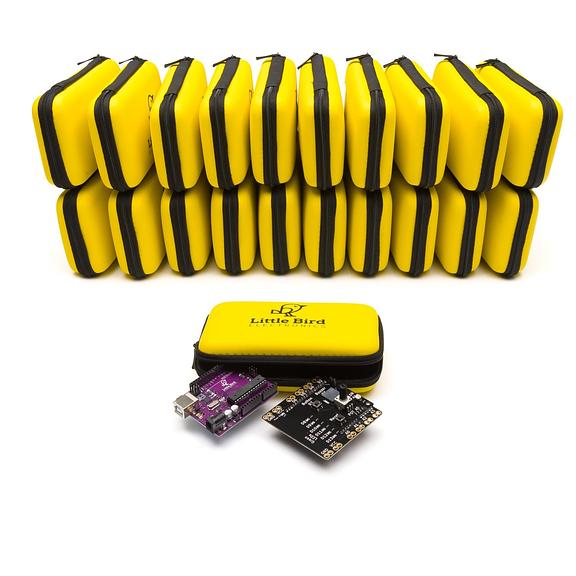

Crack the Code Arduino with Crack the Code Shield and Case

1 pack = 21 complete kits (board, Crack the Code shield, case & USB cable each). One pack covers up to 21 students; 2 packs (42 kits) cover a class of ~30 with spares.

$956.49/ pack of 21 ≈ $45.55 per kit

Product page

Single kit — sample, top-ups & replacements

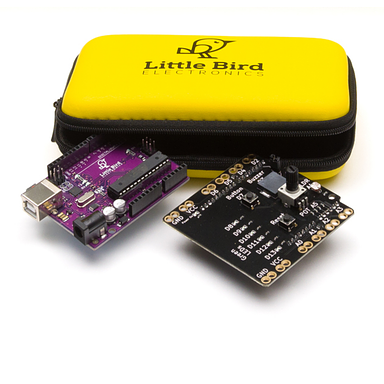

Single Crack the Code Arduino with Crack the Code Shield and Case

$50.60 each

Same kit as one of the 21 in the pack — order it on its own for an evaluation sample, a lost component, or to make up an odd class size.

Product page

For purchase orders, email sales@littlebirdelectronics.com.au — include the unit name and student count.

Bill of materials

3 lines

Core (2)

qty shown per class of 30

Single Crack the Code Arduino with Crack the Code Shield and Case
LB-CTCSINGLE · 1 per student

One Crack the Code Arduino kit per student — a Little Bird Arduino R3 board, the Crack the Code (ThinkerShield) board, a storage case and a USB A-to-B cable. Everything needed for the four PRP activities and the design project; the shield's on-board LEDs, button, potentiometer, LDR and buzzer mean students can start coding without first wiring a circuit. Also the part to re-order for replacements.

×30

$50.60
In stock
Crack the Code Shield
LB-CTCTHINK · 1 per student

×21

$21.50
In stock

Shared classroom (1)

qty shown per class of 30

Crack the Code Arduino with Crack the Code Shield and Case
LB-CTCYELLOW · 0 per student

Classroom replenishment pack — 21 complete kits in one box (21× Little Bird Arduino R3, 21× Crack the Code Shield, 21× storage case, 21× USB A-to-B cable). Cheaper per kit than buying singles — buy one pack per 21 students (round up); 2 packs cover a class of ~30 with spares. Top up with single kits as needed.

×2

$956.49
In stock

About the kit

Every student needs a Crack the Code Arduino kit — an Arduino-compatible Uno board, the MAAS ThinkerShield (with on-board LEDs, a button, a potentiometer, an LDR and a piezo buzzer), a USB cable and a project case. The ThinkerShield means students can start coding inputs and outputs without first wiring a circuit; for the final builds we add LEDs, 220 Ω resistors, jumper leads, breadboards, push buttons, piezo buzzers, an LDR, copper tape and battery holders.

Downloads

BoM as CSV

Drop into a quote / PO request

Print / PDF folio

Lesson plan + activities, print-ready

For school procurement

We accept purchase orders from Australian schools and universities; net-30 terms apply.
Quotes include line-item GST and freight; request via sales@littlebirdelectronics.com.au.
Bulk pricing is available on class-of-30 orders — we'll send a tailored quote on request.
Replacement parts (consumables, lost components) are stocked individually.
