Headers & Connectors

SKU: AF-383 | Brand: Adafruit

A 40-pin Zero Insertion Force (ZIF) socket for DIP chips up to 0.6″ wide. The lever-operated mechanism allows chips to be inserted and removed without bending pins, making it ideal for chip programmers, testing, and a...

SKU: TB-HM3173 | Brand: Little Bird

A 3-way PCB-mount screw terminal block with 5 mm pitch. Solder it to a PCB and connect wires using the screw terminals — ideal for any situation where wires need to leave a circuit board. The interlocking design allow...

SKU: SF-PRT-10550 | Brand: SparkFun

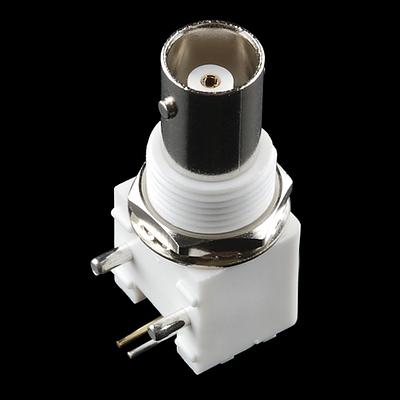

BNC connectors are ideal for quick connects to audio coax and high-frequency signal lines. This is a right-angle connector and comes with a lock washer and nut. Documents: Dimensional Drawing

SKU: PL-1915 | Brand: Pololu

These 2×7-pin crimp connector housings let you quickly build custom cables that mate with standard 0.1" (2.54mm) spaced connectors. Pair them with pre-crimped terminal wires to create reliable, removable fourteen-wire...

SKU: AF-3342 | Brand: Adafruit

This 2×40 right-angle edge connector fits directly onto the bottom edge contacts of the BBC micro:bit, providing access to all GPIO pins, power, and ground connections. The right-angle design is ideal for mounting on ...

SKU: SF-PRT-12791 | Brand: SparkFun

This is a 2x23 pin male PTH header. This piece is in the common configuration for Beaglebone Black headers that can be broken apart to form smaller header formations. Each pin has a spacing of 0.1" in between each oth...

SKU: AF-610 | Brand: Adafruit

A panel-mount DC barrel jack that accepts standard 2.1 mm power plugs. The extra-long threaded body fits panels up to 8 mm thick (5/16″), making it suitable for wooden enclosures and thicker project boxes — not just s...

SKU: DF-FIT0428 | Brand: DFRobot

The ECell Breadboard-Plugin Connector is a reusable adapter that lets you plug common components neatly into a solderless breadboard. Gold-plated 0.64 mm pins perfectly match standard breadboard tie-points for reliabl...

SKU: SF-PRT-10114 | Brand: SparkFun

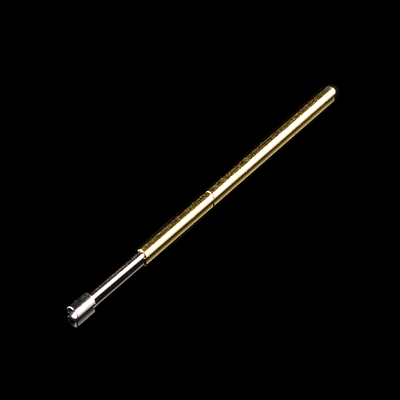

These 33mm (1.3") spring loaded pogo pins are great for programming and applications where you don’t always want headers soldered onto your boards. We use them for our programming jigs in production. The pins fit snug...

SKU: AF-1992 | Brand: Adafruit

Connect your own PCB to a Raspberry Pi B+ with this extra-tall female header. The female header part has extra spaces to make it 16.5mm tall: when placed on your Pi, a PCB will clear the Ethernet and USB ...

SKU: TB-PS0376 | Brand: Little Bird

A 4-pin mini DIN panel-mount socket (S-Video / S-VHS type) with nickel-plated copper construction. The socket requires a 10mm panel cutout and uses solder tag termination for secure, permanent connections. Specificat...

SKU: TB-PS0406 | Brand: Little Bird

4mm Panel Mount Sockets to suit Banana plugs. Specifications Plug or Socket Type Banana 4mm (standard) Pack Quantity ...

SKU: PL-1023 | Brand: Pololu

A 2×3-pin (6-pin) female header with standard 0.1" (2.54mm) spacing. This compact dual-row header is commonly used for ISP programming connections, small sensor breakouts, and custom cable assemblies. The 2×3 configu...

SKU: SF-BOB-29195 | Brand: SparkFun

This compact breakout board makes it easy to work with a male DE9 connector, commonly referred to as DB9. It brings the connector out to a maker-friendly plated through-hole header, so you can wire it into prototypes,...

SKU: SF-BOB-29196 | Brand: SparkFun

This compact breakout board makes it easy to bring a female DE9 connector, often called DB9, onto a breadboard or into a custom wiring harness.All nine connector pins are broken out to 0.1in-spaced plated through-hole...

SKU: SF-BOB-17110 | Brand: SparkFun

USB-C is handy for modern projects, but its 24 tiny, tightly spaced pins are not friendly to hand soldering or quick prototyping. This breakout board routes the essential USB-C connections out to a standard 0.1" (2.54...

SKU: SF-PRT-17907 | Brand: SparkFun

This header kit gives you the solderable pins needed to connect a Raspberry Pi Pico to a breadboard or another circuit. It includes the matching header set for the Pico layout, making it a straightforward option for p...

SKU: SF-PRT-28008 | Brand: SparkFun

This header set gives you the female headers needed to populate the prototyping area on an Alchitry Br Wide V2 Board. It includes four 2x14 headers and two 2x6 headers, all with 0.1"-spaced pins.The headers line up wi...

SKU: SF-PRT-08230 | Brand: SparkFun

This male polarised header is made for perfboard and PCB projects where you want a connector that can only be plugged in the correct way around.It is suitable for power connections, sensors, and general-purpose wiring...

SKU: SF-PRT-18986 | Brand: SparkFun

This is a simple 3-pin male right-angle header for through-hole PCB mounting. It is handy when you need pins to exit sideways from a board instead of straight up.The header uses the standard 0.1in pin spacing, making ...
