SKU: AF-1675

A 150mm IDC ribbon cable with 10-pin 2×5 socket connectors at 1.27mm (0.05") pitch on both ends. Designed for SWD (Serial Wire Debug) programming and debugging connections commonly found on ARM Cortex development boards. Key Features 1.27mm (0.05") Pitch – 2×5 box header connectors on both end...

SKU: SF-CAB-15364

A 150mm (~6") 10-conductor ribbon cable with 2×5 pin female connectors on both ends, using standard 1.27mm (0.05") pitch. Ideal for SWD (Serial Wire Debug) and JTAG connections between debug probes and target boards. Specifications Length – 150mm (~6") Conductors – 10 Connectors – 2×5 pin fe...

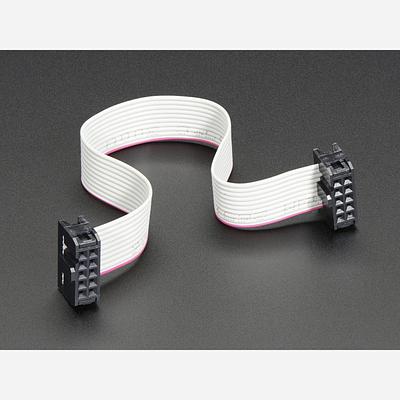

SKU: AF-370

A 6" (150mm) IDC ribbon cable with 10-pin 2×5 socket connectors on both ends at standard 2.54mm (0.1") pitch. Commonly used for AVR ISP programming, JTAG connections, and other 10-pin box header interfaces. Key Features 10-Pin (2×5) – Standard box header socket connectors on both ends 2.54mm ...

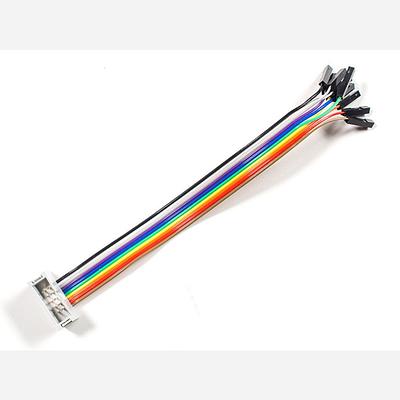

SKU: AF-1199

A breakout cable with a 10-pin IDC socket connector on one end and individual 0.1" female socket pins on the other, connected by 6 inches (150mm) of colour-coded rainbow ribbon cable. Useful for breaking out 10-pin headers to individual connections on a breadboard or test setup. Key Features 1...

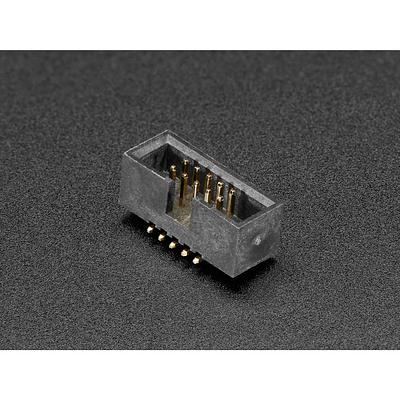

SKU: AF-752

This 1.27mm pitch, 2x5 male SMT Box Header is the same one used on our SWD Cable Breakout Board. The header alone is great if you want to incorporate this piece of hardware with your own software. We're specifically selling it so you can solder it onto our nRF52 Feather to add SWD debu...

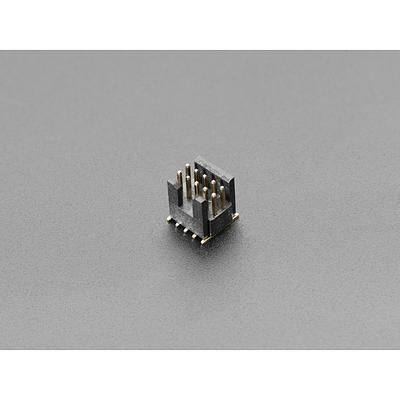

SKU: AF-4048

A compact 1.27 mm (0.05") pitch 2×5 mini SWD box header with a half-shroud and key-notch. A smaller alternative to full-shroud SWD headers, taking up much less board space while remaining compatible with standard 10-pin 1.27 mm IDC (SWD) cables. Commonly found on ARM Cortex development kits, thi...

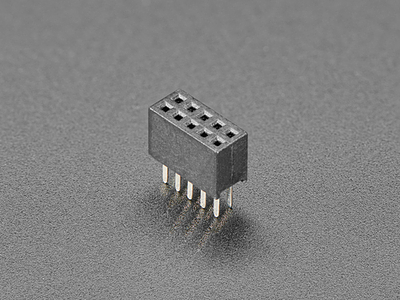

SKU: AF-5327

A compact 0.05" pitch (1.27mm) thru-hole female socket header in a 2×5 (10-pin) configuration. Originally designed for use with the PM2.5 Air Quality Sensor (PMSA003I) and its breakout board, this header is also handy for your own sensor and prototyping projects. These headers match standard SWD...

SKU: AF-2102

This 2×5 (10-pin) IDC breadboard helper makes it easy to connect standard 10-pin IDC ribbon cables to a breadboard or Perma-Proto board. The two-piece design consists of a pin-through socket that straddles the centre of a breadboard and a male header that plugs into the top of the socket. A prac...

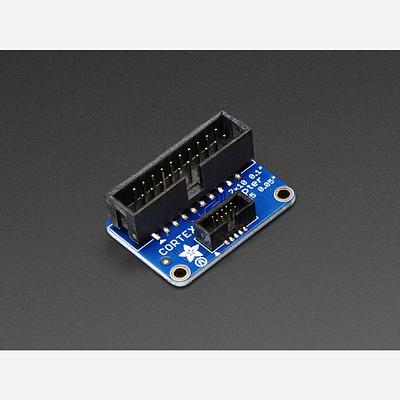

SKU: AF-2094

This adapter board is designed for adapting a 'classic' 2x10 (0.1"/2.54mm pitch) JTAG cable to a slimmer 2x5 (0.05"/1.27mm pitch) SWD Cable.  It's helpful for using products like the JTAGulator or SEGGER J-Link with tiny boards that use the 10-pin SWD programming connector. This ...

SKU: SF-PRT-08535

This 2×5 (10-pin) IDC ribbon cable with 2.54 mm pitch connectors is commonly used for AVR ISP programming and general-purpose communication between boards. The cable is 6 inches (approximately 15 cm) in length. Key Features 10-Pin (2×5) – Standard AVR ISP programming pinout IDC Connectors – K...

SKU: SF-PRT-15363

A compact 2×5 pin female through-hole header with 1.27 mm (50 mil) pitch. This is the standard configuration used for JTAG and SWD debugging connections on microcontroller boards. Specifications Configuration – 2×5 (10 pins total) Gender – Female Pitch – 1.27 mm (50 mil) Mounting – Through-...

SKU: SF-CAB-09556

This is an interface cable for the Bus Pirate, designed to connect to its 2x5 I/O header. The cable’s connector is composed of two rows of five 0.1" spaced pins; it’s also polarized, as is the mating connector on-board the Bus Pirate, so you can only connect the cable in one direction. The lea...

SKU: TB-PP1150

A right-angle 10-pin IDC box header for PCB mounting, with a locking mechanism to secure ribbon cable connections. The 2.54mm (0.1") pitch double-row header features gold-plated pins and solder-tag attachment. Specifications Type – Double-row box header (plug) Pins – 10 (2×5) Pin Spacing – 2...

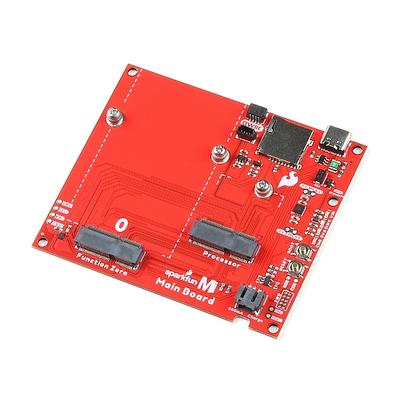

SKU: SF-DEV-20748 · MPN: DEV-20748

This single-board carrier lets you connect one MicroMod Processor Board to one MicroMod Function Board using SparkFun’s M.2-based MicroMod ecosystem. Align the keyed edge connector, fasten the boards with screws, and you can swap processors or functions to suit your project.The board provides USB...

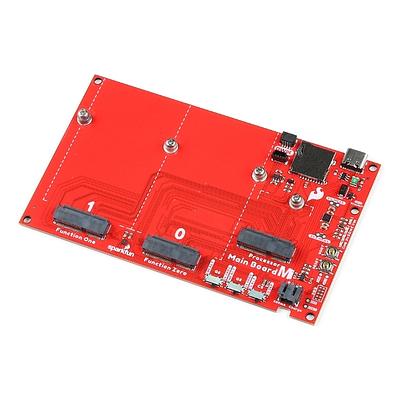

SKU: SF-DEV-20595 · MPN: DEV-20595

This Double Main Board is a carrier for SparkFun’s MicroMod ecosystem, letting one MicroMod Processor Board connect to up to two MicroMod Function Boards. The M.2 MicroMod connectors make it straightforward to align the keyed edge connectors and secure the boards with screws.USB-C is provided for...

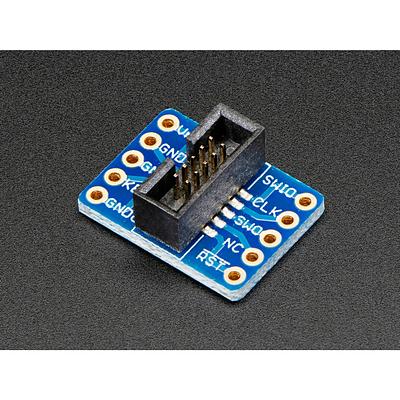

SKU: AF-2743

This adapter board is designed to make it easier to use ARM dev boards that use slimmer 2x5 (0.05"/1.27mm pitch) SWD cables for programming.  It's helpful for using products like the JTAGulator, STLink or SEGGER J-Link with tiny boards that use the 10-pin SWD programming connector, often ...

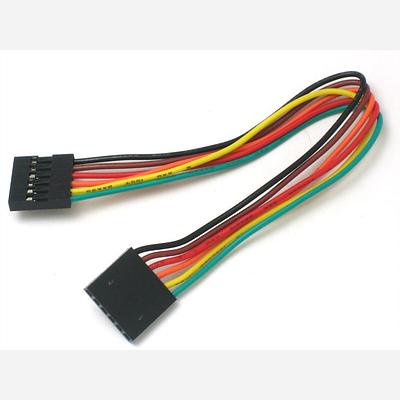

SKU: AF-206

A 150mm (6″) jumper cable with 6 conductors at 0.1″ (2.54mm) spacing. Features female socket connectors on both ends for quick plug-in connections to header pins. Key Features Socket-to-Socket – Female connectors on both ends 6 Conductors – 0.1″ (2.54mm) pitch spacing 150mm Length – Compact ...

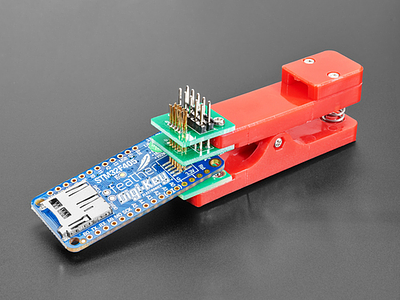

SKU: AF-5434

The Pogo Pin Probe Clip with 2x5 0.05" pitch SWD spacing is a great way to test and connect with pin-point accuracy without soldering! It's sort of like an alligator clip with an array of built-in springy pogo pins - so you can connect to a PCB with classic 'SWD' pad holes, without...

SKU: SF-PRT-10650

These 2x5 crimp connectors can be snapped onto 10-wire ribbon cable to make your own cable assemblies and keep your connections organized. Simply press the connector onto your ribbon cable, no soldering required, which makes it easy to add as many mid-cable connectors as you need.

SKU: SF-PRT-08506

A 2×5 (10-pin) shrouded box header on standard 0.1" (2.54 mm) pitch. The keyed shroud prevents reversed cable connections, making it ideal for programming headers, data buses, and other multi-pin interfaces. Key Features Shrouded & Keyed – Polarised housing prevents incorrect cable orientation...
